CAA-RF 0,8x Reducer/Field-Flattener for LS80MT, LS100MT & LS130MT
This reducer/field-flattener shortens the focal length by a factor of 0.8x and flattens the field of view for deep-
sky astrophotography with the LS80MT, LS100MT and LS130MT series telescopes from Lunt Solar
Systems.

Scope of delivery:

- CAA-RF 0,8x Reducer/Field-Flattener
- Adapter to M68x1
- Adapter to M63x1
- Dust caps
Please note:
This reducer/field-flattener is suitable for photography only. It cannot be used for visual observations.
The reducer/field-flattener is suitable for astrophotography at night only, it cannot be used for H-alpha solar
photography.

Installing the Reducer/Field-Flattener

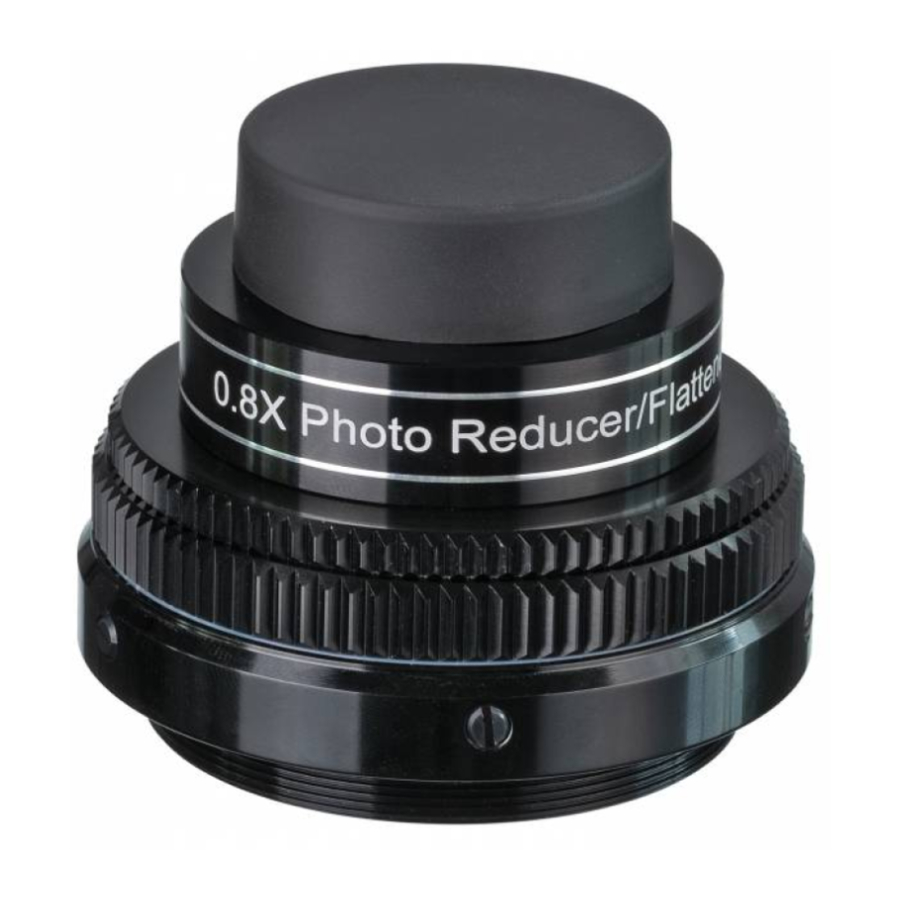

The package contains the reducer/field-flattener with screwed-on
adapters and attached dust caps. Once you have removed the
dust caps, the adapter rings can be unscrewed.
On the upper side of the reducer/field-flattener is the T2 male
thread for the connection of the camera and additionally a
M39x0.75 female thread.
On the lower side of the reducer/field-flattener is the 2 inch socket
and a M54x0.75 male thread for connection to the telescope.
Manual
If other threads are required for connection to the telescope, the flat
adapter ring can first be screwed onto the M54x0.75 thread of the
reducer/field-flattener. Then an M68x1 male thread is provided on the
telescope side.
