Camtree Hunt CH-BMUM-SK Assembly Manual

Camera cage shoulder kit

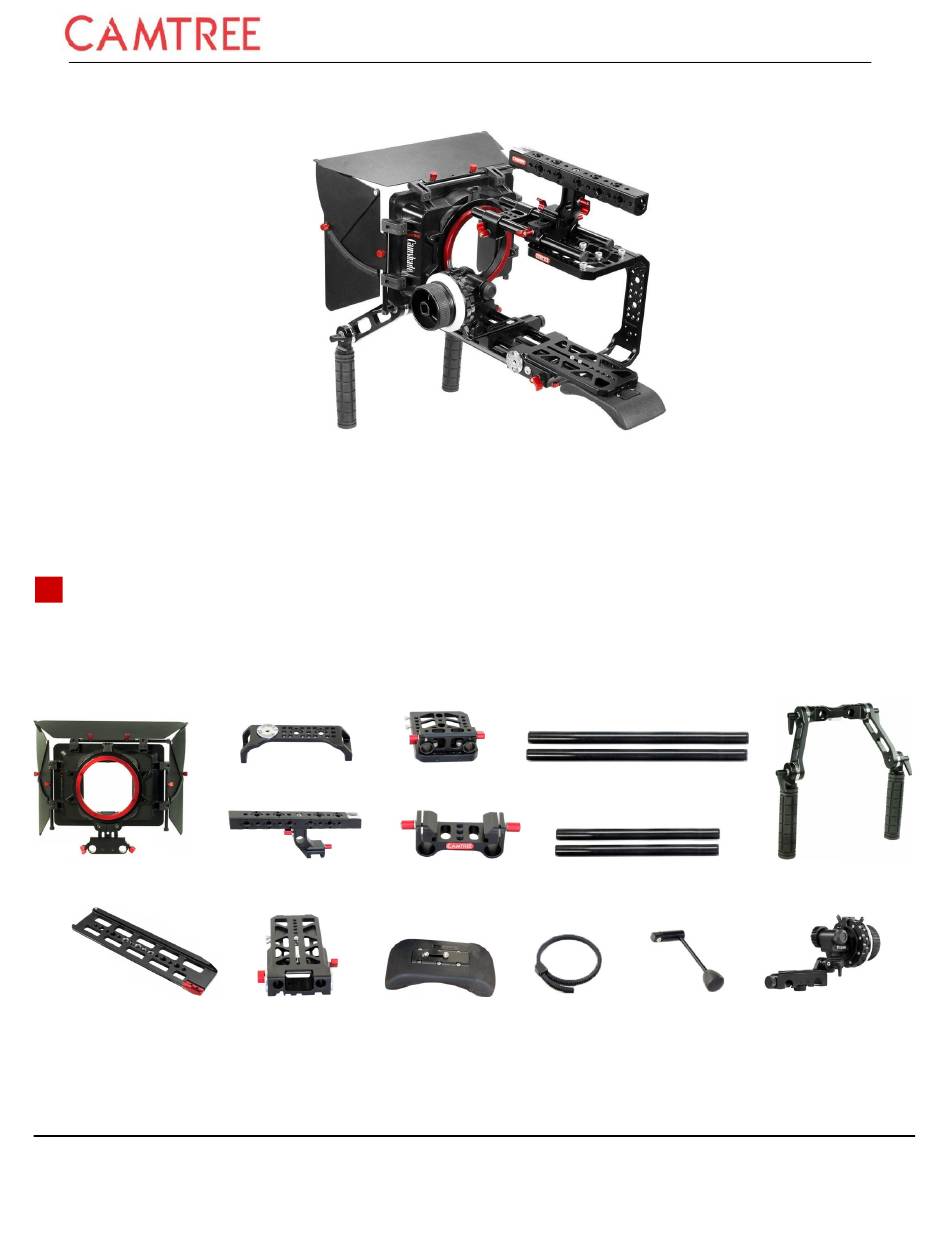

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

Matte Box

Dovetail plate

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

Hunt Camera Cage Shoulder Kit

A s s e m b l y M a n u a l

Side Bracket

Top Plate

15mm Rod

Top Handle

Camera Plate

Shoulder Pad

statutes or in writing by the Publisher.

2X 300mm long rods

2X 300mm Short rods

Adapter

Gear Belt

(CH-BMUM-SK)

Handle Set

Speed Crank

Follow Focus

Table of Contents

Need help?

Do you have a question about the CH-BMUM-SK and is the answer not in the manual?

Page 1 Hunt Camera Cage Shoulder Kit (CH-BMUM-SK) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Dovetail Plate Setup  Attach the dovetail plate with your tripod plate and mount it on your tripod. Tighten it well to secure it. NOTE: Firstly Secure the camera with Base plate and then attach the side Bracket and top plate. ...
Page 3  Mount the camera plate on dovetail plate and tighten the knob to secure it.  Insert 300mm rods into the 15mm rod adapter and tighten the side knob. Follow Focus Setup  Attach the follow focus on 300mm rods and tighten to secure it.

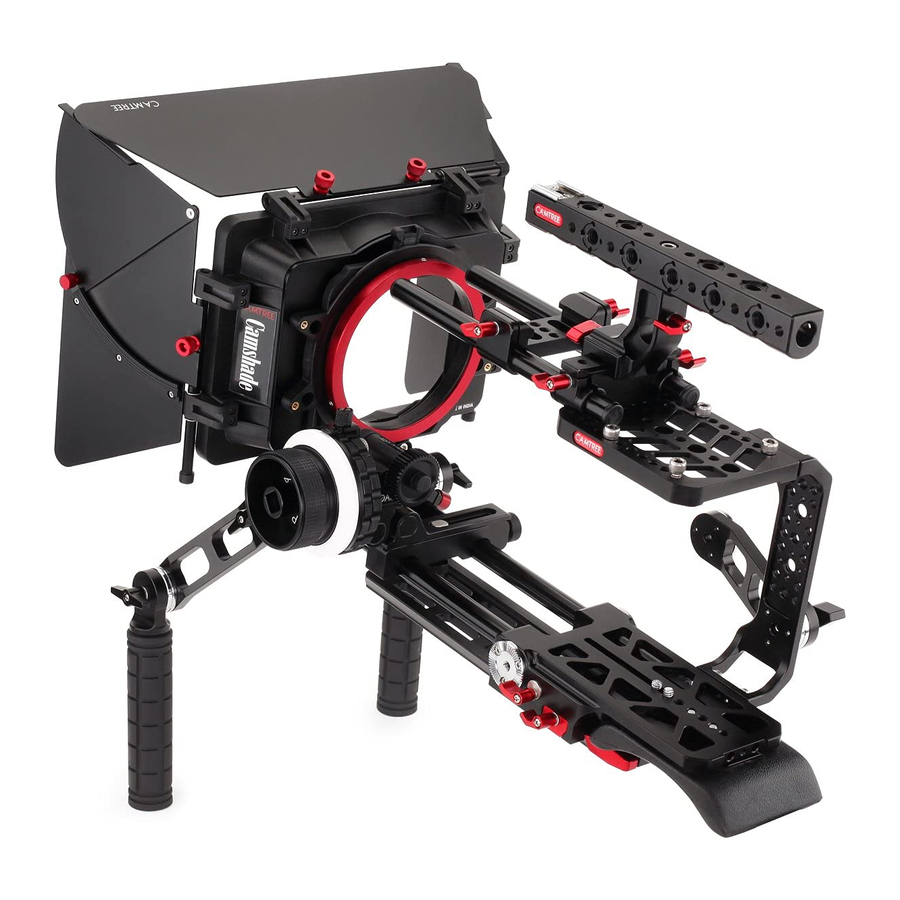

Page 4  Attach the handle set on 300mm rods and tighten the knob. YOUR CAMTREE HUNT CAMERA CAGE SHOULDER KIT ALL DRESSED UP AND GOOD TO GO (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.
