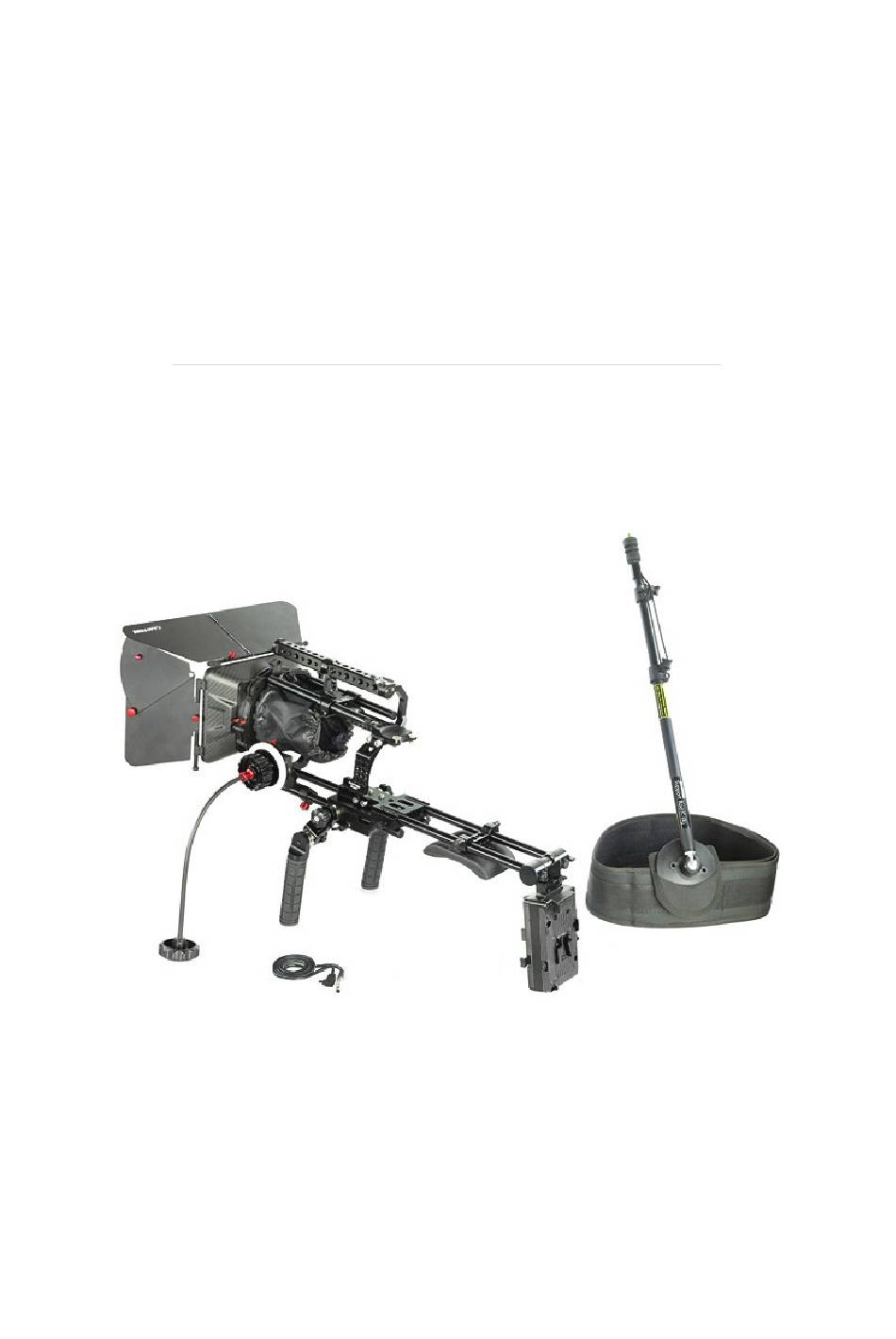

  • Page 1 CAMTREE HUNT FS-700 CAGE RIG KIT FOR SONY NEX-FS700 INSTRUCTION MANUAL F o r d e m o n s t r a t i o n o n l y All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the publisher.
  • Page 2 CAMTREE Hunt FS-700 Cage kit I N T R O D U C T I O N The unique kit design is totally new and designed specifically for the FS-700 Camera. This kit provides top handle with multiple mounting options including hot shoe mount.
  • Page 3 CAMTREE Hunt FS-700 Cage kit Knicker MB-20 CF Matte Box Lemo Splitter Whip Gear Ring Set Follow Focus Shoulder Rig & Support with 15mm adapter 2pc x Rod Connector A S S E M B L I N G C A M T R E E H U N T F S - 7 0 0 C A G E ...
  • Page 4 Note: if you have purchased rig/kit then you have to attached 300mm rods instead of 150mm rods.  Insert 2X 300mm long rods into front of the rod clamp of FS-700 camera base plate and tighten the knobs properly to secure the rods.
  • Page 5 CAMTREE Hunt FS-700 Cage kit Note: If you have purchased (CH-FS700-RIG1), kit, follow the below steps as well:  Attach rosette handle adapter into the rosette gear of the base plate and to secure it tighten the knob properly as shown in the image.
  • Page 6 CAMTREE Hunt FS-700 Cage kit  Attach the matched sized gear ring to the focus ring of your lens and fit the follow focus drive gear to the gear ring. Secure it by tightening the knob properly. A S S E M B L I N G Y O U R M B - 2 0 C F M A T T E B O X ...
  • Page 7 CAMTREE Hunt FS-700 Cage kit Note: Pulling the knob upwards releases the MB-20 CF matte box allowing it to easily swing away from the camera.  Now attach the fully assembled matte box to 300mm rods with the help of...
  • Page 8 CAMTREE Hunt FS-700 Cage kit YO U R C A M T R E E H U N T F S - 7 0 0 C A G E K I T S E T U P I S R E A D Y T O U S E...
