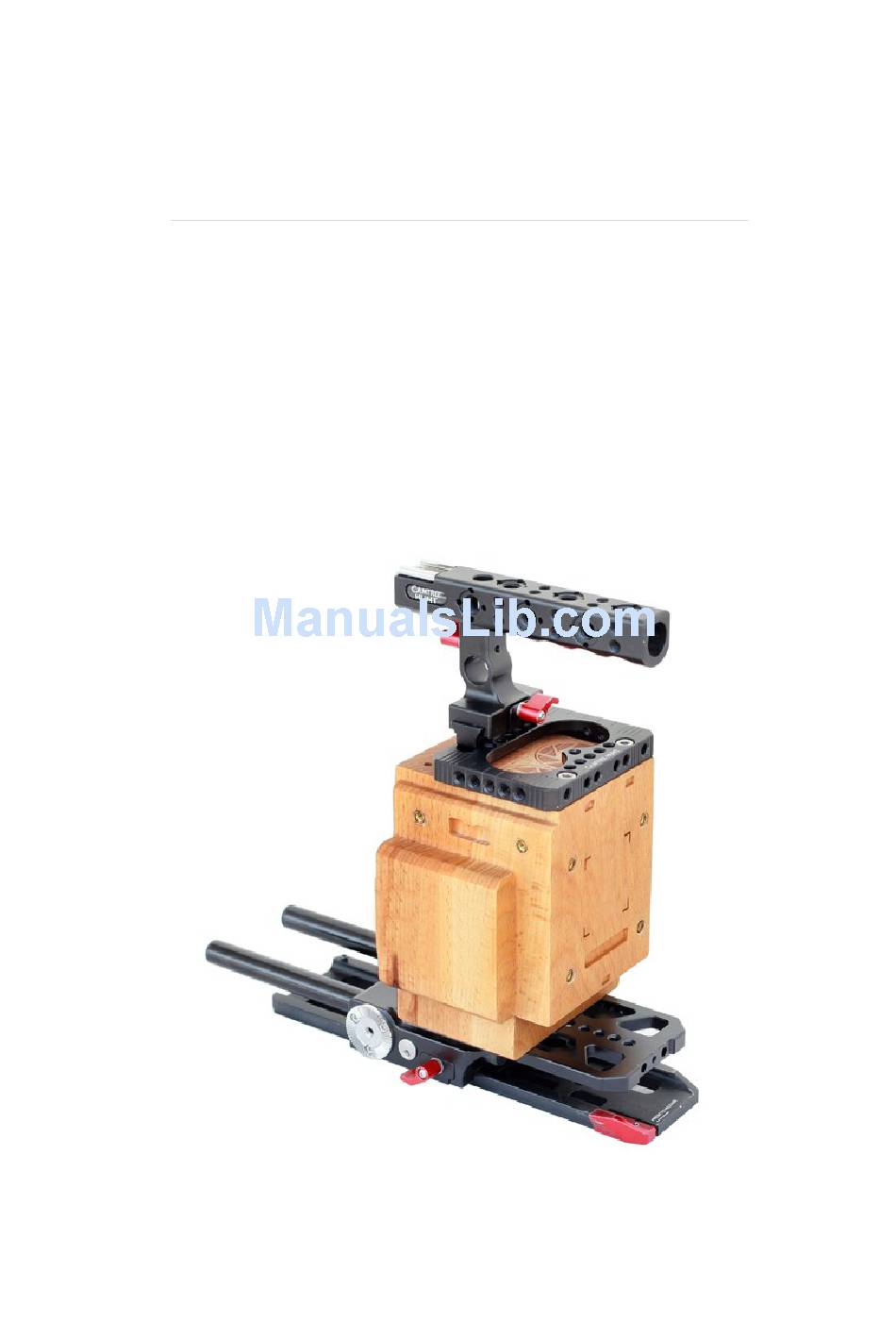

Camtree Hunt CH-TB-RSRW Instruction Manual

Top & base plate

CAMTREE HUNT

TOP & BASE PLATE

(CH-TB-RSRW)

INSTRUCTION MANUAL

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any

means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by

the applicable copyright statutes or in writing by the Publisher.

Table of Contents

Need help?

Do you have a question about the CH-TB-RSRW and is the answer not in the manual?

Page 1 CAMTREE HUNT TOP & BASE PLATE (CH-TB-RSRW) INSTRUCTION MANUAL All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by...
Page 2 Camtree Hunt Top & Base Plate INTRODUCTION Accessorize your professional camera with our Camtree Hunt Top & Base Plate specifically de- signed for Red Scarlet-W/Red Raven/Red Weapon Cameras that provides you with a solution for quick handheld operation & easy tripod mounting. The High Strength top handle provides a firm grip with an array of accessory mounting options.
Page 3 Camtree Hunt Top & Base Plate  Mount your camera onto the base plate and tighten the screw with the help of screw driver.  Now slide-in your camera setup into the dovetail plate and tighten the knob to secure properly.
Page 4 Slide in the top handle into the camera plate and tighten the knob to secure it.  Insert 200 mm female rods into the base plate and tighten the knob to secure it. YOUR CAMTREE HUNT TOP & BASE PLATE ALL DRESSED UP AND GOOD TO GO...
Page 5 Camtree Hunt Top & Base Plate WARRANTY We offer a one year warranty for our products from the date of purchase. We will repair or replace your product, free of charge, in the event of a defect in materials or craftsmanship obtained during normal use or handling based on the user manual.
