Major BOS 2b2

Serial Number 3799 and later

Table of Contents

Need help?

Do you have a question about the Major BOS 2b2 and is the answer not in the manual?

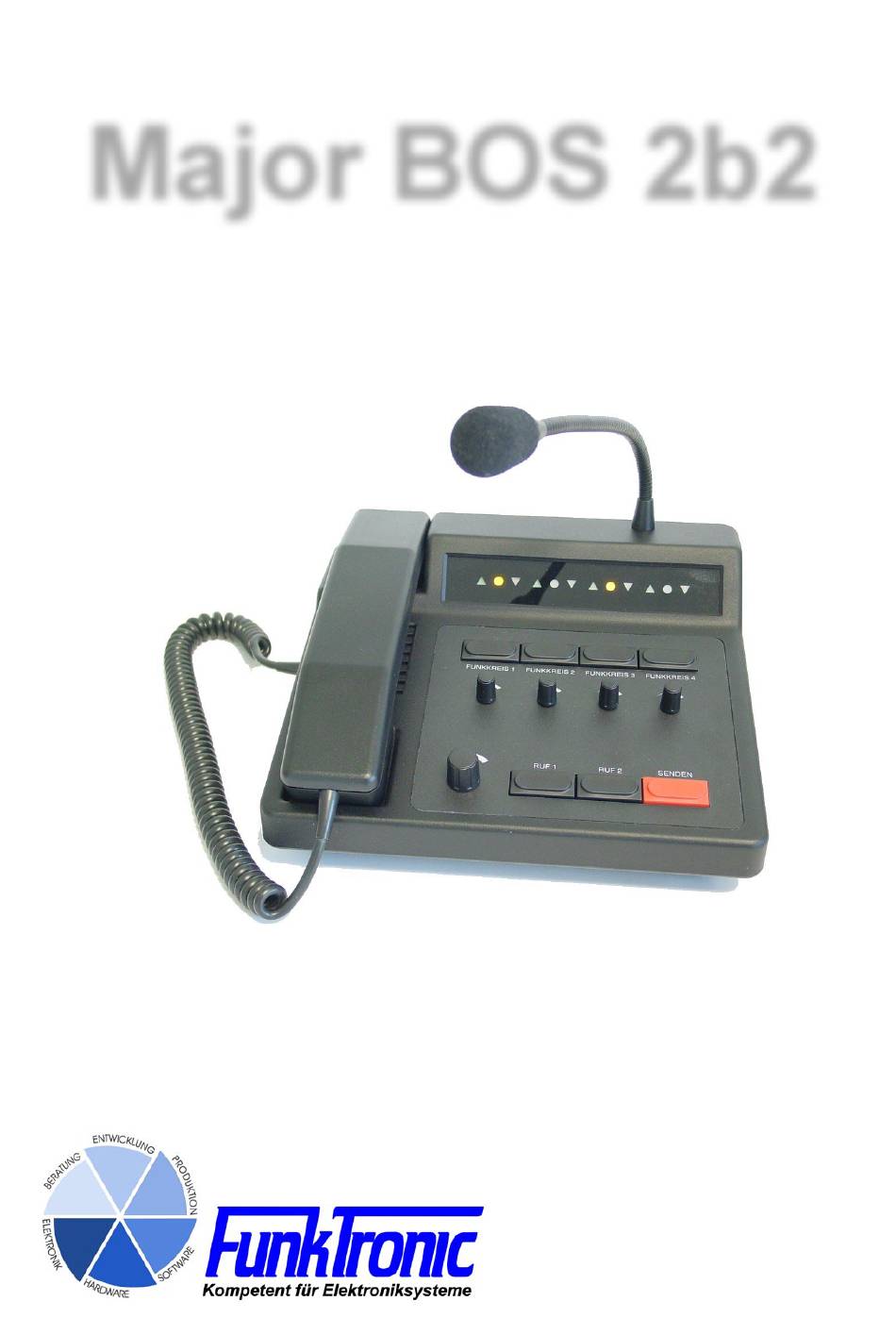

Page 1 Major BOS 2b2 Serial Number 3799 and later...
Page 2 Content Page Technical Data Controls of Major BOS 2b2 Major BOS 2b2 Connectivity Keys Carrier Indication (Squelch) Transmitter Indication (PTT) Selection Indication Microphone Selection Tone Call Decoder Tone Call Encoder Technical Data Supply Voltage +12V DC -15% +25% Current consumption max.

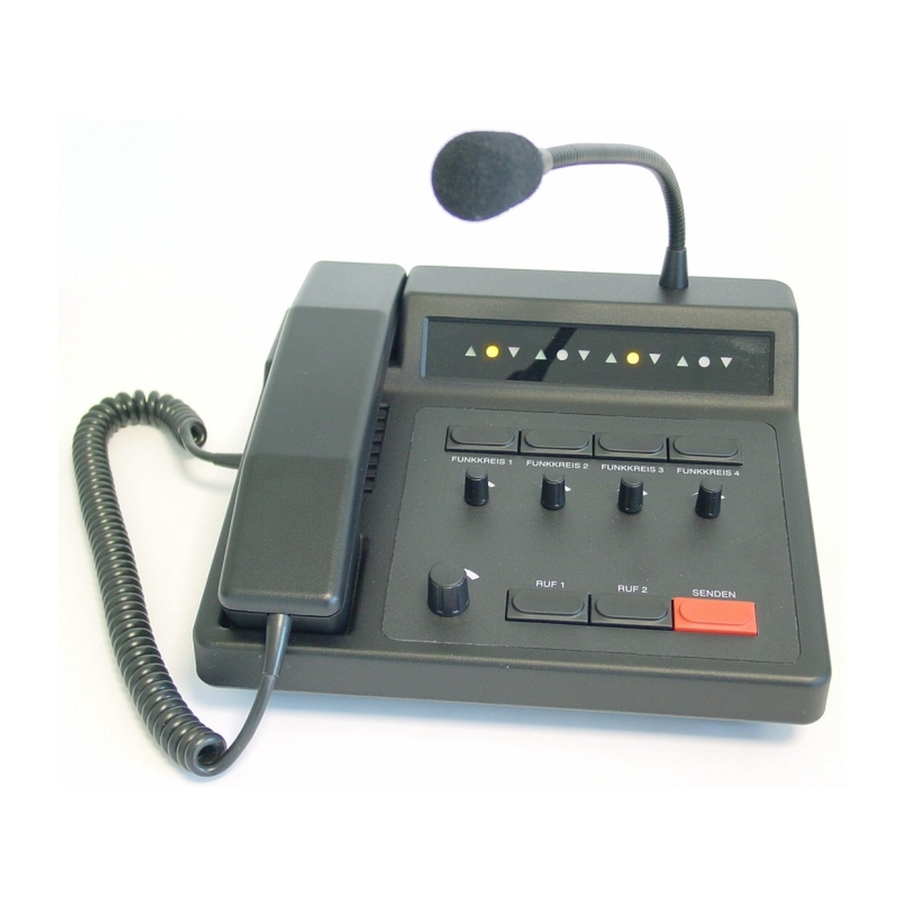

Page 3 Controls of Major BOS 2b2 Transmitter indication Selection indication Receiver indication (Squelch) Selection key Monitoring volume PTT key Tone Call key (Call I and Call II) Master volume Loudspeaker PTT key handset Handset Gooseneck microphone mbos2b_short_eng (22.11.2010) - 3 -...
Page 4 Major BOS 2b2 Connectivity This desktop radio contoller can be connected to up to four two way radios. Every base station can be supplied with squelch input, PTT output, a busy line and AF ins and outs. In addition the Major BOS 2b2 provides a headset connector, an external signal encoder imput and a tape recorder output.
Page 5 Tone Call Encoder The Major BOS 2b2 includes a encoder for Tone Call 1 and Tone Call 2. The tone calls are sent with the corresponding keys of the keypad. The tone is sent as long as the button is pushed.
Page 6 November 2005, the purchasers or users are obliged to return old equipment produced by us free of cost. FunkTronic GmbH will dispose of this old equipment at its own expense according to regulations.
