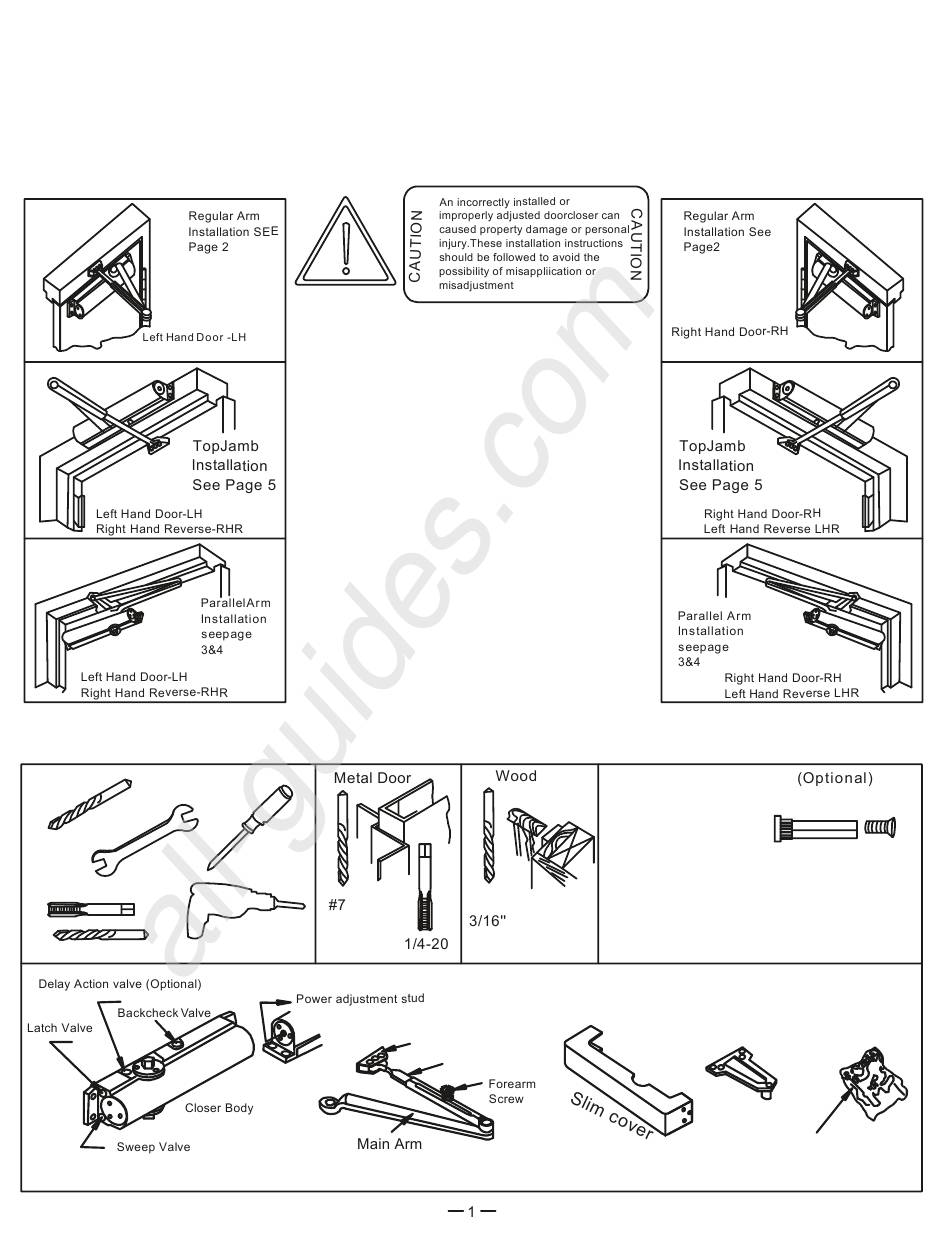

851 DOOR CLOSER
Installation Instructions
All manuals and user guides at all-guides.com
• Door must be hung on ball bearing or antifriction hinges.
• Door and frame must be properly reinforced at the door
closer mounting areas.
• For non-labelled wood doors pre-drill and use wood
screws.
• For steel reinforced hollow metal doors, drill and tap for
the appropriate machine screws.
• For non-reinforced hollow metal doors and labeled wood
doors, drill and use sex-nut bolts.
• For steel frames drill and tap for the appropriate machine
screws.
• For optional drop plates, hold open function, cushion rigid
arm installation see separate installation instructions.
• Door closer should not be installed on an exterior side of
a door or door frame surface.
Arm Shoe
Forearm Link
Adjustable Size (1 thru 6)
Adjusts for ADA requirements
Standard Backcheck
Optional Delay Action
Predrill 3/16"Dia for
Sexnut with bolt
Wood Screws on
Wood or hollow
metal doors
Drill and tap for
Drill 9/32" Dia through
1/4 - 20 UNC
door and drill 3/8" Dia
machine screws
on out door skin for
on preped metal
doors
Par Arm Bracket
Screw Pack
sexnuts
851-INST EN 2018/04
Advertisement
Related Manuals for Canaropa 851
Summary of Contents for Canaropa 851
- Page 1 All manuals and user guides at all-guides.com 851 DOOR CLOSER Adjustable Size (1 thru 6) Adjusts for ADA requirements Installation Instructions Standard Backcheck Optional Delay Action • Door must be hung on ball bearing or antifriction hinges. • Door and frame must be properly reinforced at the door closer mounting areas.
- Page 2 All manuals and user guides at all-guides.com Regular Arm Installation (Pull Side) with No Hold-Open Forearm Shoe Forearm Link Main Arm Right Hand shown 851-INST EN 2018/04...
- Page 3 Right Hand or Left Hand Reverse shown CLOSING SPEED VALVES DOOR CLOSER & PARALLEL PRELOAD ARM BRACKET INSTALLATION Rotate door closer bottom shaft about 30° to 40° towards the hinges and place main arm on top shaft 851-INST EN 2018/04...
- Page 4 All manuals and user guides at all-guides.com Parallel Arm Installation (Push Side) with No Hold-Open LEFT HAND REVERSED (LHR) RIGHT HAND REVERSED (RHR) CAUTION: Don’t completely close valve. 851-INST EN 2018/04...
- Page 5 All manuals and user guides at all-guides.com Top Jamb Installation (Push Side) with No Hold-Open Forearm Link Inside Door Surface Left Hand Reverse shown A longer forearm link is required for reveals greater than 3" (76 mm) 851-INST EN 2018/04...
- Page 6 - 8 TURNS C.W. 54” (1372mm) 60” (1524mm) - 13 TURNS C.W. 250-330 (113-150) NOTE: Door Closer power adjustment has 20 full (360°) turns from minimum to maximum. Factory preset to Size 3 Arm / Shoe Configuratrion 851-INST EN 2018/04...
