Canaropa 4000CNS Series Installation Instructions

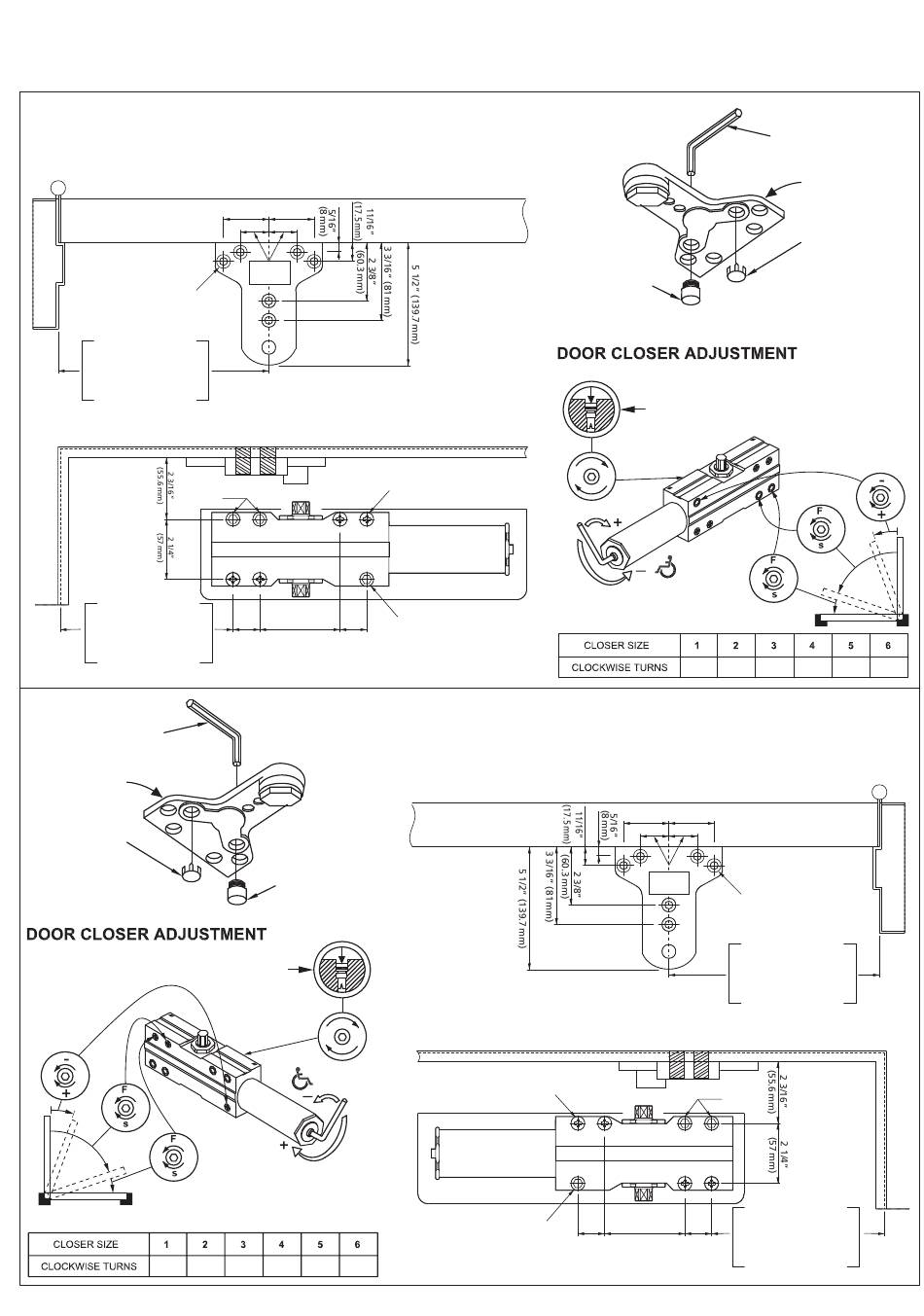

4000CNS & 4000HC SERIES DOOR CLOSER INSTALLATION
HEAVY DUTY ARM WITH STOP OR WITH HOLD-OPEN AND STOP

PARALLEL ARM (PUSH SIDE) MOUNTING

LEFT HAND DOOR SHOWN
5 Holes for #14
all-purpose or 1/4-20
machine screws.
11-1/32" (280mm)=85˚
10-7/16" (265mm)=90˚
9-29/64" (240mm)=100˚
8-21/32" (220mm)=110˚
Closing speed control
screws
8-55/64" (225mm)=85˚
8-17/64" (210mm)=90˚
7-3/32" (180mm)=100˚
6-7/64" (155mm)=110˚
STOP ALLEN KEY
PARALLEL
BRACKET
FILLER PLUG
SCREW-IN COMPLETELY THE VALVE AT
THE BACK OF THE DOOR CLOSER
BACK-CHECK
1
CLOSING
2
3
LATCHING
POWER ADJUSTMENT CHART
0
1 11/16" 1 11/16"
(43 mm) (43 mm)
1 1/16"
(27 mm)
1" 3" 1"
(25.4 mm) (76.2mm) (25.4 mm)
ARM STOP
SPRING POWER ADJUSTMENT
4 8 12 16 20
4 Holes for #14 all-purpose
wood screws or 1/4-20
machine screws.
Backcheck control screw
POWER ADJUSTMENT CHART
PARALLEL ARM (PUSH SIDE) MOUNTING
RIGHT HAND DOOR SHOWN
4 Holes for #14
all-purpose wood screws
or 1/4-20 machine screws.
Backcheck control screw
SHEET 1 OF 2
ARM STOP
SCREW-IN COMPLETELY THE VALVE AT
THE BACK OF THE DOOR CLOSER
SPRING POWER ADJUSTMENT
0 4
1 11/16" 1 11/16"
(43mm) (43mm)
1 1/16"
(27mm)
11-1/32" (280mm)=85˚
10-7/16" (265mm)=90˚
9-29/64" (240mm)=100˚
8-21/32" (220mm)=110˚
Closing speed
screws
8-55/64" (225mm)=85˚
1" 3" 1"
8-17/64" (210mm)=90˚
(25.4 mm) (76.2mm) (25.4 mm)
7-3/32" (180mm)=100˚
6-7/64" (155mm)=110˚
STOP ALLEN KEY
PARALLEL
BRACKET
FILLER PLUG
BACK-CHECK
CLOSING
1
2
3
LATCHING
8 12 16 20
5 Holes for #14 all-purpose
wood screws or
1/4-20 machine screws.
