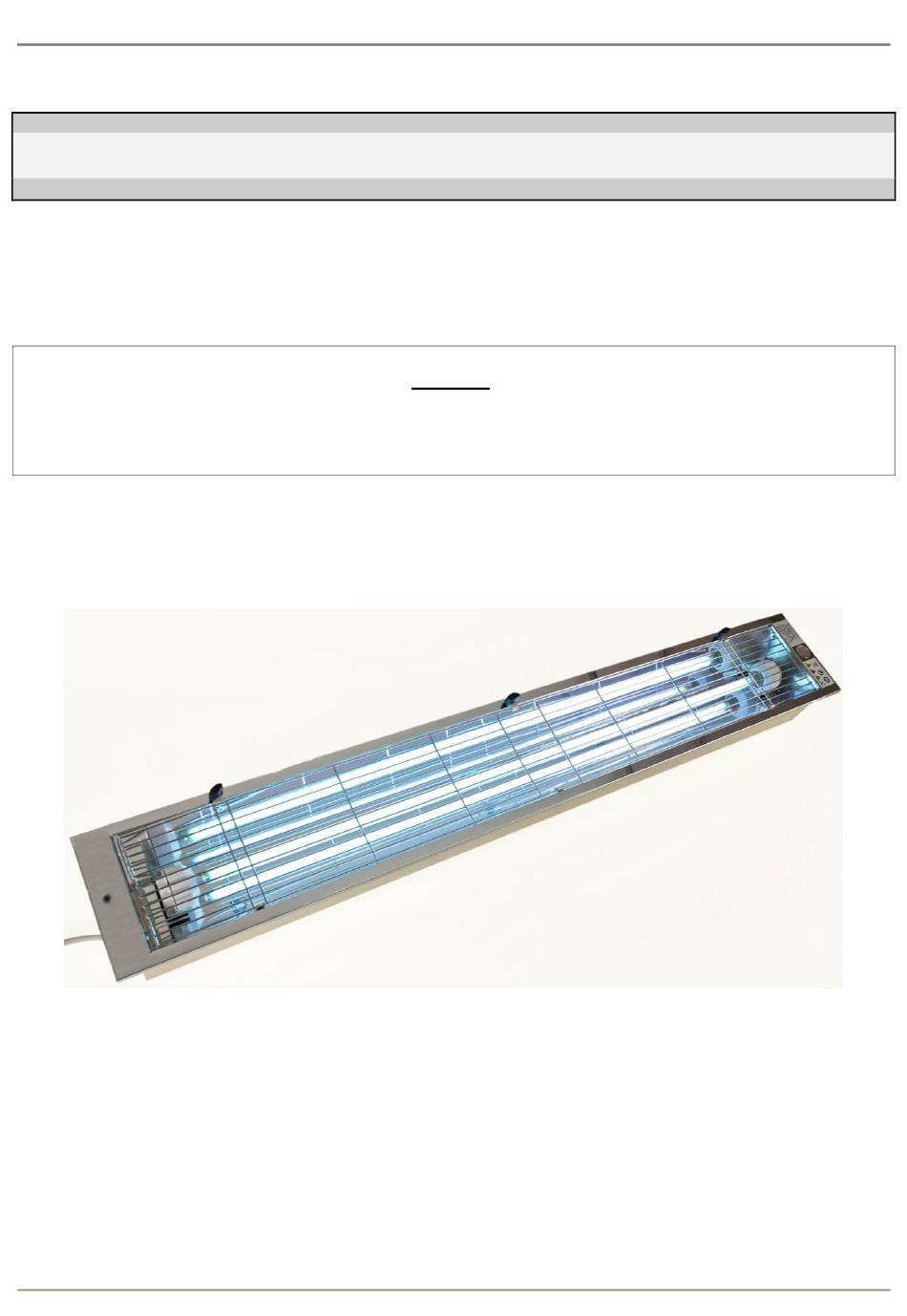

- Page 1 LIGHT PROGRESS DIRECT-H-K [eng] UV-DIRECT Germicidal UV-C Device for Disinfection by Direct Irradiation MODELS: UV-DIRECT E40H-K-NX UV-DIRECT E75H-K-NX gen-2021 Pag. 1/16...
-
Page 2: Security Warning
LIGHT PROGRESS DIRECT-H-K [eng] SECURITY WARNING The Company has ensured that every care is taken in the design and production of its machinery. In order to guar- antee, as far as possible, that it is safe when used correctly. However, the laws on accident prevention require all users of the machinery to ensure that whoever is responsible for installation, maintenance, use and sale of these products is shown the instruction provided by our company and is made aware of the precautions to be taken. - Page 3 LIGHT PROGRESS DIRECT-H-K [eng] CONVENTIONAL SYMBOLS NOTICED ON DEVICES DOESN’T DISPOSE THIS PRODUCT ON THE UNDIFFERENTIATED WASTE DISPOSING OF THE SUBSTITUTED ITEMS MUST BE PERFORMED RESPECTING THE LOCAL LAWS. RECYCLE THE STUFFS THAT COMPOSES THIS PRODUCT. OBLIGATION TO CONSULT THESE INSTRUCTIONS BEFORE USE THIS PRODUCT DANGER OF ELECTRICAL SHOCK;...
-
Page 4: Device Description
LIGHT PROGRESS DIRECT-H-K [eng] DEVICE DESCRIPTION The UV-DIRECT series includes germicidal devices using UV-C ultraviolet rays with direct radiation that sterilize the air and surfaces. The UV-C lamps, with emission peak at 235.7 nm. (nanometers), have strong germicidal power against all micro-organisms (mold, bacteria and viruses). -
Page 5: Device Codes
LIGHT PROGRESS DIRECT-H-K [eng] DEVICE CODES RECEPTION Handle with care as fragile material. Verify the integrity of the packaging, and please be careful not to damage the con- tents when using sharp blades or cutters to open the box. Remove the unit from the box, then inspect it immediately to ensure that no damage has occurred during transport. -
Page 6: Installation
LIGHT PROGRESS DIRECT-H-K [eng] INSTALLATION The device should be positioned on false ceiling almost in central position. The installation of several units should be carried out so as to distribute them uniformly in the environment (to avoid the hidden areas, such as the corners; it should allow all the air to be treated). - Page 7 LIGHT PROGRESS DIRECT-H-K [eng] To install UV-DIRECT ..K series devices make a hole with dimension as in the table on the false ceiling (fig. 3B). Insert the device into the hole as shown in Figure 3C. The ceiling may have a thickness from 1 mm up to 40 mm.
-
Page 8: Electrical Connections
LIGHT PROGRESS DIRECT-H-K [eng] WARNING!!! To avoid exposition to UV-C rays please provide a total shielding of the modules, or automatic turning OFF disposals at the entry doors in the environment treated. There must be no direct irradiation of the personnel. - Page 9 LIGHT PROGRESS DIRECT-H-K [eng] ► UV-DIRECT-EL In model -EL you get the possibility to remote control the functionality of UV tube. Connected to the device there is a cable with 7 poles: a couple of poles carrying output signal to turn on LED indicating the UV lamp(when it’s lighting);...
-
Page 10: Maintenance
Light Progress. In case of necessity, please, send the device back to our facility for any kind of repairs. -
Page 11: Technical Features
LIGHT PROGRESS DIRECT-H-K [eng] TECHNICAL FEATURES TABLE n°1 UV-DIRECT E40H-K-NX E75H-K-NX ≤ 18.000 ≤ 18.000 LAMP LIFETIME (h)* POWER (W) EXTERNAL DIMENSIONS LxSxH (mm.) 598 x 103 x 156 1055 x 103 x 156 WEIGHT (Kg.) TREATED VOLUME (m from 20 to 40... -
Page 12: Warranty
Once you receive the module, it has to be filled up in every part and sent via email to info@lightprogress.it or via fax to +39.0575 789929 to obtain the RMA number that will authorize the shipments of the goods to Light Progress warehouse. -
Page 13: Declaration Of Compliance
LIGHT PROGRESS DIRECT-H-K [eng] DECLARATION OF COMPLIANCE We, LIGHT PROGRESS S.r.l., hereby declare under our own responsibility that the following units of own production: UV-DIRECT…-K-NX series • are in accordance with EEC directive 2014/30/EU (Electromagnetic Compatibility) • are in accordance with EEC Machinery Directive dispositions 2006/42/EU •... - Page 14 LIGHT PROGRESS DIRECT-H-K [eng] Notes: ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ gen-2021 Pag. 14/16...
- Page 15 LIGHT PROGRESS DIRECT-H-K [eng] ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ gen-2021 Pag. 15/16...
- Page 16 LIGHT PROGRESS DIRECT-H-K [eng] Loc. San Lorenzo, 40 - 52031 ANGHIARI (AR) - ITALIA TEL. 0575 / 74.92.55 - FAX 0575 / 78.99.29 PRODUCTION: • ANGHIARI - Loc. San Lorenzo, 40 • CASTIGLION F.NO - Loc. S. Antonino, 40 : www.lightprogress.it Http info@lightprogress.it...
