- Page 1 LIGHT PROGRESS UV-BOX-E3/40H-NX-R [eng] UV-BOX-E3/40H-NX-R AISI 304 Stainless Steel Germicidal UV-BOX with Direct Radiation for STERILITY MAINTAINING MODEL: UV-BOX-E3/40H-NX-R mar-2020 Pag. 1/2...
-
Page 2: Security Warning
LIGHT PROGRESS UV-BOX-E3/40H-NX-R [eng] SECURITY WARNING The Company has ensured that every care is taken in the design and production of its machinery. In order to guar- antee, as far as possible, that it is safe when used correctly. However, the laws on accident prevention require all users of the machinery to ensure that whoever is responsible for installation, maintenance, use and sale of these products is shown the instruction provided by our company and is made aware of the precautions to be taken. -
Page 3: Storage Of This Manual
LIGHT PROGRESS UV-BOX-E3/40H-NX-R [eng] CONVENTIONAL SYMBOLS NOTICED ON DEVICES DOESN’T DISPOSE THIS PRODUCT ON THE UNDIFFERENTIATED WASTE DISPOSING OF THE SUBSTITUTED ITEMS MUST BE PERFORMED RESPECTING THE LOCAL LAWS. RECYCLE THE STUFFS THAT COMPOSES THIS PRODUCT. OBLIGATION TO CONSULT THESE INSTRUCTIONS BEFORE USE THIS PRODUCT DANGER OF ELECTRICAL SHOCK;... -
Page 4: Device Description

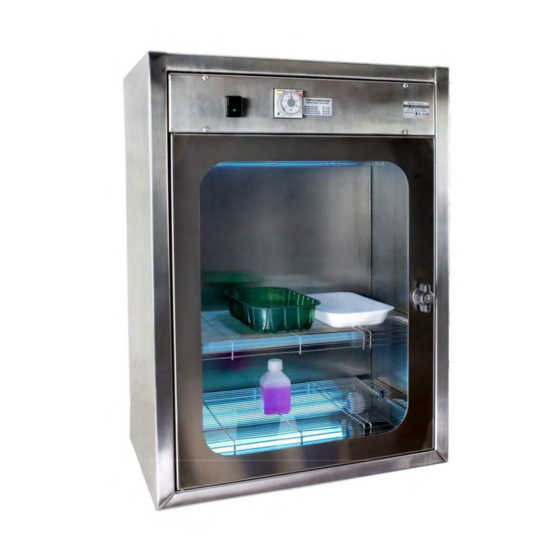

UV-BOX-E3/40H-NX-R [eng] DEVICE DESCRIPTION UV-BOX-E3/40H-NX-R has a stainless steel AISI 304 structure with 2 stainless steel AISI 304 flat grills to support the objects to be disinfected. The grids support the stored items minimizing dead spots and getting disinfection of 99.99% in very short exposure times. -
Page 5: Device Codes
LIGHT PROGRESS UV-BOX-E3/40H-NX-R [eng] DEVICE CODES RECEPTION Handle with care as fragile material. Verify the integrity of the packaging, and please be careful not to damage the con- tents when using sharp blades or cutters to open the box. Remove the unit from the box, then inspect it immediately to ensure that no damage has occurred during transport. -
Page 6: Installation
UV-BOX-E3/40H-NX-R [eng] INSTALLATION The UV-BOX-E3/40H-NX-R is a wall cabinet and it is fundamental to install it in a secure location accessible to the op- erator. Take care not to place the cabinet in hazardous locations for the personnel. To fix the cabinet to the wall, use two screw anchors ( 8 10mm) (not supplied), placed at a mutual distance equal to the distance of the two welded eyelets, behind and at the top on the cabinet. - Page 7 LIGHT PROGRESS UV-BOX-E3/40H-NX-R [eng] SCHEDULING RANGE RANGE ON/OFF SWITCH ON/OFF TIMER SWITCH ON/OFF SWITCH Cabinet main power switch (green led power-on indicator) TIMER You should set up two types of time on the timer: a) DURATION OF STERILIZATION b) DURATION OF PAUSE, between two successive sterilizations Proceed with the following steps: 1) Set the full scale as desired, by turning the two Phillips screws placed in the lower left side of the clock.
-
Page 8: Maintenance
LIGHT PROGRESS UV-BOX-E3/40H-NX-R [eng] MAINTENANCE WEAR PROTECTIVE PROTECTIVE UV LAMP GLOVES GLASSES Lamp maintenance is very important because UV-C light emit- ted by the source is not visible to the eye, so, although you see the lamp ON, its germicidal effect may not be sufficient to performs disinfection treatment. -
Page 9: Technical Specifications
LIGHT PROGRESS UV-BOX-E3/40H-NX-R [eng] TECHNICAL SPECIFICATIONS TABLE n.1 UV-BOX E3/40H-NX-R ≤ 18.000 LAMP LIFETIME (h)* SUGGESTED REPLACEMENT Deduct 1 hour for every lighting (max. 2 Years). TOTAL CONSUMPTION (W) EXTERNAL DIM. AxBxC (mm.) 750 x 550 x 350 INTERNAL DIM. DxExF (mm.) 600 x 500 x 310 WEIGHT(Kg.) -
Page 10: Warranty
Once you receive the module, it has to be filled up in every part and sent via email to info@lightprogress.it or via fax to +39.0575 789929 to obtain the RMA number that will authorize the shipments of the goods to Light Progress warehouse. -
Page 11: Declaration Of Compliance
LIGHT PROGRESS UV-BOX-E3/40H-NX-R [eng] DECLARATION OF COMPLIANCE We, LIGHT PROGRESS S.r.l., hereby declare under our own responsibility that the following units of own production: UV-BOX-E3-40H-NX series are in accordance with EEC directive 2014/30/EU (Electromagnetic Compatibility) are in accordance with EEC Machinery Directive dispositions 2006/42/EU are in accordance with EEC Low Voltage Directive 2014/35/EU... - Page 12 LIGHT PROGRESS UV-BOX-E3/40H-NX-R [eng] CIRCUIT SCHEME mar-2020 Pag. 12/13...
- Page 13 LIGHT PROGRESS UV-BOX-E3/40H-NX-R [eng] Notes: ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ mar-2020 Pag. 13/14...
- Page 14 LIGHT PROGRESS UV-BOX-E3/40H-NX-R [eng] ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ mar-2020 Pag. 14/15...
- Page 15 LIGHT PROGRESS UV-BOX-E3/40H-NX-R [eng] ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ mar-2020 Pag. 15/16...
- Page 16 LIGHT PROGRESS UV-BOX-E3/40H-NX-R [eng] Loc. San Lorenzo, 40 - 52031 ANGHIARI (AR) - ITALIA TEL. 0575 / 74.92.55 - FAX 0575 / 78.99.29 PRODUZIONE: • ANGHIARI - Loc. San Lorenzo, 40 • CASTIGLION F.NO - Loc. S. Antonino, 40 : www.lightprogress.it Http info@lightprogress.it...
