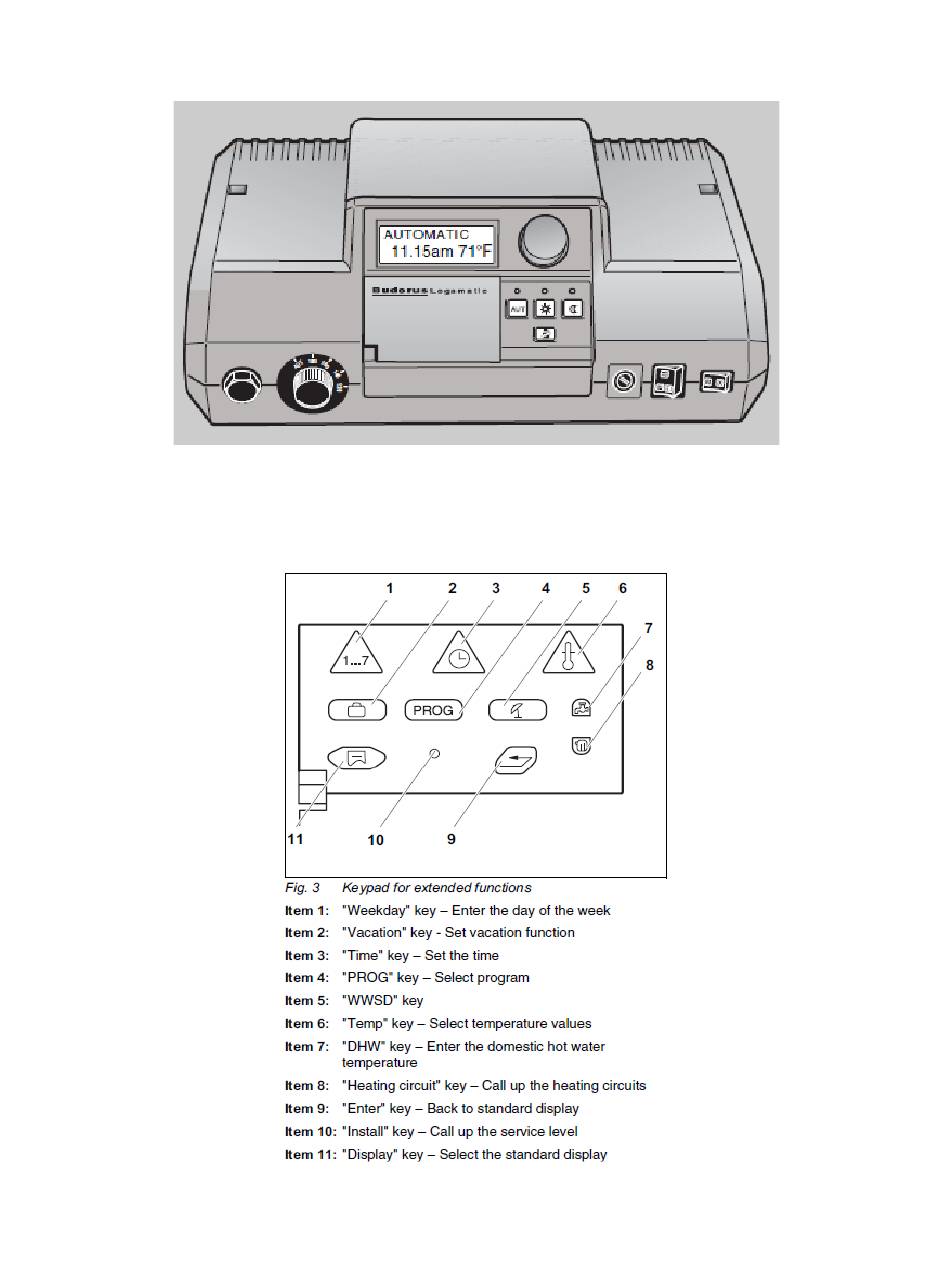

Locate the "On/Off" button on the right front side of the control. Turn boiler
•
and control on by pressing "On/Off" button from right to left.
Flip down the door on the 2107 control utilizing the tab on the left side
•
Press the "1...7" button, the "Clock" button, and the "Return Arrow" button.
•
With these three buttons depressed, the "Installation Levels" menu.
2107 Start Up

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2107 and is the answer not in the manual?

Questions and answers

Related Manuals for Buderus 2107

Summary of Contents for Buderus 2107

  • Page 1 • and control on by pressing “On/Off” button from right to left. Flip down the door on the 2107 control utilizing the tab on the left side • Press the “1…7” button, the “Clock” button, and the “Return Arrow” button.
  • Page 2 “LCD Test” will now be on the screen. Turn the dial two clicks to the right so • that “Reset” is on the screen. If this control has already been installed and there is a need to erase all programming, when “Reset” is on the screen, press and hold the “Torn page”...
  • Page 3 Spin dial one click to the right. “BLDG RESP” will now be displayed. This value • accounts for the building’s insulation factor – 1 being the lowest, 2 being medium, and 3 being the best. The factory setting is “2”. Press and hold the “Enter”...
  • Page 4 Spin the dial one click to the right, “REMOTE 1” will be displayed. This setting • will tell the control if there is a Buderus BFU room sensor installed or not. Factory setting is “OFF.” To turn on, press and hold the “Enter” while spinning the dial.
  • Page 5 Turn the dial one click to the right and “OASETBACK” will be displayed. This • setting will program the control as to what type of setback it will be working on. Factory setting is “OASETBACK.” To adjust this value, press and hold “Enter” then spin the dial until desired setting is displayed.
  • Page 6 Press the “Return Arrow” button. “CIRCUIT 1” will now be displayed. Turn the • dial one click to the right. “DHW PROD” will now be displayed. This setting tells the control and boiler if there is an indirect water heater that they are responsible for.
