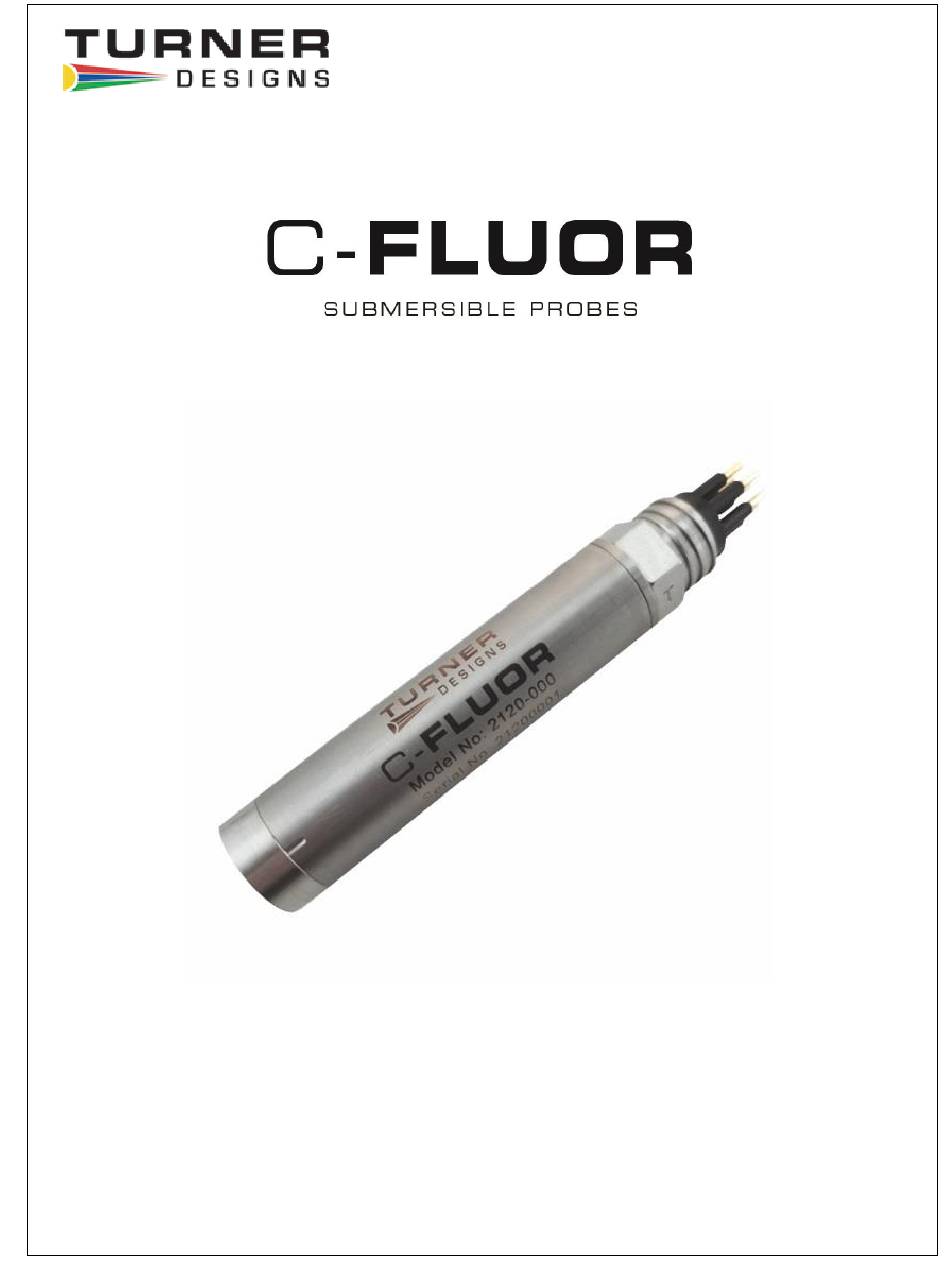

- Page 1 Digital User’s Manual March 13, 2020 P/N 998-2131 Revision 1.0 TURNER DESIGNS 1995 N. 1 Street San Jose, CA 95112 Phone: (408) 749-0994 FAX: (408) 749-0998...
-
Page 2: Table Of Contents
Digital C-FLUOR Submersible Probe Table of Contents Introduction Description Inspection and Setup Instrument Checklist Configurations Optional Accessories Functional Test for Digital C-FLUOR with connector Digital C-FLUOR with no connector Digital C-FLUOR Software & Functions Setup 3.1.1 Polling Mode 3.1.2 Data Streaming Mode 3.13... - Page 3 WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) DIRECTIVE Turner Designs is in the business of designing and selling products that benefit the well-being of our environment. Accordingly, we are concerned with preserving the surroundings wherever our instruments are used and happy to work with customers by complying with the WEEE Directive to reduce the environmental impact resulting from the use of our products.
-
Page 4: Introduction
Digital C-FLUOR Submersible Probe 1. Introduction 1.1 Description The Turner Designs Digital C-FLUOR Submersible Probe is an accurate single- channel detector that can be used for many different applications. Digital C- FLUOR can be integrated into multi-parameter systems from which it receives power allowing it to output digital ASCII data as concentration estimates for a fluorophore of interest. -
Page 5: Inspection And Setup
C-FLUOR (Digital) P/N 2120-000-“Identification Letter”-232 C-FLUOR Without Connector (Digital) P/N 2120-000-“Identification Letter”- NC-232 Note: No end cap is supplied for the C-FLUOR Without Connector (Digital) - see Section 2.5. For end cap specifications, contact Support@turnerdesigns.com 2.3 Optional Accessories ... - Page 6 Solid Secondary Standard (SSS) for UV - CDOM / FDOM, Optical Brighteners, and Crude Oil P/N 2100-904 Note: The UV SSS can be used for both C-FLUOR and Cyclops for the applications specified above, as well as Cyclops Refined Fuels and Tryptophan sensors.
-
Page 7: Functional Test For Digital C-Fluor With Connector
Digital C-FLUOR Submersible Probe 2.4 Functional Test for Digital C-FLUOR with connector To perform a functional check on a Digital C-FLUOR Probe, connect the probe to your computer following the instructions below, using the RS-232 Programming Cable as shown in Figure 1:... -
Page 8: Digital C-Fluor With No Connector
C-FLUOR Without Connector (Digital) P/N: 2120-000-“Identification Letter”-NC-232 Use the wiring guide in Appendix C to wire the Digital C-FLUOR Probe for serial communication with your computer or controller. Use the command list in Appendix E to configure your Digital C-FLUOR probe for your data logger or third-party instrument that accepts an ASCII data string output. -
Page 9: Digital C-Fluor Software & Functions
Digital C-FLUOR Submersible Probe 3. Digital C-FLUOR Software & Functions Software is used to configure Digital C-FLUOR Probes for digital integration and/or deployment. Digital C-FLUOR Probes do not store data internally, ASCII data strings are sent out via serial communication. -
Page 10: Data Streaming Mode
Digital C-FLUOR Submersible Probe 3.1.2 Data Streaming Mode Data streaming mode provides a continuous ASCII digital output string at selectable data rates. Rates can be accessed using the pull-down menu located next to the “Data Streaming” box. To activate Data Streaming mode you must first choose a Rate and then put a checkmark in the box next to the “Data Streaming”... -
Page 11: Calibration
Digital C-FLUOR Submersible Probe 3.2 Calibration The Digital C-FLUOR Probe is factory calibrated and the calibration values are stored in memory. The probe can be re-calibrated by users via software if site- specific calibrations are desired for increased accuracy. New calibration values will be stored in memory without overwriting or erasing factory calibration values. -
Page 12: Restoring Factory Calibration
3.2.2 Restoring Factory Calibration To restore the factory calibration of your Digital C-FLUOR Probe, you’ll need to connect your probe to a computer with Digital C-FLUOR software, communicate with your probe using the software and click on the Calibration tab. -
Page 13: Maintenance And Warranty
4. Maintenance and Warranty 4.1 Maintenance 4.1.1 Rinsing The C-FLUOR should be rinsed or soaked in fresh water following each deployment until it is completely clean again. 4.1.2 Care for the bulkhead connector A light coat of Silicone spray should be used on the rubber of the male pins of the bulkhead to aid in sealing. -
Page 14: Warranty Service
4.3 Warranty Service To obtain service during the warranty period, the owner shall take the following steps: 1. Write, email or call Turner Designs Technical Support and describe as precisely as possible the nature of the problem. Phone: 1 (877) 316-8049 Email: support@turnerdesigns.com... - Page 15 Digital C-FLUOR Submersible Probe 998-2131 Rev. 1.0 Page 15...
-
Page 16: A Specifications
Digital C-FLUOR Submersible Probe Appendix A: Specifications Parameter Specification Full Range Linearity 0.99 R CHL, RWT, PC, PE, F, CDOM/fDOM, Oil, & OB = 22mA Power Draw @ 12V Turbidity = 20mA 3 – 15 VDC Input Voltage Signal Output ASCII Digital Data String (RS-232) Ambient: 0 to 50 C... -
Page 17: B Recommended Lab Measurement Practices
Digital C-FLUOR Submersible Probe Appendix B: Recommended Lab Measurement Practices Recommended Lab Practices for Measurements The following steps will improve the accuracy and repeatability of your measurements, especially at low concentration levels: 1. Use a non-fluorescent container for your water samples. Note: Plastic may fluoresce and interfere with the sample’s fluorescence. -
Page 18: C Wiring Guide
Digital C-FLUOR Submersible Probe Appendix C: Wiring Guide C-FLUOR Function Connection Pins/Wires Number Supply Voltage PSU – Positive Connection 3 – 15 VDC PSU – Ground Connection Black Supply Ground, 0VDC Orange Receive Data Green Transmit Data Blue Digital Ground... -
Page 19: D Pigtail Cable And Connector Information
Wire Color Note: A maximum cable length of 30 feet can be used for digital data transfer from Digital C-FLUOR Probes to computers or data loggers. For long distance data transfer or communication, the digital RS232 signal should be converted to RS422. -
Page 20: E Digital C-Fluor Probe Command List
Procomm Plus, AlphaCom, etc or third-party communication systems. This is helpful for integrators as they don’t need software for programming integrated probes. Use the following settings for serial connection: Baud Rate: Use the rate that was displayed in the Digital C-FLUOR Software. Data bits: Parity: None...
