Infinity IT-9800 User Manual

Massage chairs
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual
IT-9800

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IT-9800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Infinity IT-9800

Summary of Contents for Infinity IT-9800

  • Page 1 User Manual IT-9800...

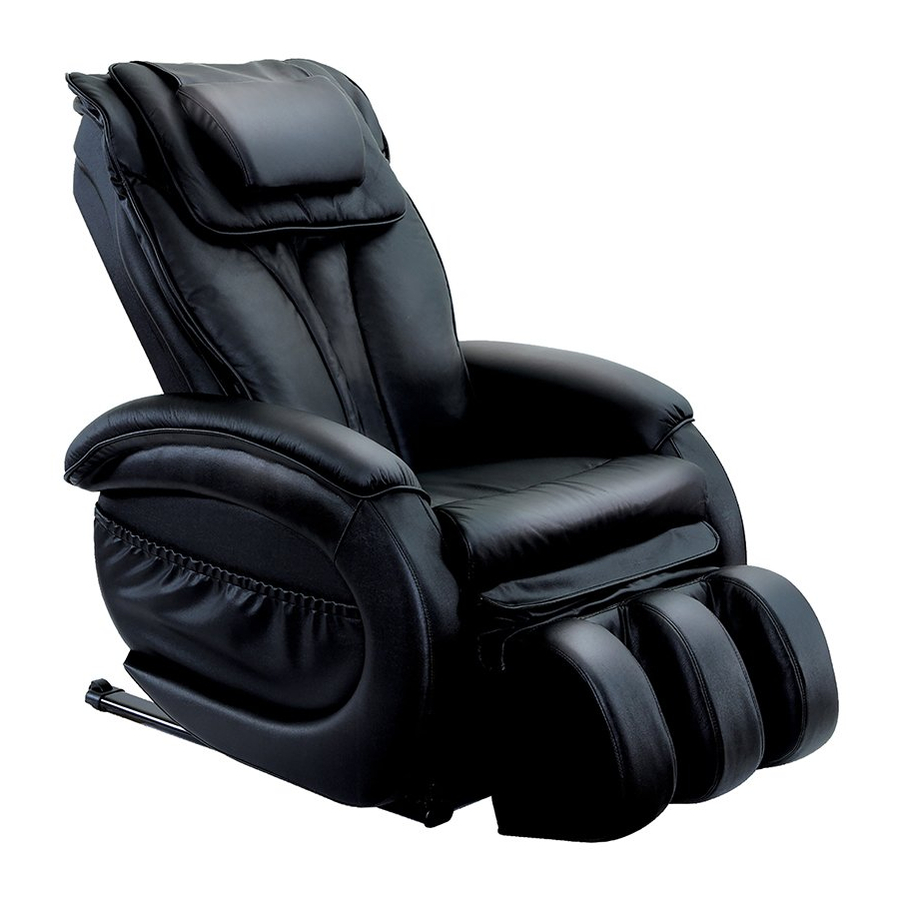

  • Page 2 Your Chair External Structure Headrest Pillow Backrest Flap LCD Controller Seat Remote Controller Holder Left Armrest Right Armrest Footrest Internal Structure Main Power Switch Box Power Switch AC Power Cord Back Cover Caster...
  • Page 3 With over a decade of experience designing, building and servicing massage chairs, Infinity takes pride in every chair sold, including yours. We are here for you. The US-based Customer Care team can be reached at (603) 910-5000 or visit us online at www.infinitymassagechairs.com and find valuable self service resources...
  • Page 4 See page 9 See page 14 See page 15 See page 15 Specifications Model IT-9800 & IT-9800TS Dimension of Main Body (in) 38 x 45 x 46 (L x W x H) Necessary Clearance to Wall (in) ” Net Weight (lbs) Shipping Weight (lbs) Max.

  • Page 5: Table Of Contents

    Table of Contents Before Getting Started Installation Site Clearance Space for the Chair Floor Protection Move Methods Connect to Power Chair Setup Getting Comfortable Main Power Switch Adjust Pillow Body Scanning Getting Out Of The Chair Chair Assembly Assembly Instructions LCD Features Icon Descriptions Operation...

  • Page 6: Before Getting Started

    Before Getting Started Installation Site Clearance Space for the Chair - 20” clearance for the recline of the backrest; 8” clearance for the extension of footrest and sliding forward of the chair. - Keep it 3 feet away from the TV, radio or other audio & video appliance to avoid signal interference.

  • Page 7: Move Methods

    Move Methods - Apply pressure to the back of the massage chair from behind to pivot on the Castors. Have a second person up front to guide the Footrest until in the correct position. Maintain clearances as mentioned above. Gently lower into place. Do not pull on the side arms. - Do not move the chair when there is user inside.

  • Page 8: Chair Setup

    Chair Setup Getting Comfortable Main Power Switch To power up the chair, flip the main power switch located on the right side of the chair back to ON. Power Main Cord Input Power Switch Fuse Location - Children should be supervised to ensure that they do not play with the chair or touch the power box. - Always unplug the massage chair from the electrical outlet immediately after use.

  • Page 9: Body Scanning

    Smart tip: To increase intensity in the neck and shoulder region, flip the pillow or the pillow and pillow pad up so you lay directly on the seat backpad. Body Scanning Select any of the 6 auto programs. The chair will automatically begin scanning your body, mapping your back, shoulders, and neck.

  • Page 10: Chair Assembly

    Chair Assembly Assembly Instructions Step 1 Large Pillow Seat Cushion Take out the chair from the box. Backrest Step 2 Pull back the backrest until you hear a “click” sound. Flip the backrest flap on the front of the chair and affix it to the Velcro on the seat board.
  • Page 11 Step 4 Put the seatrest cushion firmly on the seat board. Then, zip up the zipper of the front seat cushion. Place the large headrest pillow to the backrest flap and attach it to the Velcro on the back of the chair.

  • Page 12: Lcd Features

    LCD Features Icon Descriptions SPEED TIMER KNEADING AUTO TAPPING SHIATSU VIBRATION WIDTH HEAT CALF MASSAGE Operation ACU Points...

  • Page 13: Remote Control

    Remote Control ROCKING Press this button to stop the massage program. The chair (chair back STOP Button and footrest) will return to its full upright position. The roller will return to the storage area of the chair back. Users can press the AUTO buttons to select from 6 programmed mas- AUTO Button sages for different areas of the body.
  • Page 14 Operation Press the RELAX button for 38 / 30 / 15 / 10 / 6 minutes. Each of these RELAX Button settings has different recline angles with pre-programmed massage functions. Before the massage program starts, the rollers will auto- matically detect the body length from the shoulder to the waist and remember the acupressure points of the user.
  • Page 15 BACKREST UP/ Press Up or DOWN button to adjust the backrest to rise or recline. This function cannot work with RELAX 10 and 6 minutes programs. DOWN Button FOOTREST UP/ Press UP or DOWN button to adjust the footrest to rise or recline. This function cannot work with RELAX 10 and 6 minutes programs.

  • Page 16: Method Of Operation

    Operation Press this button to adjust the width for the TAPPING function. Users WIDTH Button can select either wide/medium/ or narrow. This function cannot work with KNEADING, MULTIPLE and SHIATSU functions. Press this button for 6 different speeds. You can use this function with SPEED Button KNEADING, TAPPING and MULTIPLE functions.

  • Page 17: Staying Safe

    Staying Safe Safety Precautions Precautions listed below will help to ensure proper use of this appliance. Read all instructions before using this appliance. - Improper operation may cause severe personal injury or substantial property damage. WARNING - Improper operation may cause personal injury or product damage. CAUTION - Prohibited.
  • Page 18 Staying Safe Cautions Regarding the Adapters and Cord - Always unplug this appliance from the electrical outlet immediately after using and before cleaning. - An appliance should never be left unattended when plugged in. Unplug from outlet when not in use. - Unplug from outlet during thunder or lightening storms, and before putting on or taking off parts.

  • Page 19: Fixing Issues

    Fixing Issues Trouble Shooting Problem Possible Cause No power. 1. Make sure power switch is on, the line icon (–) should be pushed in – Test chair, continue to next step if needed. 2. Check each end of the power cord (where the power cord plugs into the chair, and where it plugs into the wall outlet) and make sure each end is securely plugged in–...
  • Page 20 72 Stard Road, Seabrook, NH 03874 (603) 910-5000 www.infinitymassagechairs.com Version 2.3...
