Levenhuk NELSON Series User Manual

Levenhuk Monoculars
EN User Manual
A Eyepiece
B Compass
C Focus/diopter adjustment wheel
D Objective lens
E Strap mount
Caution! Never look directly at the Sun through this device, as this may cause permanent eye damage and even blindness.

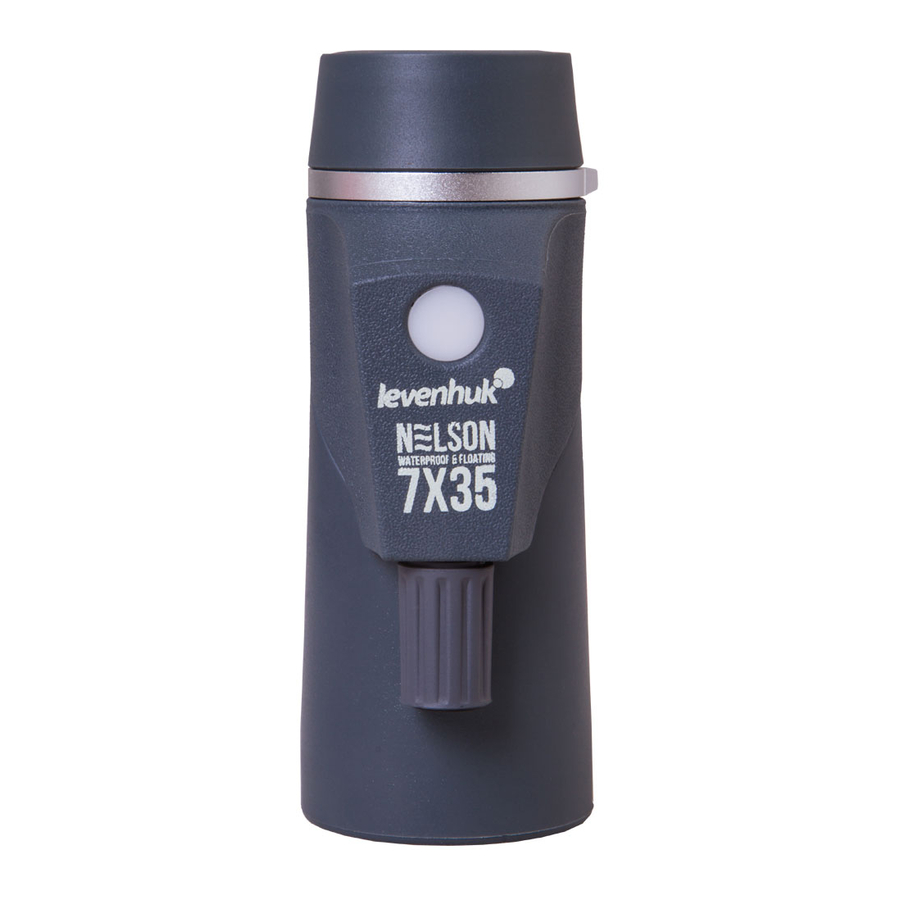

Reliable and sturdy, Levenhuk Nelson marine monoculars produce a perfect flat image and are an ideal choice for people who like to travel,
especially on the water, and often find themselves in extreme weather situations and harsh conditions. The rugged shell protects the intricate
optical system inside from any sudden impact or moisture, and withstands poor weather conditions, rain and sea waves. Features:
Features:
• Compact and lightweight
• Fully multi-coated optics made of BaK-4 glass
• Waterproof shell (IPX7)
• Quick and precise diopter adjustment
• Comfortable twist-up eyecup
• Built-in compass for easy orienting
• Rangefinder scale for convenient measuring of the observed object's size or distance to the object
The kit includes: monocular, objective lens cap, strap, pouch, optics cleaning wipe, user manual and warranty.
Focusing and diopter adjustment
Follow this procedure to adjust focus and diopter setting:
• Set the focus/diopter adjustment wheel to its original position (the white mark on the wheel should be opposite the value "0").
• Look through your monocular on an object located at a distance of about 100m from you.
• Set the sharpness of the image by further turning the focus setting to the right or left.
From time to time, you will have to refocus the lens, so remember the setup process for future use.
Using eyecup
We recommend setting the eyepiece in the lowest position for observations while wearing eyeglasses. Turn the eyecup upward in a spiral (for
upper position); turn the eyecup downward in a spiral (for lower position).
Do not apply excessive pressure as this may damage the eyecup.
A
E
D
B
C
