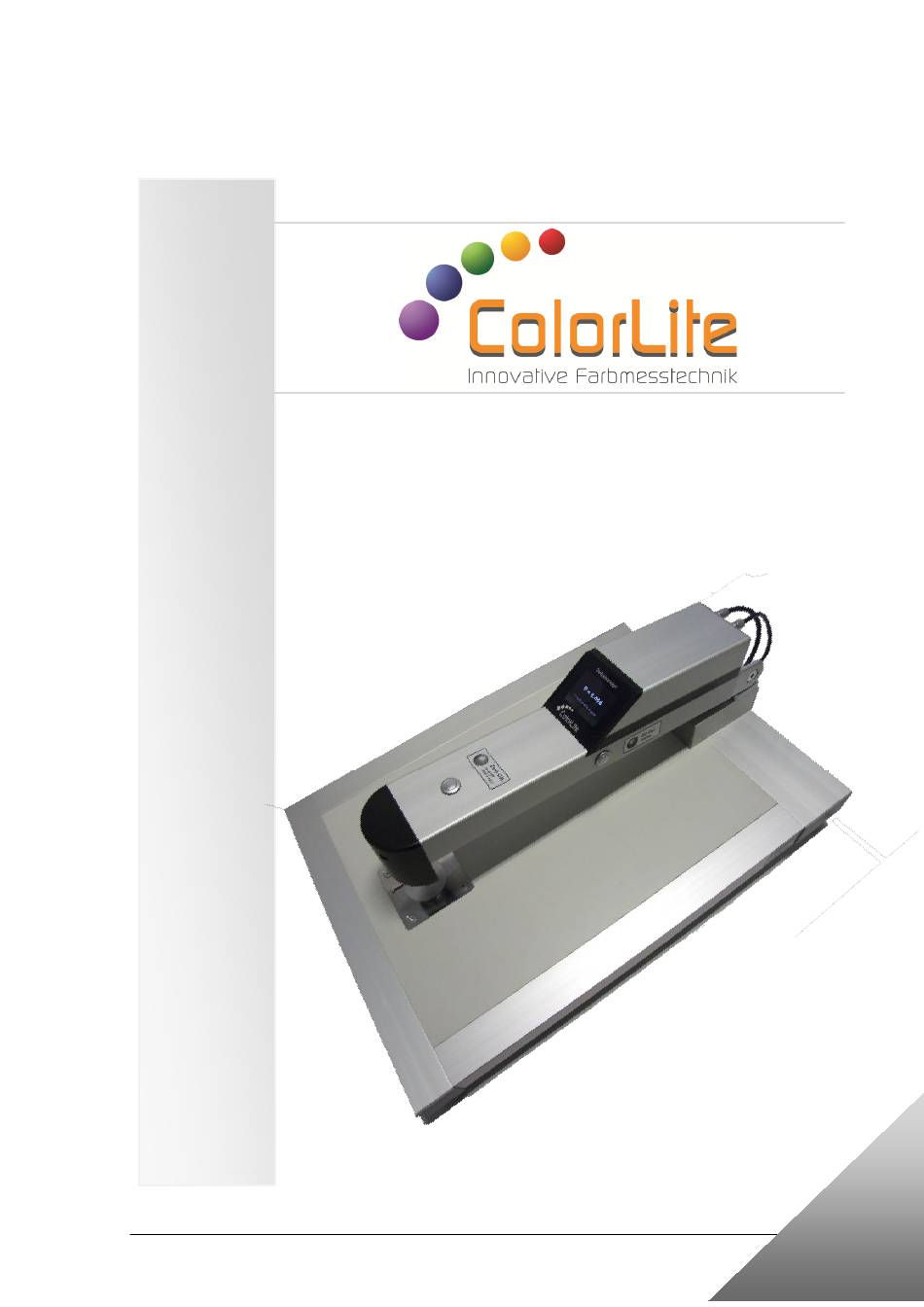

  • Page 1 User Manual Densitometer - ColorLite sd350 User Manual sd350...

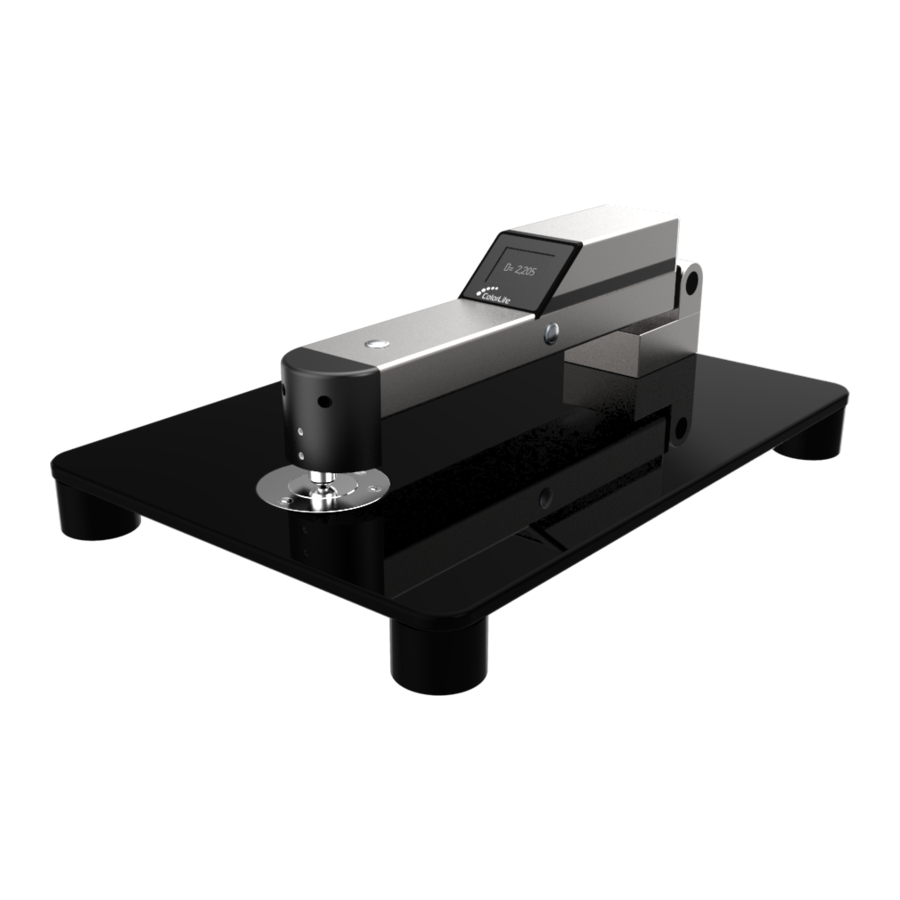

  • Page 2 Texteintrag Densitometer The ColorLite sd350 densitometer is a system for measuring optical density for example of films. The sample is placed on the table and with help of the arm supporting the probe head, the measurement is triggered. The display on the arm is used to show measured values and menu settings.
  • Page 3 Arm is in an upper position: ON/OFF (2 sec. duration). Menu navigation. Arm pressed down: Zero calibration. S2-Button („D3 Cal.“) functions Arm is in an upper position: Settings menu is opened (hold for 3 sec.) Arm pressed down: Calibration with the density 3 filter | User Manual sd350...
  • Page 4 S1 button to start the calibration. When the calibration is finished, the density value will be displayed. Now the arm can be returned to the horizontal position. (Fig.: 4 - Aperture) | User Manual sd350...

  • Page 5: Settings Menu

    (see Fig.: 6 - exit and Fig.: 7 - Exit 2). (Bild 5 – Main menu) (Bild 6 – Exit) (Bild 7 – Exit 2) | User Manual sd350...
  • Page 6 "Exit" (see Fig.: 7 – Exit 2). (Fig.: 8–Language selection) "Display CIE L*a*b* values": Toggle between displaying the CIE L*a*b* values and the density value by pressing the S2 button and letting it go immediately. (Fig.: 9 – CIE L*a*b*-Output) | User Manual sd350...
  • Page 7 „Calibration warning D3“: The default setting for the D3 calibration warning is 7 days and 2 hours (d7). „Angle“: The standard observer angle default setting is "2°". "Illuminant ": The default standard illuminant setting is set to "D65". | User Manual sd350...
  • Page 8 0.5 to 2.0 seconds dependent on density Language German, English Power supply 6 V/1.4 A PC-Interface USB 2.0 Delivery includes Aperture, USB-cable, Power supply Climatic conditions Ambient temperature: 15°C to 45°C - Relative humidity: max. 85% non-condensing | User Manual sd350...
  • Page 9 Texteintrag ColorLite GmbH Am Mühlengraben 1 37191 Katlenburg-Lindau Germany +49 (0) 5552 999 580  +49 (0) 5552 999 589  info@colorlite.de  www.colorlite.de  | User Manual sd350...
