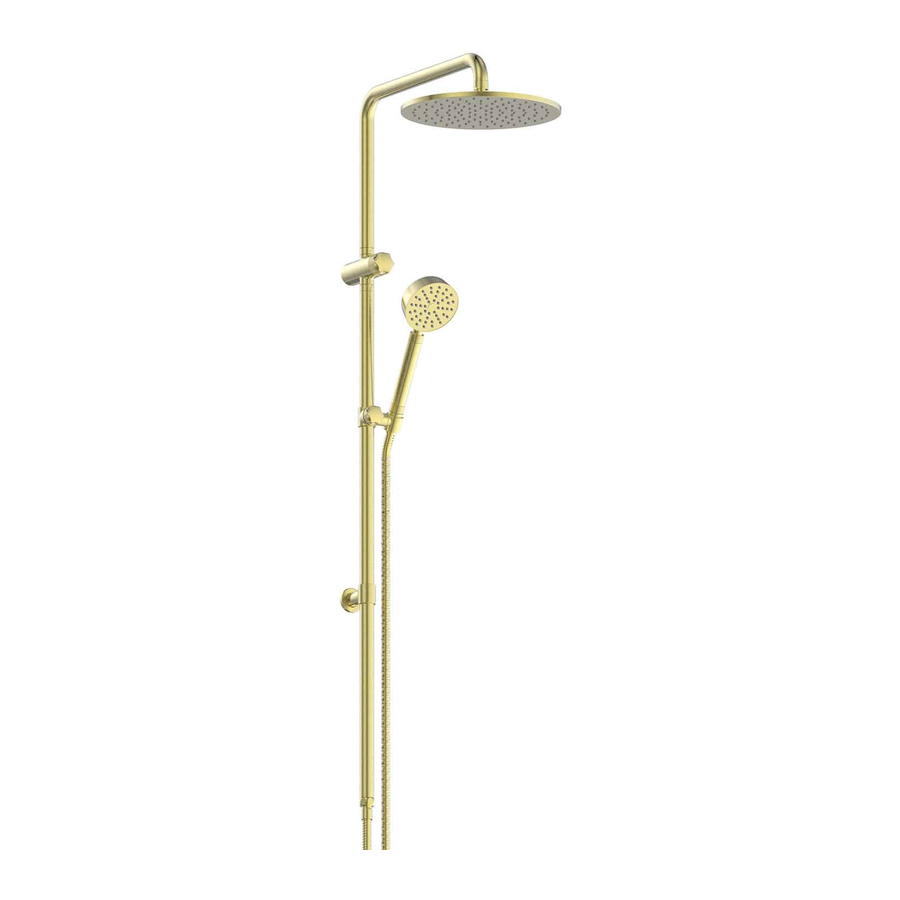

GREENS TEXTURA TWIN RAIL SHOWER Installation Instructions

Install Hose And Roses:
1. Install hose and ensure sealing washers are in place.
a. Nut end to lower outlet on rail and tapered end to the hand set.
2. Install over head rose to rail and hand set to hose and ensure sealing washer is
is in place.
Diverter Operation:
1.
The diverter is a manual operation turn handle either to the left or to the right.
2. NOTE: This is not a shut off valve, must always shut off at mixer after use.
Please contact country of purchase .
NZ:
Distributed by: Greens Global Limited
PO Box 5055, Hamilton, 3200
22 The Boulevard, Te Rapa, Hamilton 3200
Phone: 07 849 0109, Fax: 07 849 0540
Website: www.greenstapware.com
Email: nzsales@greenstapware.com
Service Hotline: 0800 655 455
Australia:
Distributed by: Greens Global (Australia) Ltd
10/101 Wedgewood Rd, Hallam, Victoria 3803
Phone: 1800 244 487 Fax: 1800 244 212
Email: aussales@greenstapware.com
Website: www.greenstapware.com
Service Hotline: 1800 244 992
TEXTURA TWIN RAIL SHOWER
INSTALLATION INSTRUCTIONS
PRODUCT #
Technical Data
•
Suitable for use with high pressure water supply only.
Not suitable for gravity-fed water heaters, low and unequal pressure networks.
•
Minimum Water pressure: 150kpa.
•
Maximum water pressure: 500kpa.
•
Pressure over 500kpa will require a limiting valve.
•
Installation shall be in accordance with the AS/NZS3500 series of standards.
•
Flow rate of 3 star 9 l/m has been rated under the Australian Water Efficiency Labeling
Scheme (WELS).
BATCH #
Twist lock
Slide control
#41208 09/19
