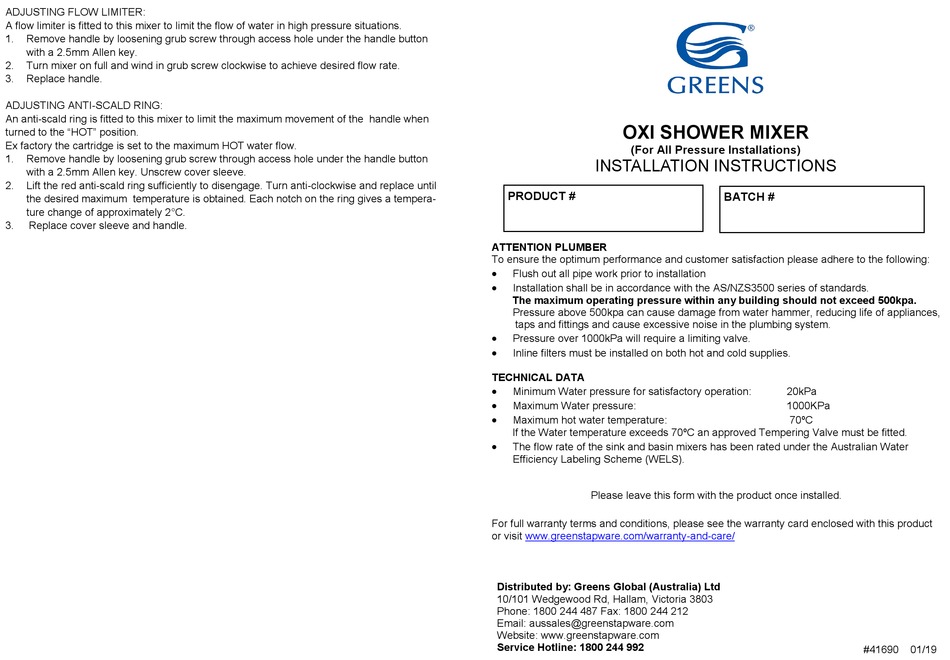

GREENS OXI Installation Instructions

ADJUSTING FLOW LIMITER:
A flow limiter is fitted to this mixer to limit the flow of water in high pressure situations.
1. Remove handle by loosening grub screw through access hole under the handle button
with a 2.5mm Allen key.
2. Turn mixer on full and wind in grub screw clockwise to achieve desired flow rate.
3. Replace handle.
ADJUSTING ANTI-SCALD RING:
An anti-scald ring is fitted to this mixer to limit the maximum movement of the handle when
turned to the "HOT" position.
Ex factory the cartridge is set to the maximum HOT water flow.
1. Remove handle by loosening grub screw through access hole under the handle button
with a 2.5mm Allen key. Unscrew cover sleeve.
2. Lift the red anti-scald ring sufficiently to disengage. Turn anti-clockwise and replace until
the desired maximum temperature is obtained. Each notch on the ring gives a tempera-
ture change of approximately 2°C.
3. Replace cover sleeve and handle.
OXI SHOWER MIXER
(For All Pressure Installations)
INSTALLATION INSTRUCTIONS
PRODUCT #
ATTENTION PLUMBER
To ensure the optimum performance and customer satisfaction please adhere to the following:

Flush out all pipe work prior to installation

Installation shall be in accordance with the AS/NZS3500 series of standards.
The maximum operating pressure within any building should not exceed 500kpa.
Pressure above 500kpa can cause damage from water hammer, reducing life of appliances,
taps and fittings and cause excessive noise in the plumbing system.

Pressure over 1000kPa will require a limiting valve.

Inline filters must be installed on both hot and cold supplies.
TECHNICAL DATA

Minimum Water pressure for satisfactory operation:

Maximum Water pressure:

Maximum hot water temperature:
If the Water temperature exceeds 70ºC an approved Tempering Valve must be fitted.

The flow rate of the sink and basin mixers has been rated under the Australian Water
Efficiency Labeling Scheme (WELS).
Please leave this form with the product once installed.
For full warranty terms and conditions, please see the warranty card enclosed with this product
or visit www.greenstapware.com/warranty-and-care/
Distributed by: Greens Global (Australia) Ltd
10/101 Wedgewood Rd, Hallam, Victoria 3803
Phone: 1800 244 487 Fax: 1800 244 212
Email: aussales@greenstapware.com
Website: www.greenstapware.com
Service Hotline: 1800 244 992
BATCH #
20kPa
1000KPa
70ºC
#41690 01/19
