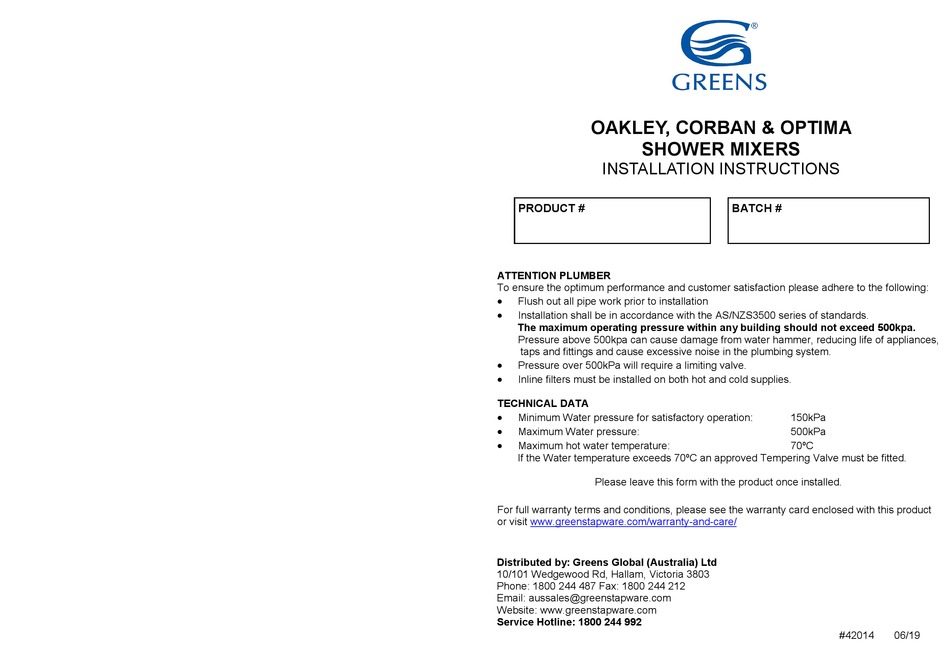

GREENS OAKLEY Installation Instructions

OAKLEY, CORBAN & OPTIMA
SHOWER MIXERS
INSTALLATION INSTRUCTIONS
PRODUCT #
ATTENTION PLUMBER
To ensure the optimum performance and customer satisfaction please adhere to the following:

Flush out all pipe work prior to installation

Installation shall be in accordance with the AS/NZS3500 series of standards.
The maximum operating pressure within any building should not exceed 500kpa.
Pressure above 500kpa can cause damage from water hammer, reducing life of appliances,
taps and fittings and cause excessive noise in the plumbing system.

Pressure over 500kPa will require a limiting valve.

Inline filters must be installed on both hot and cold supplies.
TECHNICAL DATA

Minimum Water pressure for satisfactory operation:

Maximum Water pressure:

Maximum hot water temperature:
If the Water temperature exceeds 70ºC an approved Tempering Valve must be fitted.
Please leave this form with the product once installed.
For full warranty terms and conditions, please see the warranty card enclosed with this product
or visit www.greenstapware.com/warranty-and-care/
Distributed by: Greens Global (Australia) Ltd
10/101 Wedgewood Rd, Hallam, Victoria 3803
Phone: 1800 244 487 Fax: 1800 244 212
Email: aussales@greenstapware.com
Website: www.greenstapware.com
Service Hotline: 1800 244 992
BATCH #
150kPa
500kPa
70ºC
#42014 06/19
