Black Box Corporation
www.blackbox.com e-mail: info@blackbox.com

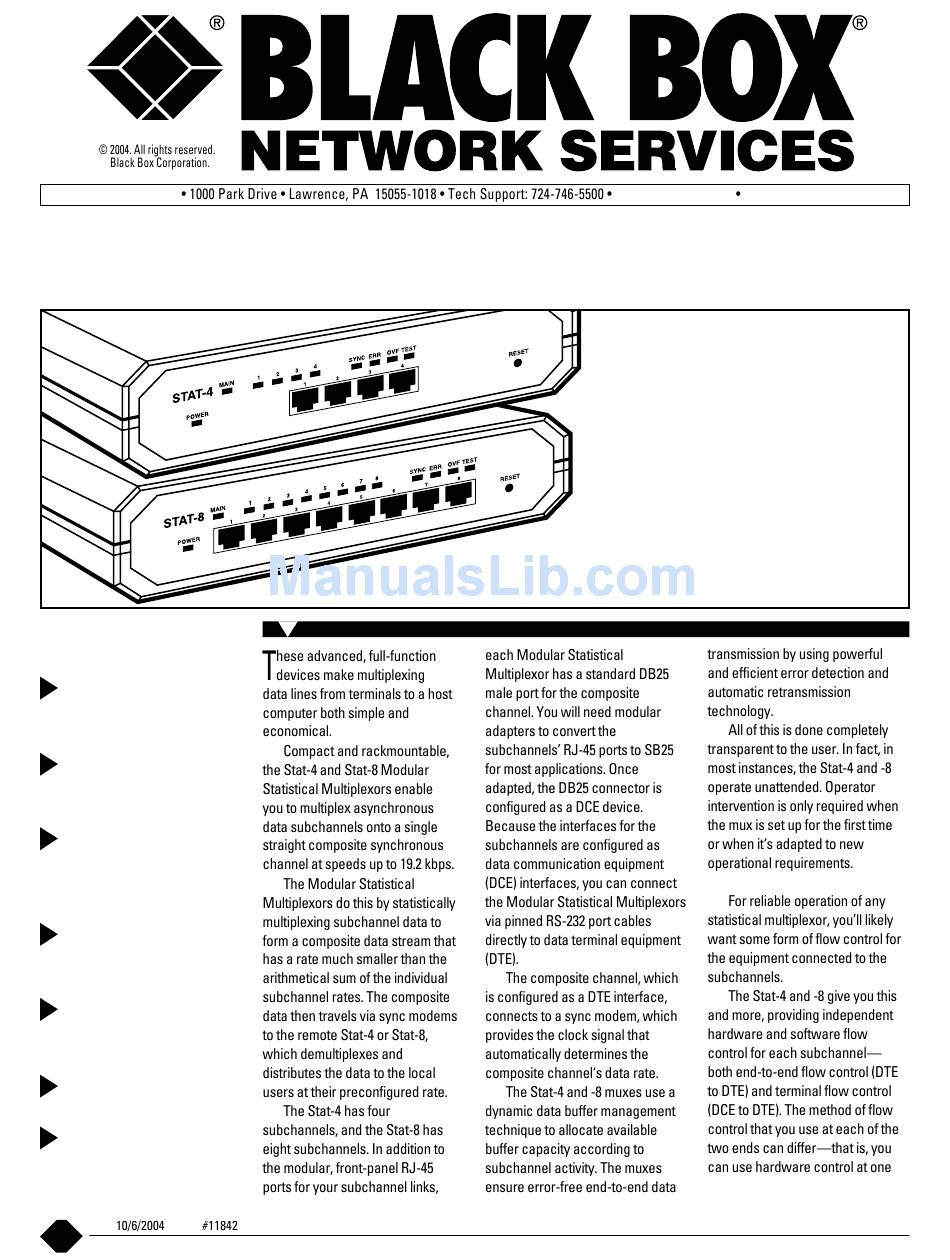

MODULAR STATISTICAL MULTIPLEXORS (STAT-4 & STAT-8)
Connect four or eight async
devices over a single sync link.
Key Features
Multiplex 4 or 8 async
subchannels onto one
sync channel.
Send async data
at 19.2 kbps over
composite sync link.
Demux data at remote
end and distribute data
to users at a pre-
Efficient flow control.
configured baud rate.
Easy to configure with
standard CRT or an
IBM
®
style PC.
User-selectable
hardware and
software flow control.
Local and remote
loopback options.
Settings stored in non-
volatile memory.
(continued on page 2)
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Black Box MX864A
Summary of Contents for Black Box MX864A
- Page 1 Black Box Corporation www.blackbox.com e-mail: info@blackbox.com MODULAR STATISTICAL MULTIPLEXORS (STAT-4 & STAT-8) Connect four or eight async devices over a single sync link. Key Features Multiplex 4 or 8 async subchannels onto one sync channel. Send async data at 19.2 kbps over composite sync link.
-
Page 2: Ordering Information
(continued from page 1) Menu-based setup. Easy to monitor and troubleshoot. Specifications Approvals: Connectors: Buffer Size: Clocking: Indicators: Data Format: Temperature Tolerance: Diagnostics: Humidity Tolerance: Flow Control: Power: Multiplexor Type: Size: Maximum Speed: MTBF: Weight: Interface: Ordering Information ITEM NOTE: Must be used in pairs. NOTE: If you need rackmount ears, call Tech Support.
