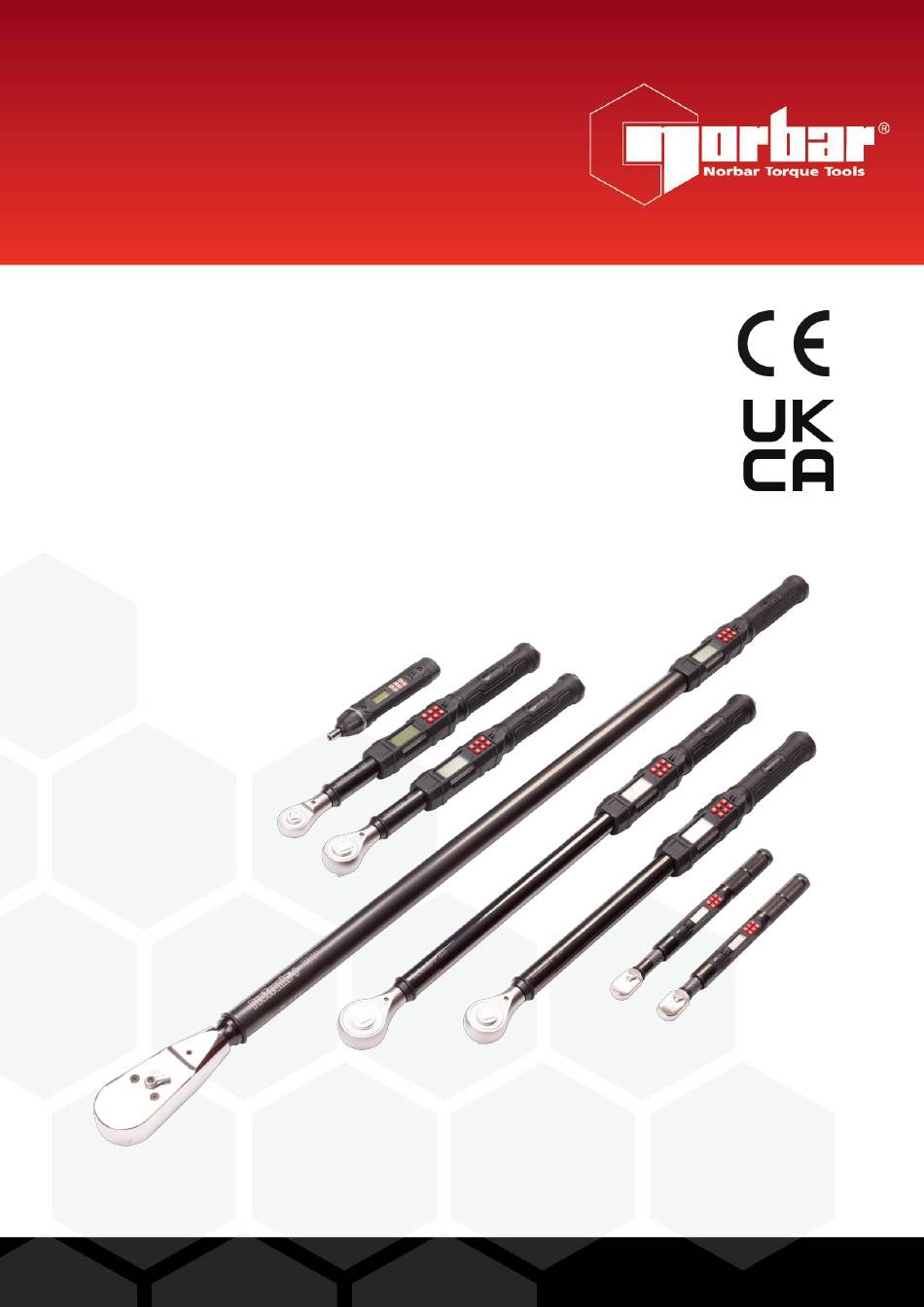

- Page 1 QUICK REFERENCE GUIDE ® PROTRONIC Part Number 34486 | Issue 1 | Original Instructions (English)
- Page 2 FULL OPERATOR’S MANUAL LINKS Read the full manual in the links below completely before using ProTronic ® For the most up-to-date version of the Operators Manual please visit Pour obtenir la version la plus récente du manuel technique, veuillez vous rendre sur Besuchen Sie die Webseite, um die aktuellste Version der Bedienungsanleitung zu erhalten.
- Page 3 IMPORTANT SAFETY INSTRUCTIONS WARNING: RISK OF FLYING PARTICLES. OVER-TORQUING CAN CAUSE BREAKAGE. AN OUT OF CALIBRATION ANGLE TOOL CAN CAUSE PART OR TOOL BREAKAGE. BROKEN HAND TOOLS, SOCKETS OR ACCESSORIES CAN CAUSE INJURY. EXCESS FORCE CAN CAUSE CROWFOOT OR FLARE NUT TOOL SLIPPAGE. •...
- Page 4 USB BLUETOOTH® SMART ADAPTER Bluetooth® smart adaptor provided for future PC connectivity (applicable to Plus tools only.) Keep this adaptor safe. BUTTON FUNCTIONS Button Function Button Function On/Off and Re-Zero Decrease Value Units – Hold for 3 seconds Mode Select, Hold for 3 to add/edit pre-sets seconds for Menu and Enter LCD Backlight and Peak...
- Page 5 Turn on Tool Hold tool in a vertical position, momentarily press POWER button. Norbar logo is displayed followed by torque re-zeroing screen. If previous measurement was angle measurement, then angle re-zeroing screen follows the torque zeroing screen. After re-zeroing, the target torque or target angle screen is displayed depending on previous measurement mode.
- Page 6 The CE mark was first applied in: 2021. The authorised representative within the European Union (EU) is: Francesco Frezza Snap-on Equipment S.r.l. Via Prov. Carpi, 33 42015 Correggio RE Italy Signed for and on behalf of Norbar Torque Tools Ltd. Signed: Full Name: Trevor Mark Lester B.Eng.
- Page 7 The CE mark was first applied in: 2021. The authorised representative within the European Union (EU) is: Francesco Frezza Snap-on Equipment S.r.l. Via Prov. Carpi, 33 42015 Correggio RE Italy Signed for and on behalf of Norbar Torque Tools Ltd. Signed: Full Name: Trevor Mark Lester B.Eng.
- Page 8 Tel + 61 (0)8 8292 9777 Tel + 86 21 6145 0368 Email norbar@norbar.com.au Email sales@norbar.com.cn NORBAR TORQUE TOOLS INDIA PVT. LTD NORBAR TORQUE TOOLS INC Plot No A-168, Khairne Industrial Area, 36400 Biltmore Place, Willoughby, Thane Belapur Road, Mahape, Ohio, 44094 Navi Mumbai –...
