3.3.4 WALL MOUNTING

 Drill four holes on the wall using the position of four holes on the mounting rack as a guide. Fix the
mounting rack to the wall using four masonry bolts (M10x110mm).
 Lift the enclosure onto the mounting rack and screw hex bolts (M8x20mm) to secure the enclosure to the
mounting rack.
 After local commissioning, close the door, tighten the four pentagon socket bolts at four corners of the
door with the Allen key and lock the door.
Mounting Rack
M10X110 Masonry Bolt
Enclosure
ENU STATUS : 1-0-0
INSTALLATION GUIDE FOR RX-1839

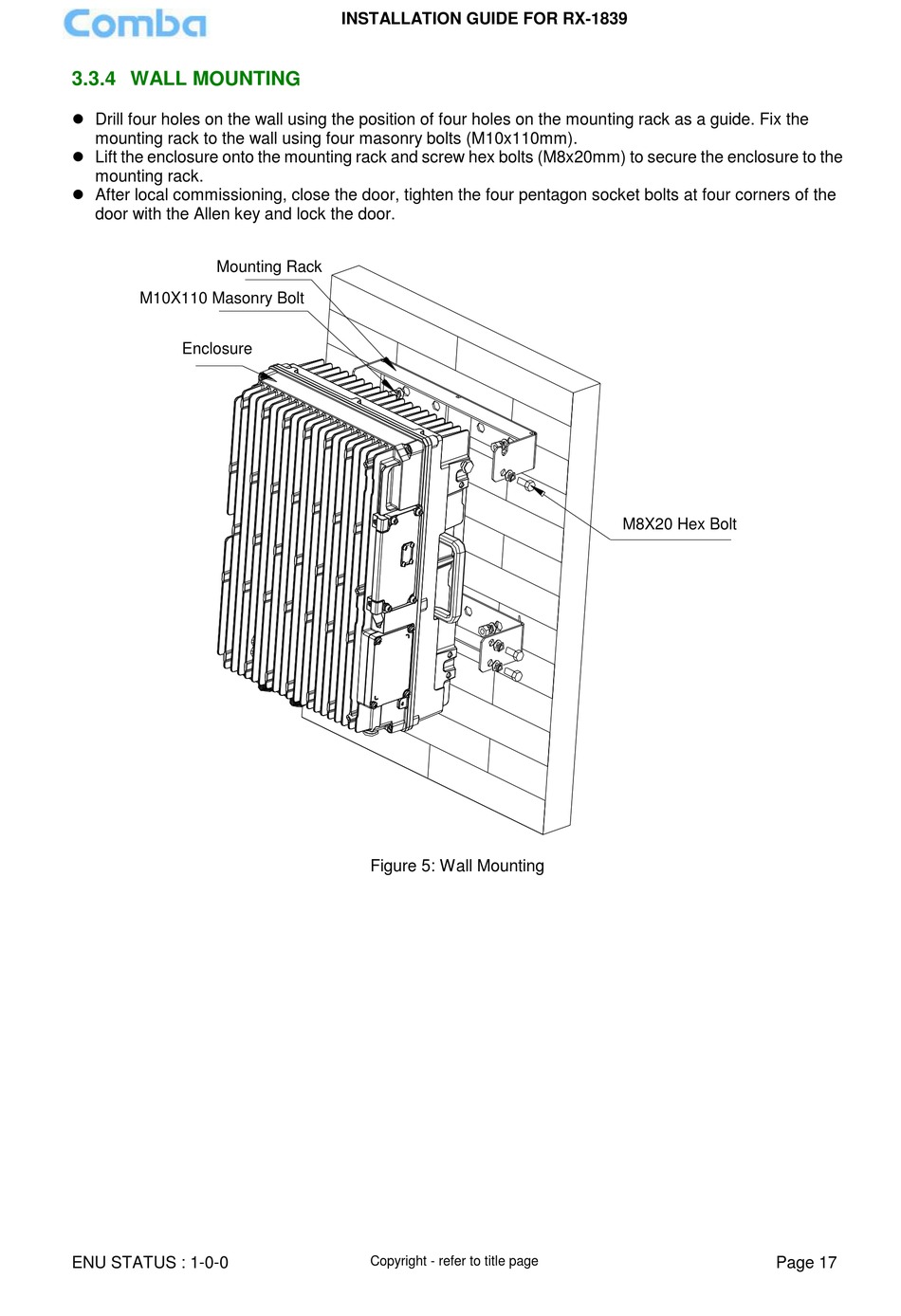

Figure 5: Wall Mounting
Copyright - refer to title page
M8X20 Hex Bolt
