Installation Manual
FREE 24-hour Tech Support: 724-746-5500
blackbox.com
© 2007. All rights reserved. Black Box Corporation.
CCTV Passive Hubs and Baluns
Send video and/or audio
Send video and/or audio
across ordinary CAT5 cable!
across ordinary CAT5 cable!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Black Box IC562A
Summary of Contents for Black Box IC562A

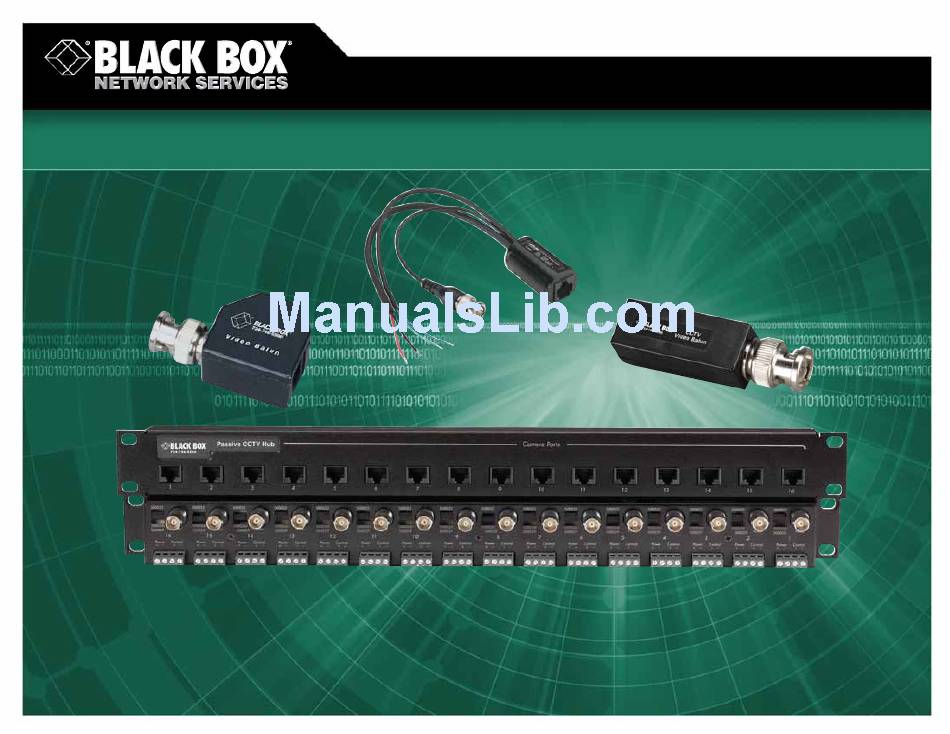

- Page 1 FREE 24-hour Tech Support: 724-746-5500 blackbox.com © 2007. All rights reserved. Black Box Corporation. CCTV Passive Hubs and Baluns Send video and/or audio Send video and/or audio across ordinary CAT5 cable! across ordinary CAT5 cable!
- Page 2 The hubs support NTSC, PAL, and SECAM video standards. Two models are available: one with RJ-45 and coax connectors (IC562A) and another with RJ-45 and 2-pole screw terminal twisted-pair connectors (IC563A). These 1U-high rackmount hubs work with the CCTV Mini Coax (IC451A) and Passthrough (IC452A) Baluns.
- Page 3 Humidity Tolerance — Up to 95%, noncondensing Power — From the interface Size — IC562A–IC563A: 1.75"H x 19"W x 1.5"D (4.4 x 48.3 x 3.8 cm); IC440A: 1"H x 0.8"W x 1.8"D (2.5 x 2 x 4.6 cm); IC444A: 0.6"H x 0.6"W x 2.3"D (1.5 x 1.5 x 5.8 cm);...
