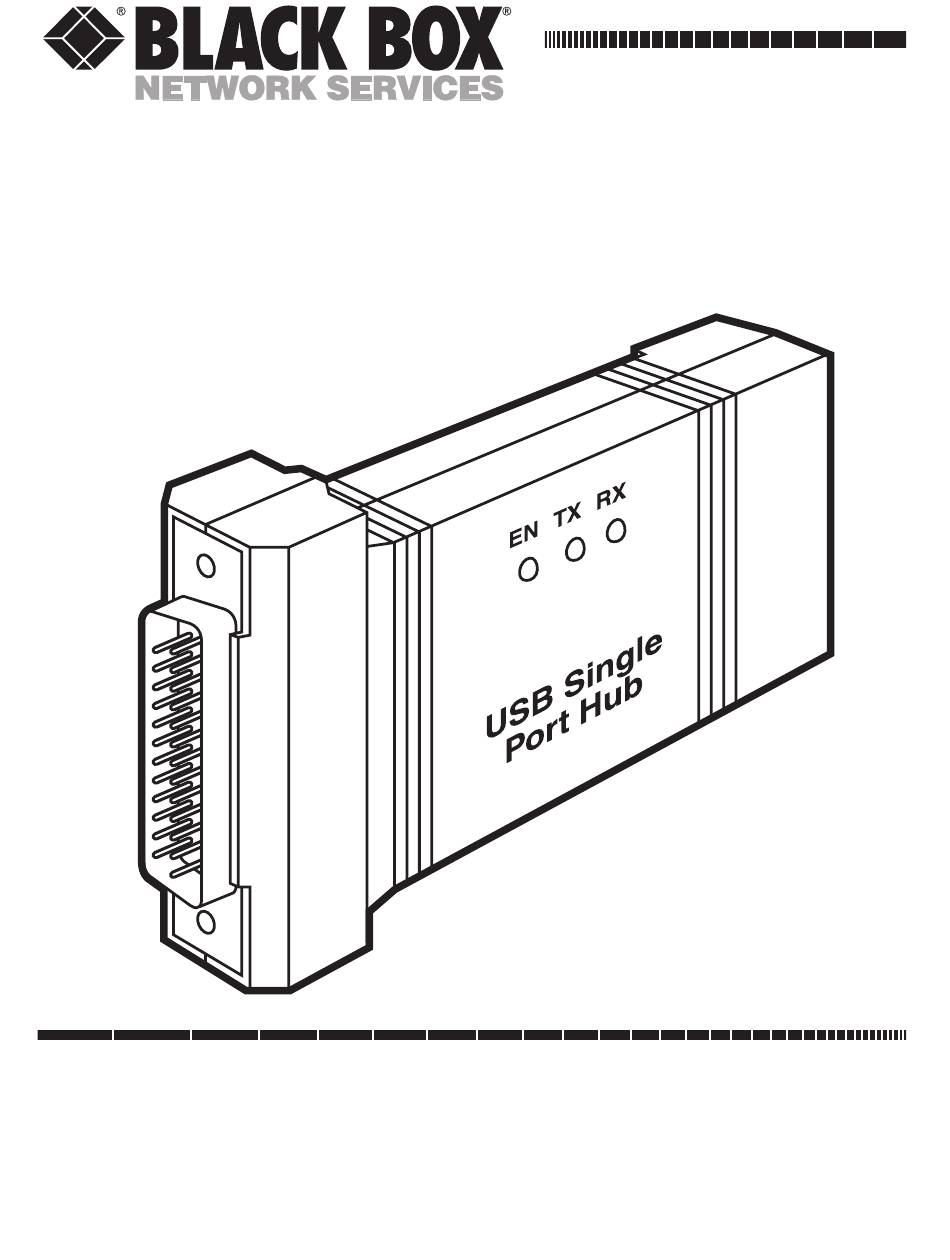

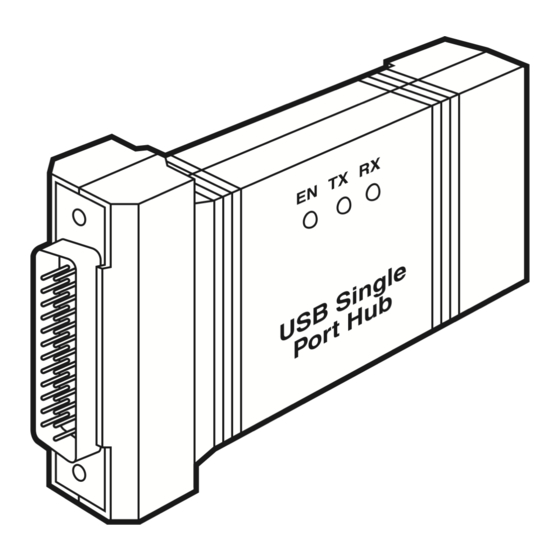

IC265A
USB Single-Port Hub (RS-232)
CUSTOMER SUPPORT INFORMATION
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Black Box IC265A
Summary of Contents for Black Box IC265A
- Page 1 Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com...
- Page 2 FCC AND IC RFI STATEMENTS/CE NOTICE FEDERAL COMMUNICATIONS COMMISSION and INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication.
- Page 3 USB SINGLE-PORT HUB (RS-232) NORMAS OFICIALES MEXICANAS (NOM) ELECTRICAL SAFETY STATEMENT INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
- Page 4 NOM STATEMENT 10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor como radiadores, registros de calor, estufas u otros aparatos (incluyendo amplificadores) que producen calor. 11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el instructivo de operación, o como se indique en el aparato.
- Page 5 USB SINGLE-PORT HUB (RS-232) TRADEMARKS USED IN THIS MANUAL ® is a registered trademark of International Business Machines Corporation. is a registered trademark of Underwriters ® Laboratories Incorporated. Windows ® is a registered trademark of Microsoft Corporation. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
-
Page 6: Table Of Contents
A.1 Before Calling Technical Support ..14 A.2 Calling Black Box ..... . 15 A.3 Shipping and Packaging . -
Page 7: Specifications
USB SINGLE-PORT HUB (RS-232) 1. Specifications 1.1 General Manufacturing: UL ® 94V0 rating; 100% electrically tested; solder mask over bare copper or solder mask over tin nickel. Connectors: (1) DB25 male; (1) USB Type B Indicators: LEDs: (1) USB Enabled, (1) TX, (1) RX Mean Time Between Failures (MTBF): Greater than 150,000 hours Temperature Tolerance: Operating: 32 to 122°F (0 to... -
Page 8: Connector Pin Assignments (Db25 Male)
CHAPTER 1: Specifications 1.2 Connector Pin Assignments (DB25 Male) Name Pin # Mode Transmit Data Output Request to Send Output Data Terminal Ready Output Ground — Receive Data Input Data Carrier Detect Input Data Set Ready Input Clear to Send Input Ring Indicator Input... -
Page 9: Introduction
USB SINGLE-PORT HUB (RS-232) 2. Introduction 2.1 Overview The USB Single-Port Hub (RS-232) equips the PC with one USB to RS-232 asynchronous serial port, providing a versatile interface for common RS-232 needs (modem, mouse, and plotter). The advantage of this product over more traditional approaches is that it doesn’t require opening the computer case, nor does it require resources such as I/O ports or IRQs. -
Page 10: Technical Description
CHAPTER 2: Introduction 2.3 Technical Description The USB Single-Port Hub (RS-232) uses a USB UART. This chip features programmable baud rate, data format, a 128-byte dual-port TX buffer, and a 384-byte dual-port RX buffer. The RS-232 transceiver supports data rates up to 460.8 kbps. 2.4 Features •... -
Page 11: Installation
USB SINGLE-PORT HUB (RS-232) 3. Installation 3.1 Operating System Installation Choose Install Software at the beginning of the CD. Select the Serial I/O software drivers and install SeaCOM. 3.2 System Installation The screen shots pictured in this section are taken from a Windows ®... - Page 12 CHAPTER 3: Installation Connect the USB Single-Port Hub (RS-232) to an upstream Host or Hub. New Hardware Found USB Single-Port Hub Windows has found new hardware and is locating the software for it. Figure 3-1. New Hardware Found screen. This indicates that the system has recognized the new device and will now locate a driver.
- Page 13 USB SINGLE-PORT HUB (RS-232) Since you have already installed the software by running “Setup,” simply click “Next” to proceed. The drivers that were installed during setup will automatically be used to configure the adapter. Add New Hardware Wizard USB Single-Port Hub Windows has finished installing the new hardware device.
- Page 14 CHAPTER 3: Installation System Properties General Device Manager Hardware Profiles Performance View device by type View device by connection Computer CD ROM Disk Drives Display adapters Floppy disk controllers Hard disk controllers Keyboard Monitors Mouse Multi-function adapters Network adapters Ports (C0M & LPT) Communications Port (C0M1) Printer Port (LPT1) USB Single-Port Hub (C0M4)
-
Page 15: Appendix A. Troubleshooting
USB SINGLE-PORT HUB (RS-232) Appendix A. Troubleshooting A.1 Before Calling Technical Support Serial Utility test software is supplied with the USB Single-Port Hub (RS-232) and will be used in the troubleshooting procedures. Using this software and following these simple steps, most common problems can be eliminated without calling Technical Support. -
Page 16: Calling Black Box
(RS-232) is malfunctioning, do not attempt to alter or repair the unit. It contains no user-serviceable parts. Contact Black Box at 724-746-5500. Before you do, make a record of the history of the problem. We will be able to provide more efficient and... -
Page 17: Shipping And Packaging
• Package it carefully. We recommend that you use the original container. • If you are shipping the USB Single-Port Hub (RS-232) for repair, make sure you include everything that came in the original package. Before you ship, contact Black Box to get a Return Authorization (RA) number. -
Page 18: Appendix B. Electrical Interface Rs-232
APPENDIX B: Electrical Interface RS-232 Appendix B. Electrical Interface RS-232 Quite possibly the most widely used communication standard is RS-232. This implementation has been defined and revised several times and is often referred to as RS-232 or EIA/TIA-232. The IBM ®... - Page 19 USB SINGLE-PORT HUB (RS-232) The RS-232 and the EIA/TIA-574 specification define two types of interface circuits, Data Terminal Equipment (DTE) and Data Circuit-Terminating Equipment (DCE). The USB Single-Port Hub (RS-232) is a DTE device.
-
Page 20: Appendix C. Asynchronous Communications
APPENDIX C: Asynchronous Communications Appendix C. Asynchronous Communications Serial data communications implies that individual bits of a character are transmitted consecutively to a receiver that assembles the bits back into a character. Data rate, error checking, handshaking, and character framing (start/stop bits) are pre-defined and must correspond at both the transmitting and receiving ends. - Page 21 USB SINGLE-PORT HUB (RS-232) Figure C-1. Asynchronous communications bit diagram. This special bit is called the parity bit. Parity is a simple method of determining if a data bit has been lost or corrupted during transmission. There are several methods for implementing a parity check to guard against data corruption.
- Page 22 APPENDIX C: Asynchronous Communications for asynchronous communications have to be the same at both the transmitting and receiving ends. The communication parameters are baud rate, parity, number of data bits per character, and stop bits (that is, 9600,N,8,1).
- Page 23 © Copyright 2001. Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
