Endon Pipe Instruction Manual

Safety Warnings

• This product is only suitable for connection to a 240V~50Hz supply in accordance with current IEE wiring
regulations, and should be installed in accordance with local building regulations. It is for indoor use only, and is
not suitable for a bathroom location.
• Before installing your light fitting always switch off the mains supply, and remove the appropriate fuse or switch
off the appropriate circuit breaker before commencing installation. Ensure that no one else has access that would
enable the supply to be inadvertently reconnected.
• This is a Class 1 product and must be Earthed. The terminal blocks are supplied according to requirements of
the fitting.
• Never fit bulbs of a higher wattage than those specified on the label (as these may cause overheating and
damage the fitting).
• This product may contain delicate parts – be careful during handling and maintenance to avoid breakage.
• If you are in any doubt about your competence please consult a qualified electrician.
• If any modification is made it will invalidate the warranty and may render the product unsafe.
• This product is dimmable when used with a suitable bulb and switch.

Care Information

Allow 10 minutes to cool before replacing, adjusting or cleaning.
Clean with a dry cloth only. Do not use liquid or abrasive cleaners on this product.

Assembly/ User Instructions

Please read these instructions carefully before fitting and retain for reference. Check the packaging and make
sure that you have all the required parts. Follow each assembly step in order to prevent incorrect assembly.
Ensure that the product is fully assembled as illustrated before use.

The Light pack contains:

Light fitting
Fixing pack
These assembly diagrams are intended as a guide – if in doubt consult a qualified electrician.
1. Decide on the position of the light fitting, or remove existing light fitting. Take a note of the position of the
electrical connections. Ensure there is a solid mounting surface, preferably a wooden joist or joist bridge to
support the weight of the light fitting.
2. Remove the two side screws (A) and retain them for re-use. Use the fixing bracket (B) as a template to mark
the screw holes, and secure to the wall with appropriate fixings (C), making sure the bracket is correctly
aligned.
3. Support your fitting and connect the house wiring to the terminal block - see expanded wiring diagram D).
NOTE: This is a Class 1 product and MUST be earthed.
4. Secure the wall cup over the bracket by using the screws (A) removed in Point 2.
5. Fit the bulbs (E - not supplied). NOTE: Never fit bulbs of a higher wattage than those specified on the
label (as these may cause overheating and damage the fitting).
6. Turn on the power and test.
Endon Lighting, LS9 0SE

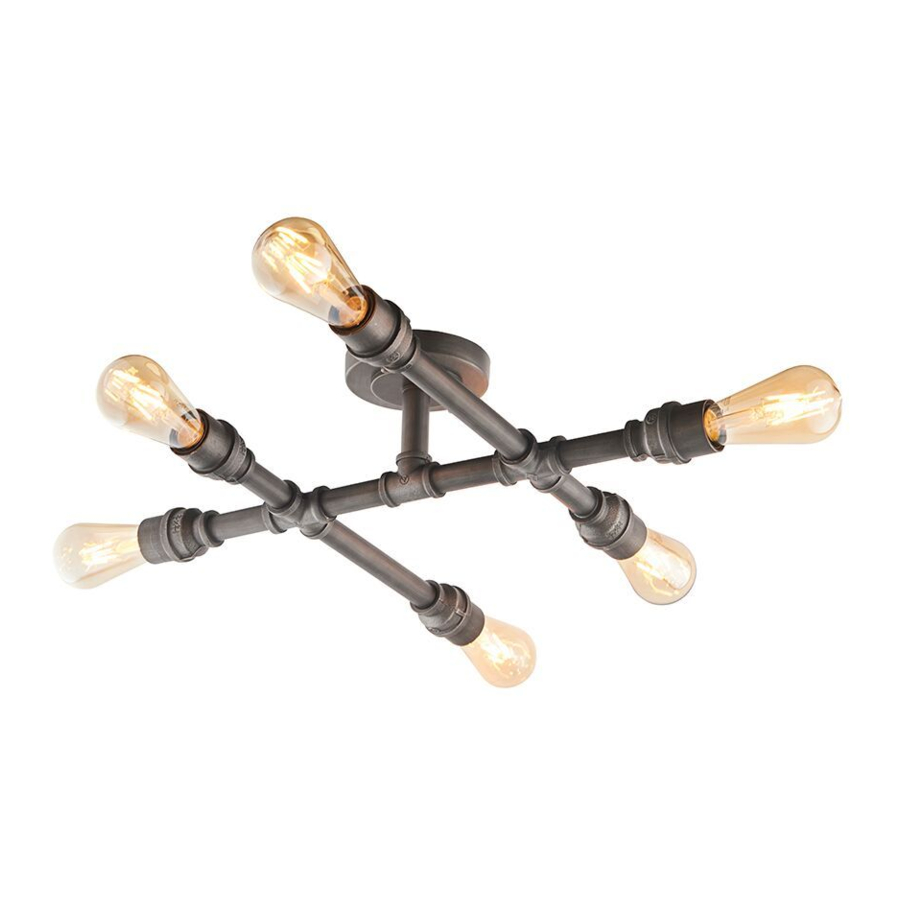

Pipe Semi Flush Fitting
INSTRUCTION MANUAL

Before you start

The following tools may be required:

Selection of cross and flat head screwdrivers.
Electric drill and assorted drill bits.
Wire strippers.
78763-Pipe-SF 20190813
