Dri-Eaz Dragon 3600 Owner's Manual

Dragon 3600 Mobile Furnace
Phone: 800-932-3030 Fax: 360-757-7950 www.LegendBrandsRestoration.com

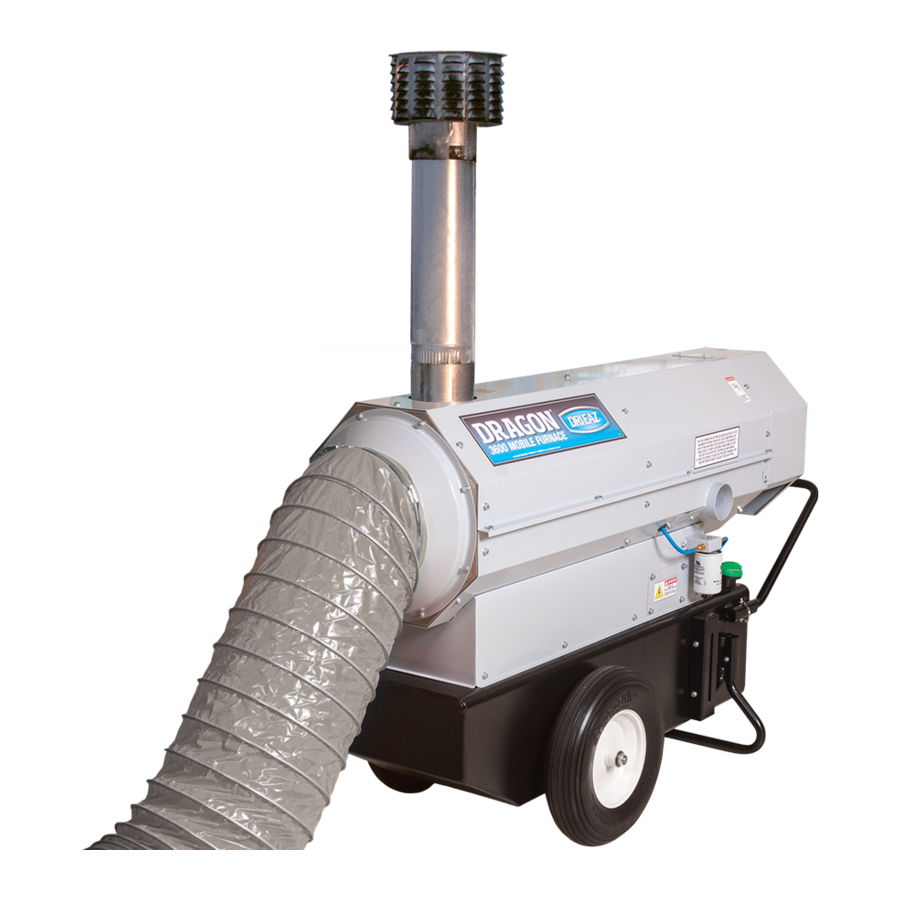

The Dragon 3600 Mobile Furnace is an indirect fired furnace providing heated air for water damage
restoration, structural drying, construction, event shelters and other temporary heating applications.
R E A D A N D S A V E T H E S E I N S T R U C T I O N S
WARNING
WARNING! Failure to comply with the instructions
and precautions provided in this Owner's Manual
can result in death, serious bodily injury, and/or
property loss or damage from hazards of fire,
explosion, burn, asphyxiation, carbon monoxide
poisoning, and/or electrical shock.
WARNING! Do not alter or modify this unit in any
way. Use only replacement parts authorized by Dri-
Eaz Products, Inc. Modifications or use of
unapproved parts could create a hazard and will
void your warranty. Contact your authorized Dri-
Eaz distributor for assistance.
WARNING! Check the Dragon 3600 for proper air-
to-fuel ratio before each use. Failure to adjust for
altitude changes could cause injury, permanent
damage to the unit and secondary damage when
ducting into a structure. It may also void the
Dri-Eaz warranty. Refer to "Adjusting for Proper
Combustion and Altitude," p. 5, for instructions.
WARNING! Breathing Hazard. Fuel exhaust
contains deadly carbon monoxide gas. Operate the
Dragon only outdoors in open area. NEVER
operate indoors or in enclosed spaces.
WARNING! Fire and Explosion Hazard
 Burner produces sparks and flame and unit
becomes hot during use.
 Keep away from flammable vapors, such as those
from gasoline, paint thinner or solvents.
 Keep away from combustible dusts, such as coal
dust or sawdust.
49-120H F535, F535-230V, F535-230V UK, F535-230V AU
Owner's Manual
F535, F535-230V, F535-230V UK, F535-230V AU
LEGEND BRANDS, INC.
15180 Josh Wilson Road, Burlington, WA 98233
Patents: http://www.LBpatents.com
1
 Keep unit at least 8 ft. / 2 m away from any com-
bustible material.
 Keep children and pets away.
 Diesel fuel is flammable and can be explosive.
 Do not smoke while operating, servicing, or
refueling the Dragon.
 Before refueling, turn unit off, allow to cool and
then unplug.
 Hot surfaces can ignite fuel vapors.
WARNING! Electric Shock Hazard
 Connect to 115V or 230V power supply as
appropriate using either a 12/3 AWG × 50 ft. (15
m) max or 10/3 AWG × 100 ft. (30 m) max
extension cord.
 Unit must be grounded. Use only with 3-hole
grounded outlet.
 Never modify plug, extension cord or use an
adaptor.
 Never operate the unit in pooled or standing water.
If electrical components become wet, allow to dry
before using.
Product identification
An identification plate is attached to the side of the
unit. The plate shows the year of production, serial
number, electrical supply requirements, airflow, fuel
capacity, and a production code.
BEFORE YOU BEGIN
Warranty registration
Visit www.LegendBrandsRestoration.com/Warranty to
register your purchase. Registration allows us to better
assist you with using, maintaining or servicing your
equipment and to contact you in case we have
important safety information concerning your Dri-Eaz
product. If you determine service is required, have
your equipment model, serial number and original
proof of purchase available and call your distributor for
assistance with obtaining a return material
authorization (RMA).
