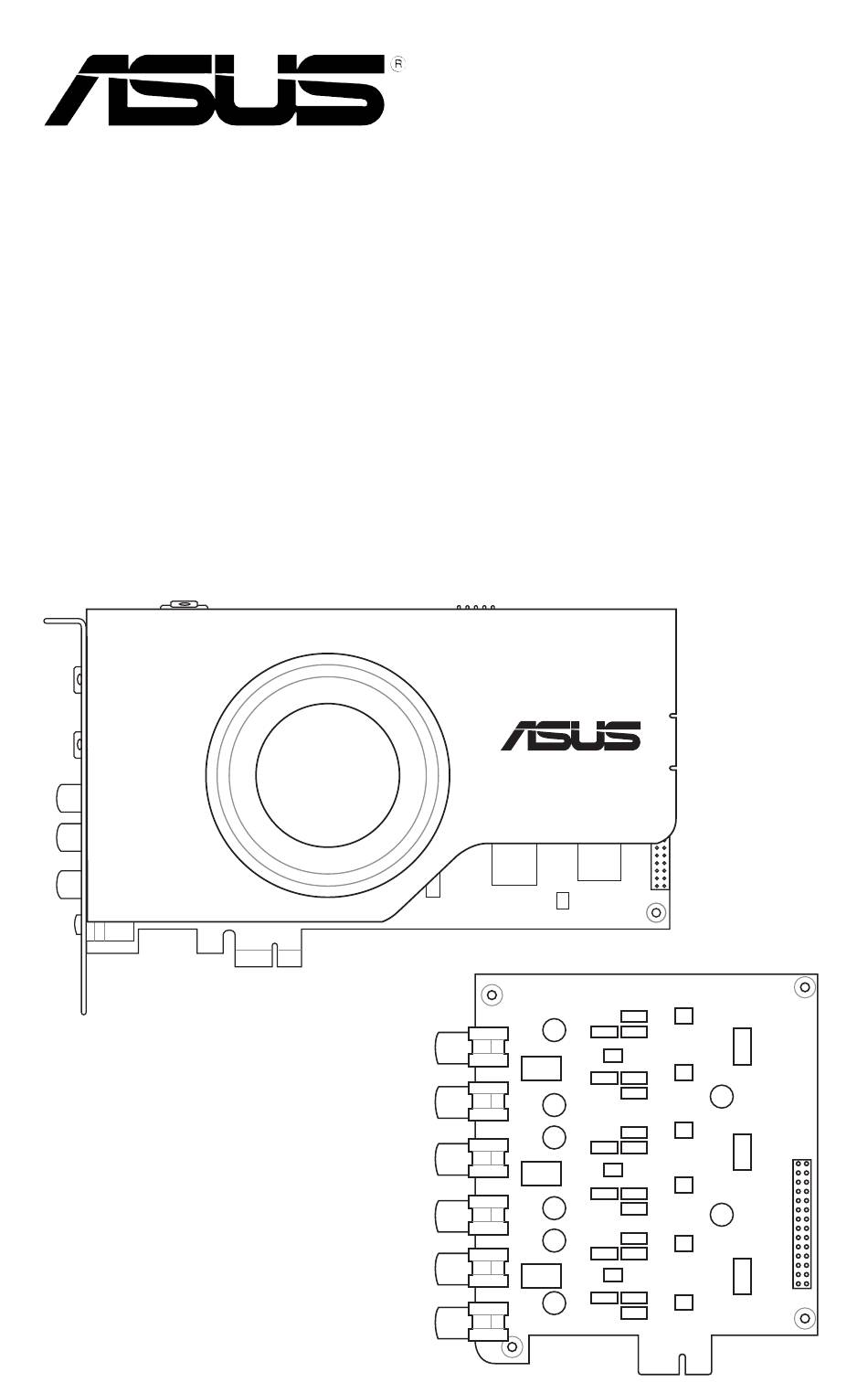

- Page 1 E3910 First Edition V1 May 2008 Xonar HDAV 1.3 (Deluxe) Audio/Video enhanced combo card Quick start guide...
-
Page 2: Package Contents
Package contents Check your ASUS Xonar HDAV 1.3 (Deluxe) card package for the following items: • ASUS Xonar HDAV 1.3 PCI Express AV card • ASUS Xonar H6 DAC extension board (Deluxe only) • H6 extension board cable x1 (Deluxe only) •... -
Page 3: Hardware Introduction
Ultra-high fidelity 120dB SNR A-D converter) S/PDIF In port Optical TOSLINK digital input jack. Connects to external digital audio sources such as MD players, CD players, or DVD players, for audio recording or loopback. (continued on the next page) ASUS Xonar HDAV 1.3 Deluxe Quick start guide... -
Page 4: Card Installation
Remove the chassis cover. Remove the metal brackets from an available PCI Express x1 slot for the Xonar HDAV card and its adjacent slot for the extension board. ASUS Xonar HDAV 1.3 Deluxe Quick start guide... - Page 5 If you are using an HDMI graphics card, connect your graphics card with the Xonar HDAV card using the HDMI cable that comes with your graphics card package. Xonar HDAV card Graphics card HDMI In DVI Out DVI-to-HDMI cable ASUS Xonar HDAV 1.3 Deluxe Quick start guide...
-
Page 6: Driver Installation
(1920x1080). Hence, it is suggested that you set your LCD TV to one of these TV resolutions. • If you are using an ASUS graphics card with the ASUS Enhance Display driver installed, ensure to remove the driver before installing the Xonar HDAV driver. Otherwise, the GamerOSD driver installation error may occur.
