Mitchell Diagnostics MD-500 Quick Start Manual

Hide thumbs Also See for MD-500:
Table of Contents

Advertisement

Quick Links

en-US | 1 | Quick Start Guide| MD-500
3
2
1

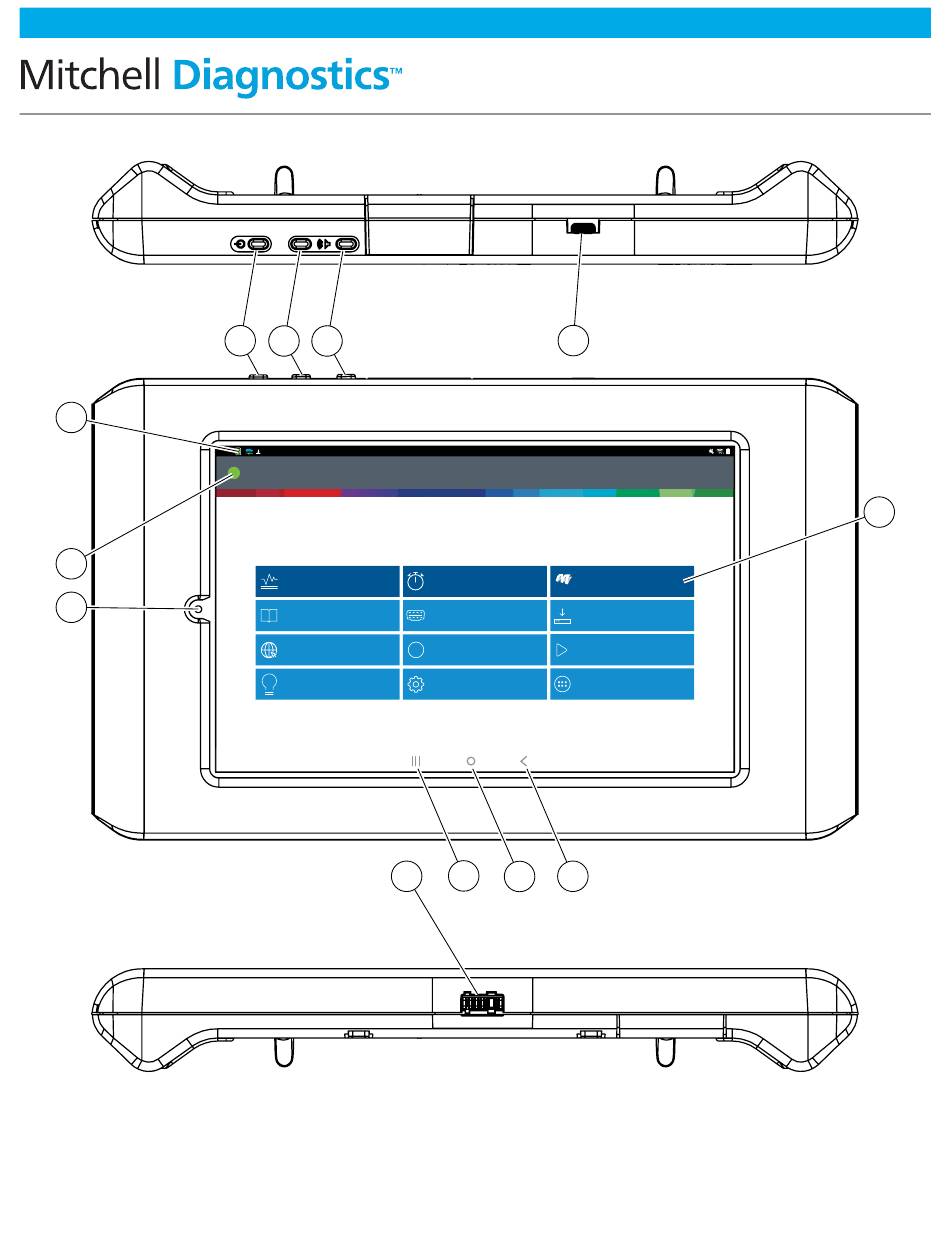

1. Front Facing Camera
2. Vehicle Connection Indicator
3. VCI Connection Manager
4. Power Button
©Mitchell International, Inc.
TOP VIEW
4
5
6
10:22
Connected
Main Menu
Diagnostics
i
Diagnostic Information
Web Browser
Explore More
12
5. Volume Up Button
6. Volume Down Button
7. USB C Charging/Data Port
8. Main Menu Functions
MD-500 Quick Start Guide
7
Turbo Scan
Mitchell Connect
mitchell
Generic OBDII
Saved Reports
i
Video Tutorials
Coverage Guide
Apps Shortcut
Settings
11
10
9
BOTTOM VIEW
Tuesday 1/12/2021
9. Back Button
10. Home Button
11. Recent App Button
12. Docking Station Connector
394474 Rev A | APDMD500020421
