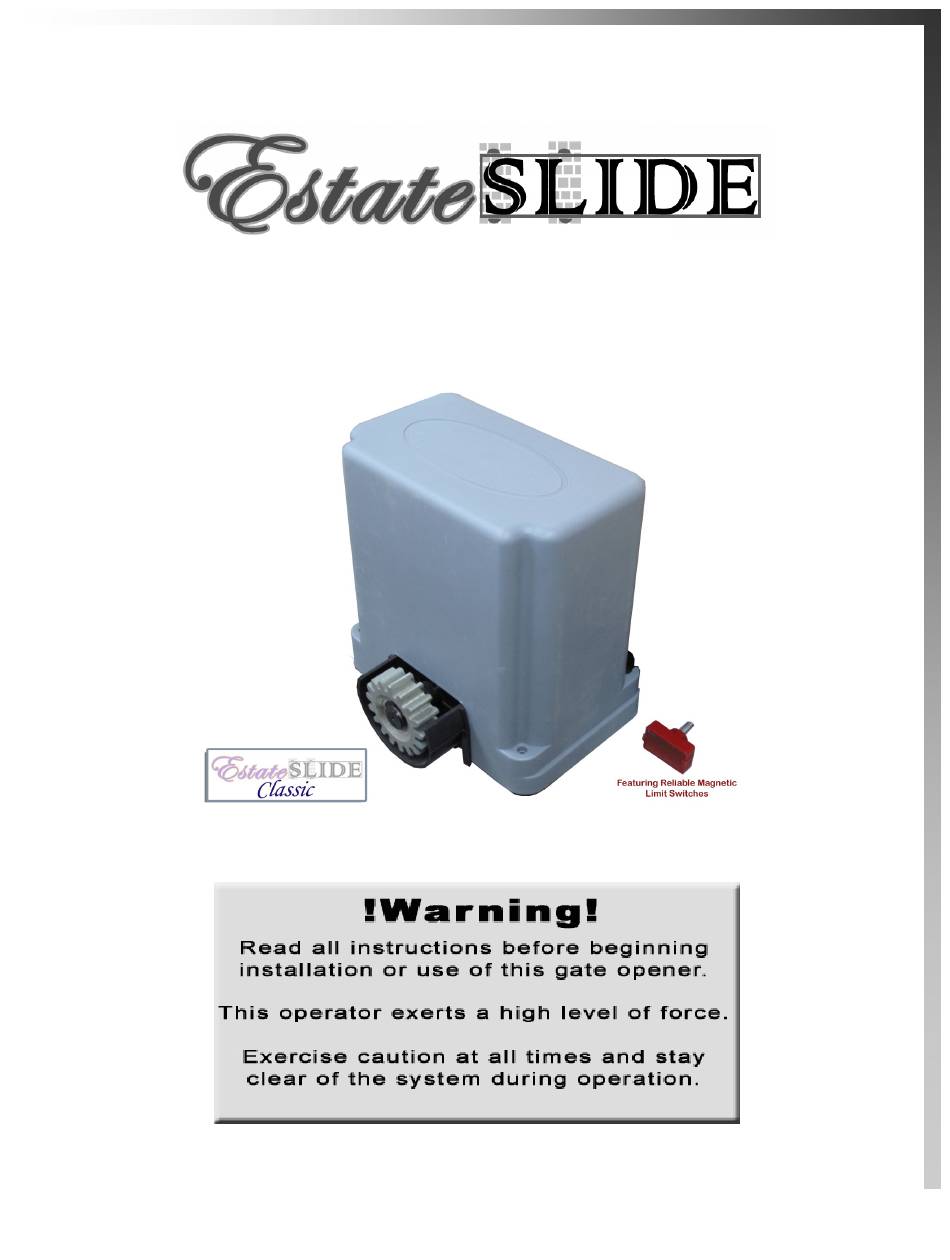

  • Page 1 Instruction Manual for the E-SL 450 Series...
  • Page 2 Estate Slide Summary of Functions The Estate Slide is only to be used for vehicular Slide gates in a Class I setting. Class I: A vehicular gate opener (or system) intended for use in a home of one -to-four single family dwelling, or a garage or parking area associated therewith.

  • Page 3: Parts List

    MODEL Estate Slide 450 Power Supply 24V AC/ 24V DC Absorbed Power (W) Absorbed Current (Amps) Max Run Time 5.6 minutes Operating ambient temperature 32 to 104 Deg F Motor Rotational Speed 2000r/min Gate leaf max length (ft.) Up to 14 Gate leaf max weight (lbs.)

  • Page 4: Preliminary Checks

    Standard System 1 Estate Swing Operator 2 Photocells (not included) Overview and Safety 3 Key operated pushbutton (not included) 4 Flashing lamp (not included) Zones 5 Radio receiver (optional) The system display to the right is a Notes: 1) Do not extend operator connection cables recommended standard system.
  • Page 5 Power Drill Phillips Head Screwdriver   Crescent Wrench Tape Measure   Metal Drill Bits Level   Hacksaw Wire Strippers   Flat Head Screwdriver C-clamps   Other items that may be needed prior to commencing installation. Cement, boards for a slab frame, and a trowel.

  • Page 6: Manual Operation

    Manual Operation 1. Key release the lever. 2. Lift the lever to disengage the gears. 3. The motor will not run again until the motor is relocked There is a magnetic sen- sor that allows the motor to operate, be sure the magnet is lined up with the sen- sor..
  • Page 7 Creating a Mounting Slab 1. Determine the height of your concrete pad based upon how high the gate is from the ground and where the rack will be mounted to the gate. The minimum distance from the bottom of the rack to the ground is 4”.
  • Page 8 Securing the Operator If the height of the operator from the slab ever has to be adjusted, nuts can be inserted just on the threads between the anchor and the bottom of the opener—the opener can be moved up the threading and the op- erator can rest on the nuts.
  • Page 9 3. Move the gate manually, checking if the rack is resting on the pinion. Repeat at each hole. 4. Bring another rack element near the previous one, using a piece of rack (as shown below) to synchronize the teeth of the two elements. 5.
  • Page 10 Auto Reclose, Left/Right Mode, Force Dip switches and auto-reclose time must be set with both transformer and battery power off to take effect. The force of the motor is adjustable - Lowest means it will obstruct easier, highest means it will exert more force on an object before obstructing.

  • Page 11: Power Connection

    Power Connection 1. The provided 24V DC battery is for back up, connect it to the pre-wired connector on the board before plugging in your transformer. 2. The Estate Swing E-SL 450 comes with 1) 24V transformer. The transformer supplied has 2 yel- low wires to be spliced to low voltage wire .

  • Page 12: Troubleshooting Tip

    Temporary Safety Jumpers For the highest level of safety, the Estate Swing systems are set up with Normally Closed safety terminals. This means that in order for the gate opener to move these terminals must be closed either through a safety device (recommended) or with jumpers. Temporary safety jumpers are in- stalled in the factory It is recommended not to use any accessories until setup and programming is complete.
  • Page 13 Travel Limit Installation for OPEN position The ESTATE SLIDE operator is supplied with a magnetic limit switch and bracket to be secured to the top of the rack, this commands gate movement to stop in the open position. 1. Move the gate to the open position.
  • Page 14 In this stage, your control board will memorize run time and where to stop in the open position. Manually release and close the gate; then lock it into gear. This position should be where you want the gate to stop every time. Using a screwdriver jump the pins on the lower right of the board marked SET.
  • Page 15 Setting Transmitters Receiver The receiver is built into the board. It can have up to 6 remotes programmed into the system. It has two types of openings that can be programmed in - Full Open/Close and Pedestrian Open. Full opening is normal operation of the gate. Pedestrian opening will partially open the gate and stop.

  • Page 16: Control Board Overview

    Control Board Overview Caution! Do not r un 120V AC power dir ect to the boar d. This will cause per manent damage to both boards and void your warrantee. Caution! From left to right Hall: Counter that memor izes the open position of the gate. ...
  • Page 17 Control Board Overview Caution! Do not r un 120V AC power dir ect to the boar d. This will cause per manent damage to both boards and void your warrantee. Caution! Continued: LIMIT/LH: Pr ewir ed - this is where the limit switch and clutch switch are wired. Do not move. ...

  • Page 18: Accessories Wiring

    Accessories Wiring The manufacturer instructions that come with your accessory should have markings for wires or terminals to connect to the gate opener. Please look for terminals named below in the instructions for the accessory. Keypads, Receivers: Normally Open (NO) or Input (INP) or Relay of entry device = PUSH terminal on gate opener control board.
  • Page 19 Accessories Wiring Photo Eye, Safety Edge, Safety Loop: Normally Closed (NC) of safety device = Photo terminal of gate opener control board. Common (COM) or Ground (GND) of safety device = GND terminal of gate opener control board. 24V Power positive (+) or (24V) or (PWR) of safety device = V+ terminal of gate opener control board.
  • Page 20 Warranty / Troubleshooting Notice If you call in for technical support or warranty support: before any control board or motor will be permitted to be sent in for testing or warranty you will be required to e-mail digital photos to the technician. This is done in your best interest to save unnecessary shipping expenses and time lost.
