3.3 Configuring RCB10+

The configuration of RCB10+ is done using the RST10 Windows software, which you can download from
REAC's web page and install on your computer.
To connect the RCB10+ to the computer, the RHC12 adapter with a USB cable (Type A-B) and 6.35 mm
phono cable are needed.
To be able to test the effect of the parameter settings, the actuators and the hand control can optionally be
connected.
3.3.1 Connecting RCB10+ to computer
Actuators

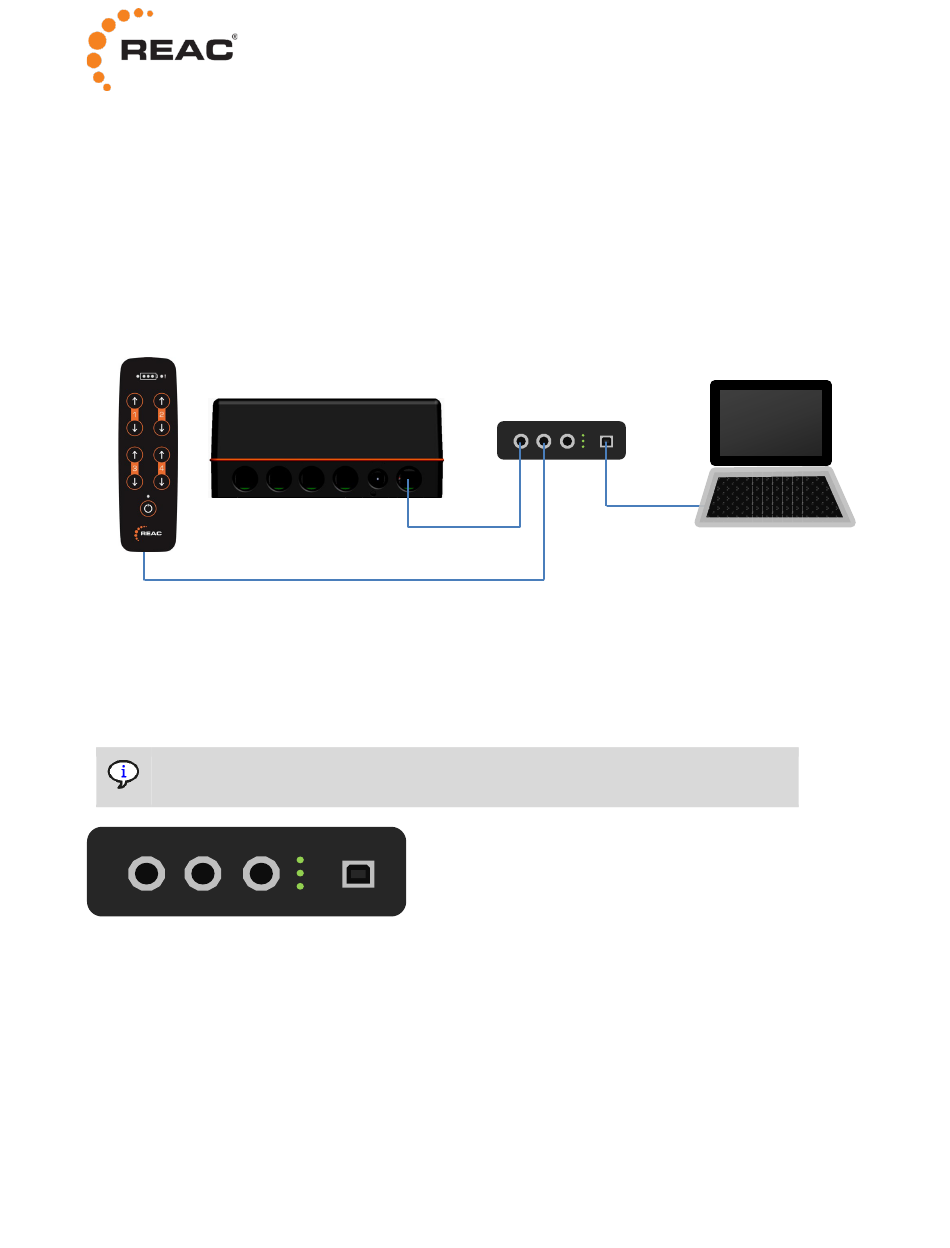

To connect the RCB10+ to the computer, do the following:
1. Connect the USB cable to the USB connector on the RHC12 adapter and to the computer.
2. Connect the phono cable to the HC connector on the RCB10+ and to any of the HC connectors
on the RHC12 adapter.
3. Connect the hand control to any of the HC connectors on the RHC12 adapter.
4. Connect the actuators to the actuator connectors on the RCB10+.
The first time the RHC12 adapter is connected to the computer, installation of drivers
is required. This is done automatically if the computer is connected to the internet.
RHC12 adapter LEDs:
1. USB Power
2. PC tool
3. HC bus
HC
1
2
3
HC USB
