3 Getting started

3.1 Before first use

Before using the RCB10+ for the first time, you should charge the battery for 24 hours. This to ensure full
charge and to prolong the lifetime of the battery.
To charge the battery the first time, do the following:
1. Connect the battery charger to the RCB10+ charger jack and to a wall socket.
2. Check that the LED on the charger is red, indicating charging.
3. Keep the charger connected for 24 hours.

3.2 Connecting hand control and actuators

To connect the hand control and actuators, do the following:
1. Connect the hand control to the HC connector on the RCB10+.
2. Check that the LEDs on the hand control light up. If not, the battery needs to be activated.
Do the following:
a. Connect the battery charger to the RCB10+ and to a wall socket.
b. Wait 5 seconds and then disconnect the charger.
3. Connect each actuator to an actuator connector on the RCB10+.
Make sure all cables are equipped with O-rings. Without the O-rings, the IP protection
will be lost.
The actuator and hand control connectors are of the same type. Make sure you
connect the cables to the correct conntector.
To simplify assembly of the O-rings, put some grease on them. Standard Vaseline
can be used.

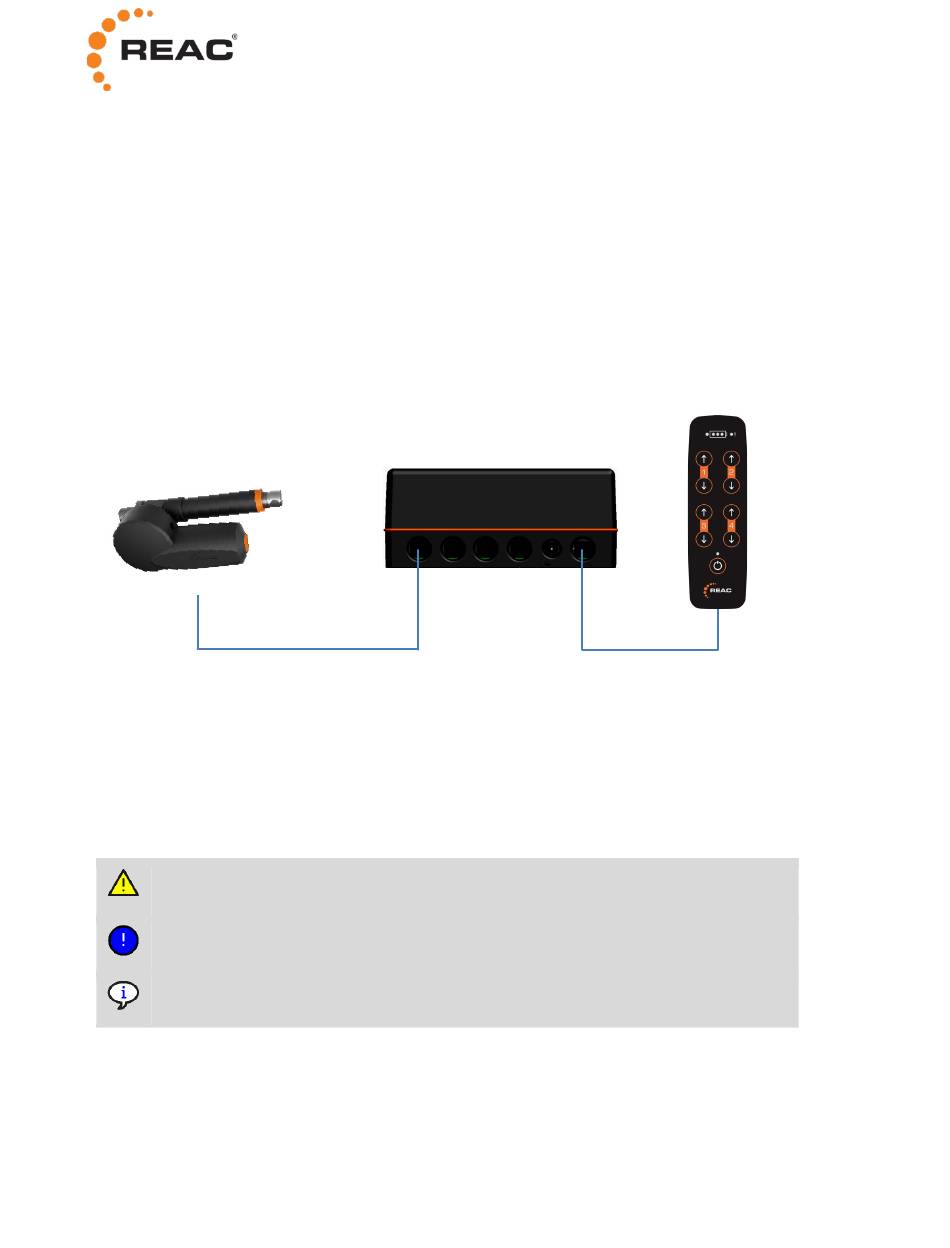

Actuators HC
