2 Product description

2.1 Overview

The RCB10+ is a 4-channel control box with a 2 Ah battery pack.

2.2 System and compatibility

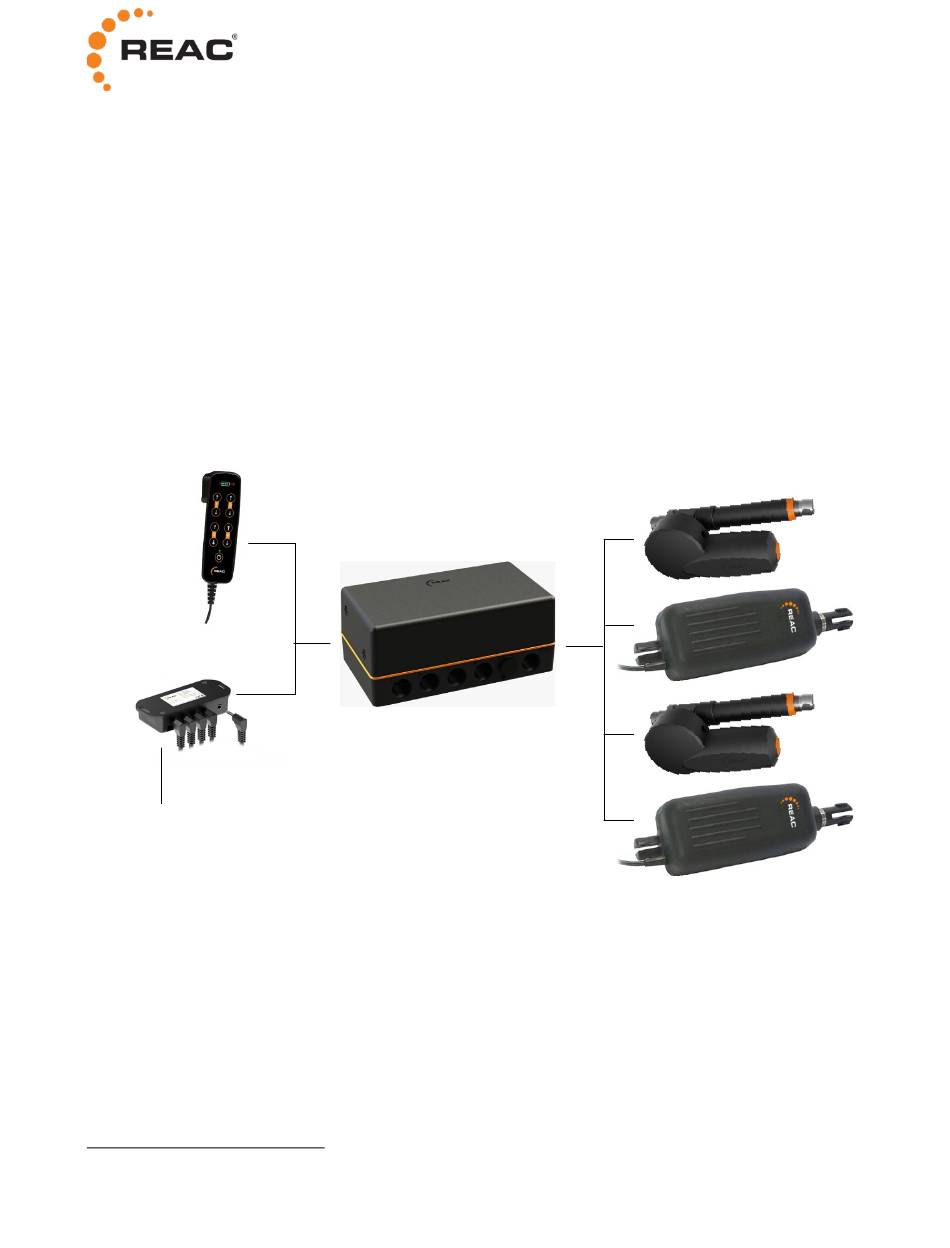

A REAC control system consists of a control box, a power source, a hand control, and one or several
actuators.
• The RCB10+ has a built-in battery and needs no additional power source.
The RCB10+ can be combined with the RHC10 hand control and almost any REAC actuator
•
The RCB10+ can also be connected to generic digital switches, via the RHC12 adapter. In this
•
case, the hand control cannot be connected.
RHC10
RHC12
Generic digital switches

2.3 Configuration

The RCB10+ is easily configured using the RST10 Windows software. It is possible to set parameters for
each actuator channel, in both directions. You can, for example, set the start/stop ramps, speed factors,
and overcurrent limits.
Except RE7000 which has a special interface.
