Related Manuals for Duran Electronica DURTOX-X
Summary of Contents for Duran Electronica DURTOX-X
- Page 1 DURTOX-X ELECTROCHEMICAL DETECTORS FOR TOXIC GASES AND O Installation & User Manual © 2010 DURAN ELECTRONICA S.L. - All rights reserved · www.duranelectronica.com Certificate nº FS82426 I-manDURTOX-v01...
-
Page 3: Table Of Contents
DURTOX-X. Electrochemical technology detectors ......4 RELAY OUTPUT MODULE (optional) ........4 CONNECTIONS . -

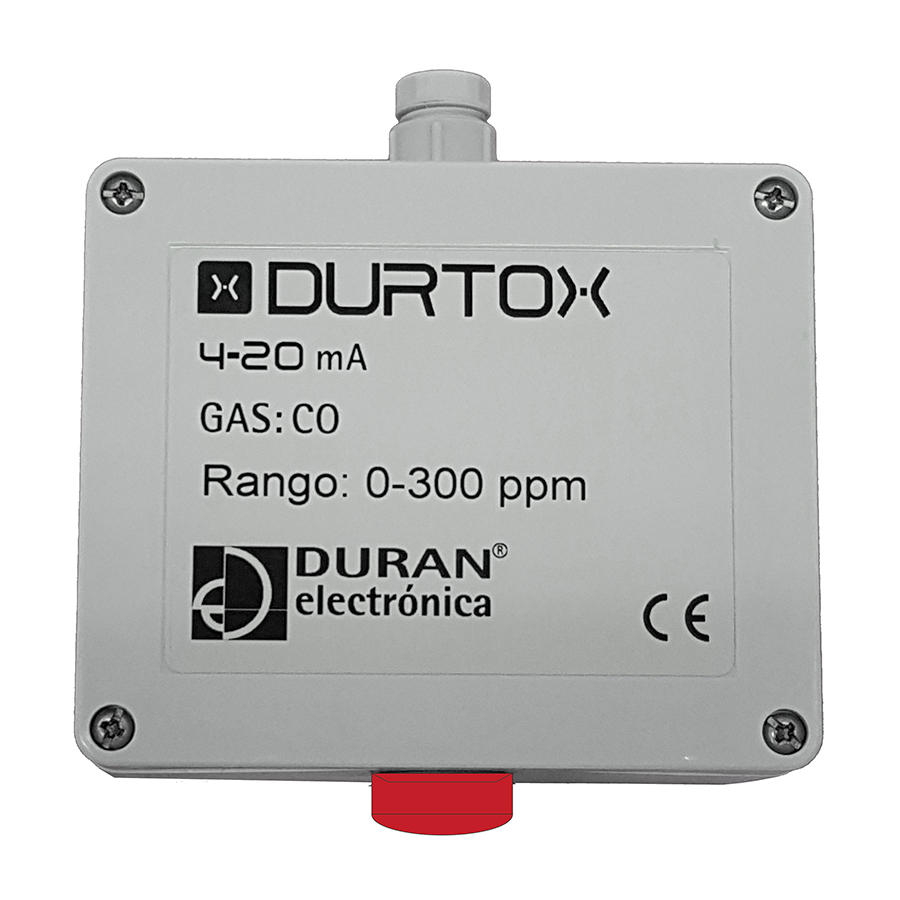

Page 4: Durtox-X. Electrochemical Technology Detectors
• Provided with a 12bit microprocessor that allows a correct response from each of the electrochemical sensors • Thermal compensation when faced with temperature variations, except for DURTOX-X O2, which due to its systems does not require such a feature. • Self testing hardware. -
Page 5: Connections
The user must ensure the cable is well anchored. The minimum torque setting applicable to the cap is 20 Nm.. Check cable entry tightness after any maintenance operation: If cable has moved, tighten up the cap again. If tightening isn’t possible, send the detector back to factory for cable gland replacement. DURTOX-X with RS485C communication: I-manDURTOX-v0... - Page 6 DURTOX-X with 4-20mA communication : IMPORTANT: If the system where detectors are to be connected does not have 4-20mA inputs, but 0-5 or 0-10V DC tension inputs, a resistance must be connected between negative (-) and signal (s), on the receptor devi- ce.
-
Page 7: Addressing Rs485C Detectors
4. ADDRESSING RS485 DETECTORS Before connecting detectors to they must be addressed. If DURTOX-X EUROSONDELCO SIEMENS CC62P more than one detector is connected to the same loop, assign a number to each of them according to table 1. Table 1- NUMBERING DETECTORS USING SW1 (addressing) Detector nr. -
Page 8: Test
Cable type (4-20mA) 3 X 1,5mm Ø shielded, recommended minimum Maximum installation distance 1000m (RS485C) & 350m (4-20mA) Dimensions (mm) & weight (gr) 162 x 150 x 90 / 1.392 © 2010 DURAN ELECTRONICA S.L. All rights reserved · www.duranelectronica.com... -
Page 9: Information About Atex Marking
9. GUARANTEE detectors are guaranteed against any manufacturing defect for a 1 year period after the acquisition of DURTOX-X the equipment. If, during this period of time, any anomaly was detected, please inform your provider or installer. Guarantee covers the full repair of the equipment which... -
Page 10: Ec Declaration Of Conformity
Clase 2 CA, ou=703015196, cn=ENTIDAD DURAN GONZALEZ ELECTRONICA SL - CIF B80418965 - NOMBRE ANDRES VICTOR MANUEL GONZALEZ VICTOR MANUEL - NIF 05244956J - NIF 05244956J Fecha: 2010.10.25 12:31:23 +02'00' © 2010 DURAN ELECTRONICA S.L. All rights reserved · www.duranelectronica.com... - Page 11 I-manDURTOX-v0...
- Page 12 c/ Tomás Bretón, 50 28045 MADRID, Spain Phone: +34 91 528 93 75 Fax +34 91 527 58 19 duran@duranelectronica.com I-manDURTOX-v01 www.duranelectronica.com Certificate nº FS82426...
