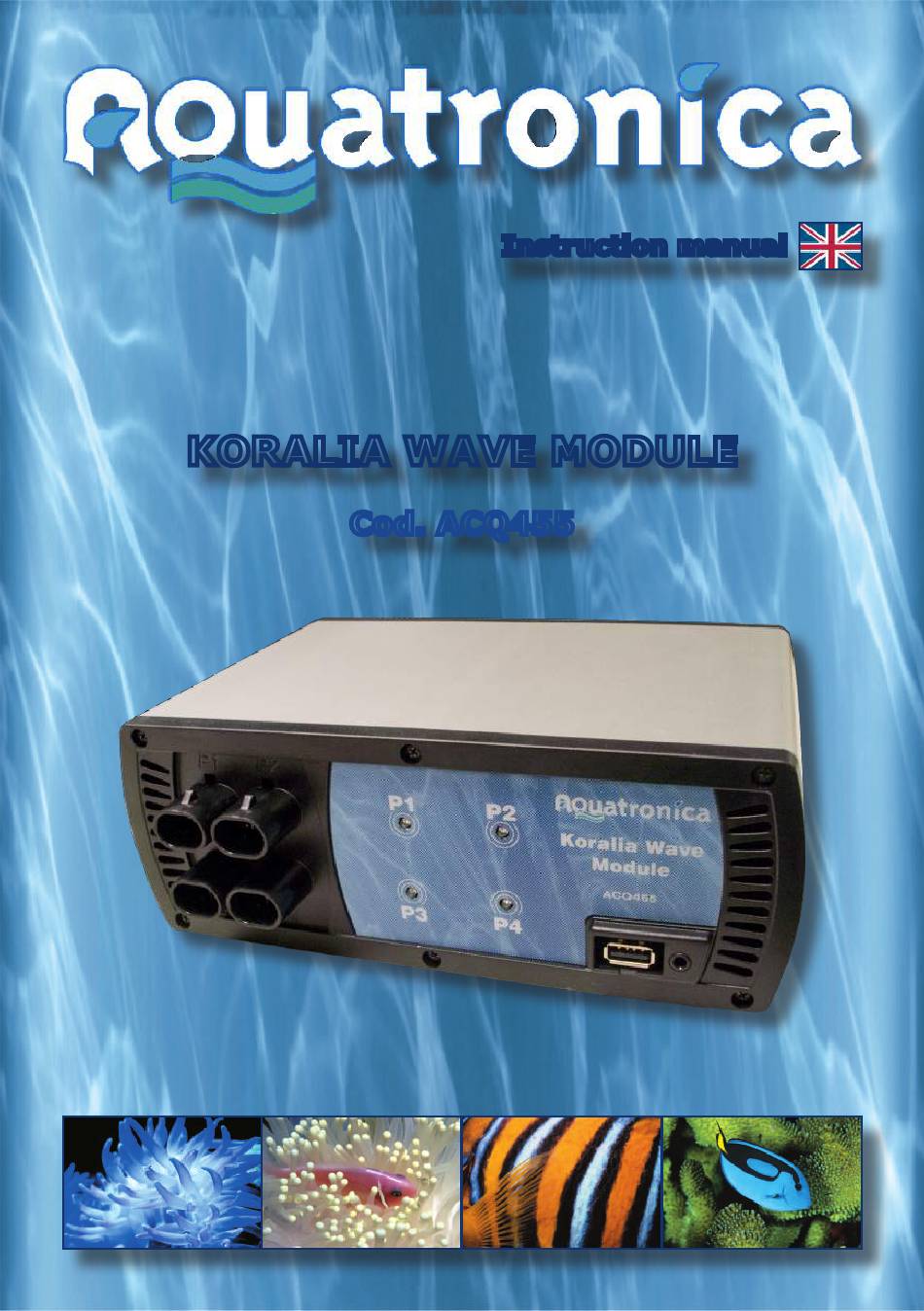

  • Page 1 Instruction manual KORALIA WAVE MODULE Cod. ACQ455...

  • Page 2: Table Of Contents

    • Information concerning safety ............Page 4 • Package contents ................Page 5 • Description of the parts of the Koralia Wave Module ...... Page 6 • First-time connection of the Koralia Wave Module ......Page 7 • Main menu ..................Page 8 •...

  • Page 3: Information

    AQUATRONICA. Any such changes will be added to subsequent editions of this manual. AQUATRONICA reserves the right to modify and improve any of the products described in this manual without notice. Read this manual carefully before using the “KORALIA DIMMER PUMP” sys- tem.

  • Page 4: Information Concerning Safety

    The manufacturer is not liable for personal injuries or material damages caused by tampering with the product. Only original AQUATRONICA accessories or accessories approved by the same may be connected to the product. The use of unapproved accessories could cause damages, fires, electric shocks or injuries to people. Keep the product out of children’s reach to avoid the risk of electric shocks.

  • Page 5: Package Contents

    4) 1 Ferrite accessory. 5) 1 Ferrite accessory opening key. 6) 1 Quick installation guide. IsACQ455C-0 (ENG) Rev. 261108-0 5 - 26 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...

  • Page 6: Description Of The Parts Of The Koralia Wave Module

    Description of the parts of the Koralia Wave Module 1) Blue indicator LEDs that point out the operating status and the power of the pumps. 2) BUS connector for connecting to the Aquarium Controller System. 3) Jack for connecting the luminosity sensor (optional).

  • Page 7: First-Time Connection Of The Koralia Wave Module

    Wave Module. 4) Connect the Koralia pumps to be piloted to the dedicated sockets. 5) Switch the Koralia Wave Module on, by switching the ON/OFF switch at the back of the device from position “0” (Off) to position “I” (On).

  • Page 8: Main Menu

    • Select the “change name“ menu using the up/down Dimmer pumps arrow keys  and press “Enter” (Fig.3). • Select the Koralia Wave Module on which you wish Dimmer pumps 1 to work using the up/down arrow keys  and press Dimmer pumps 2 “Enter”...

  • Page 9: Manual Controls Menu

    • Select the “Reset” function using the up/down arrow ---- keys  and press “Enter”. (Fig. 12) IsACQ455C-0 (ENG) Rev. 261108-0 9 - 26 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...

  • Page 10: Programs Menu

    7) Time that the pump must take to switch back from the maximum power set to the minimum power set. 10 - 26 IsACQ455C-0 (ENG) Rev. 261108-0 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...
  • Page 11 (points 3-4) and the Max. Time (point 6). The max. T must strictly be less than that set for the previous pump. Previous pump Pump selected IsACQ455C-0 (ENG) Rev. 261108-0 11 - 26 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...

  • Page 12: Examples Of Simple Programs

    From 00:00 To 24:00 > P1 > P2 > P3 > P4 (Fig. 17) 12 - 26 IsACQ455C-0 (ENG) Rev. 261108-0 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...
  • Page 13  and press “Enter” to save the programming set. IsACQ455C-0 (ENG) Rev. 261108-0 13 - 26 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...
  • Page 14 2) Example of From 00:00 To 24:00 > = P2 > = P4 (Fig. 22) 14 - 26 IsACQ455C-0 (ENG) Rev. 261108-0 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...
  • Page 15  and press “Enter” to save the programming set. IsACQ455C-0 (ENG) Rev. 261108-0 15 - 26 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...
  • Page 16 3) Example of From 00:00 To 24:00 > + P2 + P3 + P4 (Fig. 27) 16 - 26 IsACQ455C-0 (ENG) Rev. 261108-0 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...
  • Page 17  and press “Enter” to save the programming set. IsACQ455C-0 (ENG) Rev. 261108-0 17 - 26 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...
  • Page 18 MIXED PROGRAMMING 4) Example of From 00:00 To 24:00 > = P3 > (Fig. 32) 18 - 26 IsACQ455C-0 (ENG) Rev. 261108-0 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...
  • Page 19  and press “Enter” to save the programming set. IsACQ455C-0 (ENG) Rev. 261108-0 19 - 26 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...

  • Page 20: Examples Of Composite Programs

    > P3 (Fig. 36) Program 2 From 14:00 To 22:00 > P2 (Fig. 37) 20 - 26 IsACQ455C-0 (ENG) Rev. 261108-0 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...
  • Page 21  and press “Enter” to save the programming set. IsACQ455C-0 (ENG) Rev. 261108-0 21 - 26 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...

  • Page 22: Editing/Deleting Programs

    Provides information on the control unit’s firmware Cambia PIN version. Press a key Centro Messaggi to continue (Fig. 45) 22 - 26 IsACQ455C-0 (ENG) Rev. 261108-0 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...

  • Page 23: Guarantee Certificate

    Guarantee certificate Dear customer, We thank you for the trust you have placed in AQUATRONICA by purchasing this product. AQUAT- RONICA puts all its products through strict quality tests; if, despite all the tests carried out, the product should show signs of malfunctioning, you are recommended to contact the shop where you purchased the product or the manufacturer to have the product inspected, repaired or replaced ac- cordingly.

  • Page 24: Declaration Of Conformity

    Declaration of Conformity 24 - 26 IsACQ455C-0 (ENG) Rev. 261108-0 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...

  • Page 25: Technical Data

    MAX 1.20A 115V~60Hz MAX 2.20A Dimensions 220 (L) x 150 (W) x 80 (H) mm IsACQ455C-0 (ENG) Rev. 261108-0 25 - 26 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...
