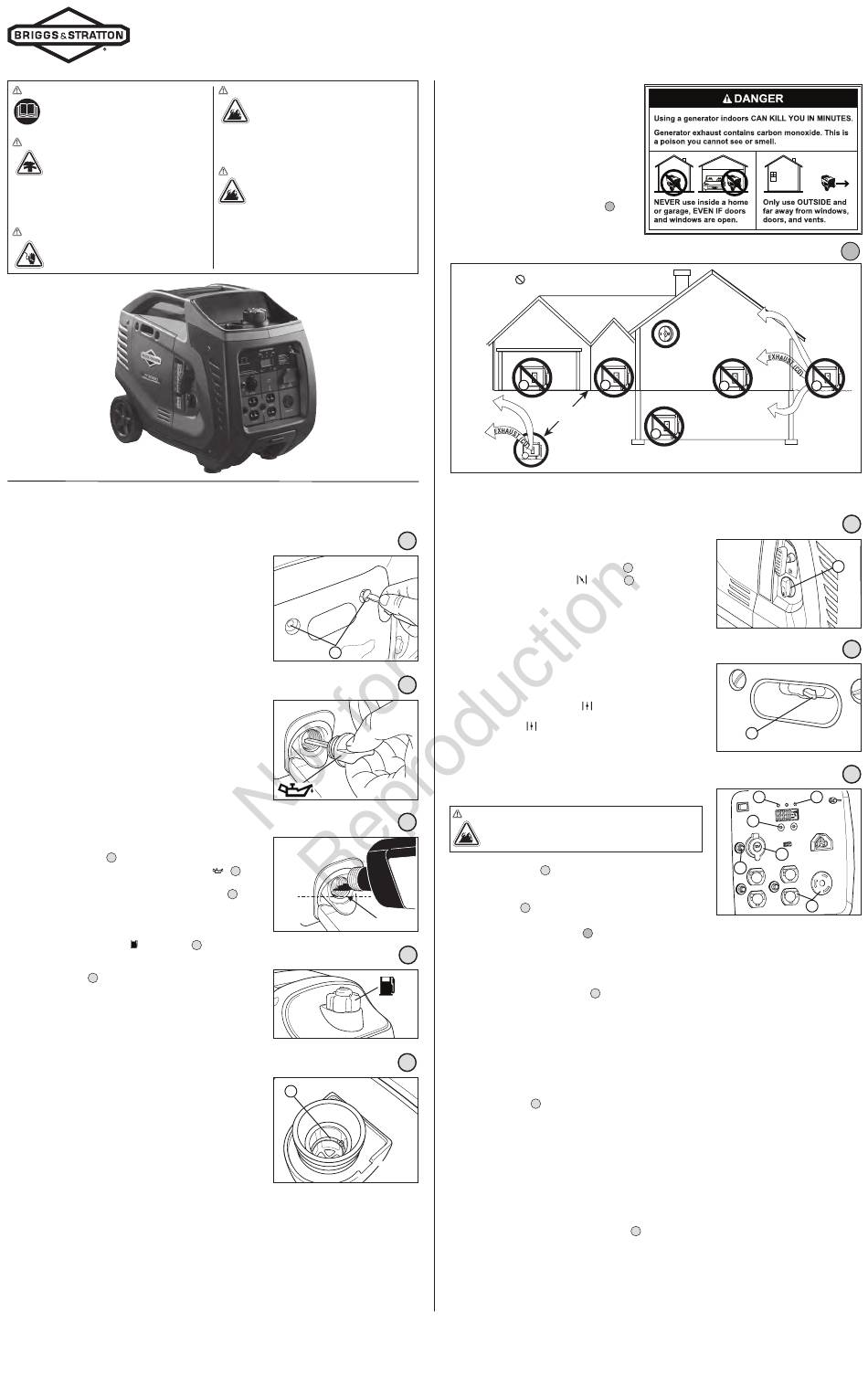

Briggs & Stratton P3000 Quick Setup Manual

WARNING Failure to read and follow the operator's
manual and all operating instructions could
result in death or serious injury.
WARNING Engine exhaust contains carbon monoxide,
a poisonous gas that could kill you in minutes.
You CANNOT smell it, see it, or taste it. Operate
ONLY outside far away from windows, doors
and vents. Install carbon monoxide alarms. DO NOT run
this product inside homes or garages, even if using fans or
opening doors and windows. Direct exhaust AWAY from
windows, doors, and vents.
WARNING Generator voltage could cause electrical
shock or burn resulting in death or serious
injury. DO NOT operate under wet conditions.
Items Included (Not Shown):
Battery charge cables
Operator's manual
Bottle of engine oil
Tool kit
RV adapter plug
Funnel
Items Needed (Not Included):
Carbon monoxide (CO) alarm(s)
Utility knife
Unleaded fuel (minimum 87 octane)
Unpack Generator
1. Set the carton on a rigid, flat surface.
2. Remove everything from carton except generator.
3. Open carton completely by cutting each corner from top to bottom.
4. Ensure you have all included items prior to assembly.
If items are damaged or missing, call 1-800-743-4115.
Add Engine Oil and Fuel
NOTICE You MUST properly fill engine with oil before attempting to start
generator.
NOTICE DO NOT use unapproved gasoline such as E15 and E85. DO
NOT mix oil in gasoline or modify engine to run on alternate fuels.
1. Move generator outdoors to a flat, level surface.
2. Loosen the two maintenance cover screws (A) and remove the front
side maintenance cover.
1
3. Clean area around oil fill and remove yellow oil fill cap (
4. Using oil funnel, slowly pour contents of provided bottle of engine oil
into oil fill opening to the point of overflowing at oil fill cap.
5. Replace oil fill cap and fully tighten.
6. Replace the maintenance cover and hand tighten the two
maintenance cover screws.
7. Clean area around fuel fill cap ( ), remove cap.
8. Slowly add unleaded fuel to red fuel level indicator (B) in fuel tank.
Be careful not to fill above the indicator. This allows adequate space
for fuel expansion.
5
9. Install fuel cap and let any spilled fuel evaporate before starting
engine.
© 2014 Briggs & Stratton Power Products Group, LLC. All rights reserved.
Every effort has been made to ensure that the information in this document is accurate and correct. However, we reserve the right to alter or otherwise improve the product and this document at any time without prior notice and without incurring obligation.
This generator is certified in accordance with CSA (Canadian Standards Association) standard C22.2 No. 100-04 (motors and generators) and rated in accordance with PGMA (Portable Generator Manufacturers' Association) standard PGMA G200 (Standard for Testing and Validating Performance of Portable Generators).
Quick Setup Guide
WARNING Fuel and its vapors are extremely
flammable and explosive which could cause
burns, fire or explosion resulting in death or
serious injury. Turn generator engine OFF and
let it cool at least 2 minutes before removing fuel cap.
Let spilled fuel evaporate before starting engine. Always
allow space for fuel expansion.
WARNING Hot exhaust and reflective exhaust gases
could cause burns and fires resulting in death
or serious injury. Keep at least 5 ft. (1.5 m)
clearance from any combustibles or structures,
including overhead.
A
).
2
3
4
B
Inverter Generator
Move Generator to
Safe Operating Location
1. Move generator outside to a flat, level surface, in
an area that will not accumulate deadly exhaust
gas. Engine exhaust contains carbon monoxide, a
poisonous gas that could kill you in minutes. You
CANNOT smell it, see it, or taste it. Operate ONLY
outside far away from windows, doors and vents.
Install carbon monoxide alarms. DO NOT run this
product inside homes or garages, even if using
fans or opening doors and windows. Direct exhaust
AWAY from windows, doors, and vents.
2. To reduce the risk of exhaust heat or exhaust
gases igniting nearby combustible material, keep
at least 5 feet (1.5 m) clearance on all sides of
generator, including overhead.
DO NOT operate in any of the below locations
Direct exhaust AWAY
from windows,
doors and vents.
Start Generator
Disconnect all electrical loads from the generator. Use the following start
instructions.
1. Make sure unit is on a level surface.
1
NOTICE Failure to start and operate the unit on a level surface will cause
the unit not to start or shut down during operation.
2. Turn the engine switch (D) in ON (I) position.
3. Push choke lever (E) to CHOKE (
NOTICE To help start the engine for the very first time, after running out
of fuel or after a long period of storage, fill fuel tank as described in Add
Fuel. It will require more than several start attempts until the air in the
fuel system has been purged.
4. Grasp recoil handle and pull slowly until slight resistance is felt.
Then pull rapidly to start engine.
5. If engine starts, proceed to step 7. If engine fails to start, proceed to
step 6.
2 6. Move choke lever to half choke position, and pull recoil handle twice. If
engine fails to start, repeat steps 3 thru 4.
7. Slowly move choke lever to RUN (
move choke lever to half choke position until engine runs smoothly,
and then to RUN ( ) position.
NOTICE If engine starts after 3 pulls but fails to run, or if unit shuts
down during operation, make sure unit is on a level surface and check
for proper oil level in crankcase. This unit may be equipped with a low oil
protection device. If so, oil must be at proper level for engine to start.
Plug in Items to be Powered
WARNING Damaged or overloaded electrical cords could overheat,
3
arc, and burn resulting in death or serious injury. ONLY use
cords rated for your loads. Follow all safeties on electrical
cords. Inspect cord sets before each use.
1. Make sure the green output indicator light (F) comes on (it may take
up to three seconds).
2. Let engine stabilize and warm up for a few minutes after starting.
3. Plug in and turn on the desired 120 Volt AC (G), single phase, 60 Hz
electrical loads.
9
FULL
OIL NOTICE When plugging into the 120 Volt duplex receptacles, plug items
LEVEL
to be powered in sequence as shown.
4. If you overload the generator, the red LED overload alarm light (H)
4
comes on and cuts power to the receptacles. The green output
indicator light will also go off. You must turn off and unplug all
electrical loads, press the "Reset" button (J) on the generator control
panel and then plug in and restart electrical loads one at a time to
continue in normal operating mode.
NOTICE DO NOT connect 240 Volt loads to the 120 Volt receptacles.
NOTICE DO NOT connect 3-phase loads to the generator.
NOTICE DO NOT connect 50 Hz loads to the generator.
NOTICE DO NOT OVERLOAD THE GENERATOR. Refer to Do Not
Overload Generator section of Operator's Manual.
5
5. This 12 volt DC receptacle (K) allows you to recharge a 12 Volt
automotive or utility style storage battery with the battery charge
cable provided. This receptacle is protected by a push to reset
circuit breaker (L).
9
NOTICE This receptacle can not be used to crank an engine having a
discharged battery. See operator's manual before attempting to recharge
a battery.
Shut Down Generator
1. Turn OFF and unplug all electrical loads from generator panel
receptacles. NEVER start or stop engine with electrical devices
plugged in and turned ON.
2. Let engine run at no-load for several minutes to stabilize internal
temperatures of engine and generator.
3. Move engine switch (D) to the OFF (0) position.
4. To prepare for storage, refer to Operator's Manual.
Have Questions?
Do not return to store. We can help.
Call Customer Service Toll-Free 1-800-743-4115
or vist our web site BRIGGSandSTRATTON.COM
6
CO Alarm
In Living Areas
Entryway,
Porch
Garage
KEEP
Basement
FAR AWAY
Crawlspace
Only use OUTSIDE and
FAR AWAY from windows,
doors and vents.
7
) position.
8
) position. If engine falters,
9
9
9
7
6
Attic
Generator too
close to home and
exhaust directed
towards windows,
doors and vents.
7
D
8
E
9
H F
J
K
L
2
1
4
3
G
80006391, Rev -
