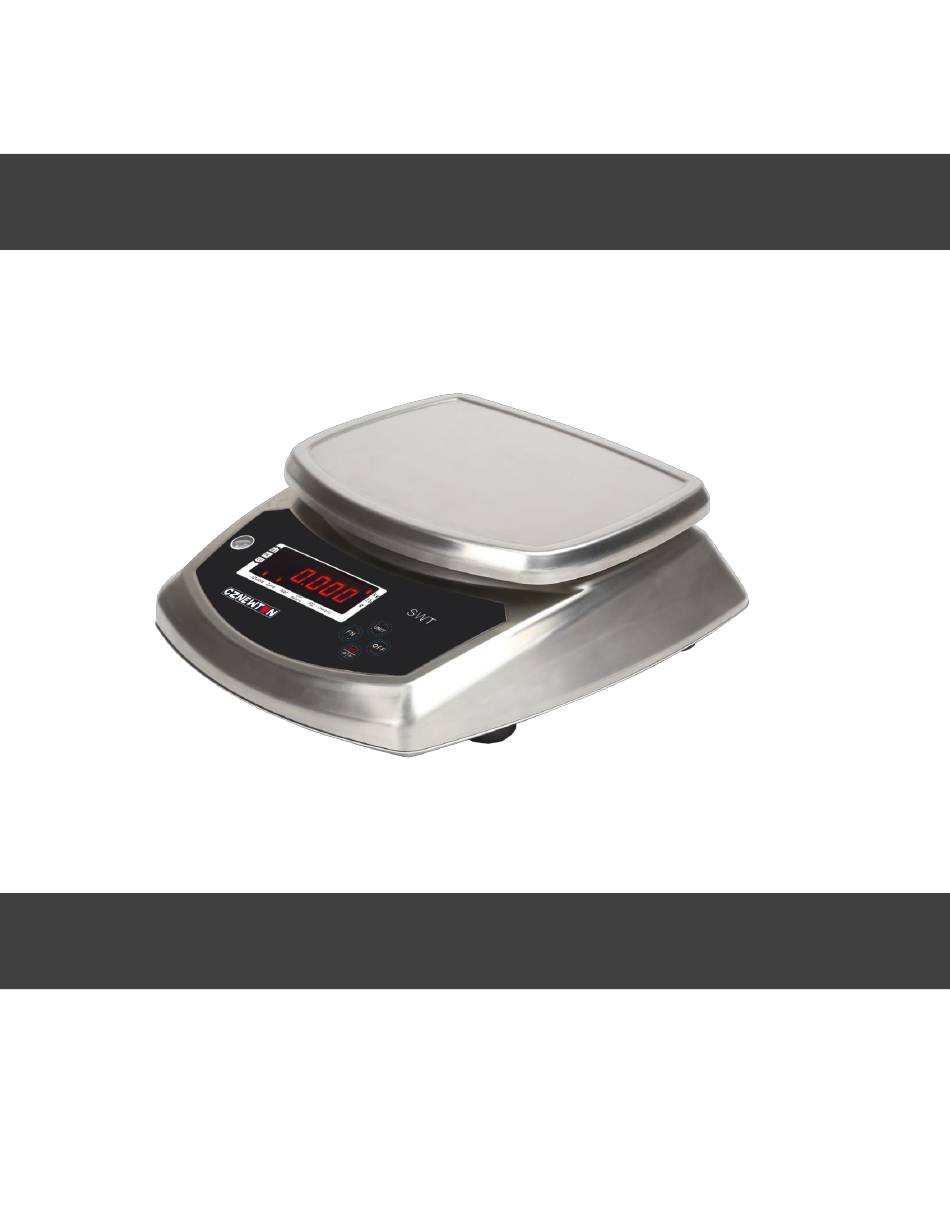

- Page 1 Washdown weighing checkweighing user manual Model: SWT GRAVITY MEASUREMENT, INC. Please read this manual carefully before operation ----Important safety info ----Operating condition and other attentions ----Guarantee info...
- Page 2 Important Safety And Operation Info Please read the manual in details before operation Please use the right plug and right voltage (110 V) Don’t hit the platform rudely and overload Adjust the bubble level on the balance position Don’t put the chemical liquid or other liquids Don’t open the scale by yourself and please call to avoid damage to the scale the service people or our distributor when you get the...
-
Page 3: Table Of Contents
SWT USER MANUAL v1 Please recharge the scale on time to assure the health of the battery, and replace the battery if it runs out of life. The replaced battery must be handled correctly. INDEX Specifications Power Before using System power consumption... -
Page 4: Specifications
SPECIFICATIONS Accuracy: Class III ≤0.01%F.S Nonlinear: System working voltage: DC:5V Maximum A/D converting: 24bit Sample rate: 30 times per second (default) POWER Input: 120~240V Output: 12V/1A Rechargeable battery: 6V/4AH BEFORE USING 1) Place this product on a firm and smooth place, don´t place it in vibration or shaking, use bench for use on four only adjust foot, adjust the balance using the bubble level. -
Page 5: Display Description
SWT USER MANUAL v1 DISPLAY DESCRIPTION SWT Model: BASIC FUNCTION OPERATION Press and hold this key for 2 seconds to turn off the balance. Function 1. Press this key to turn on the balance. Function 2. To reset the weight to 0 ,but the displayed weight value has to be less than ±... -
Page 6: Basic Parameter Setting
BASIC PARAMETER SETTING To access to functions setting, press the key in weighing mode.Press the key to select the parameter (UF-1 ~ UF-7 ) UF-1 Internal value and battery voltage key to view the A/D count, such as 14295 . 1. -
Page 7: Auto-Power Off
SWT USER MANUAL v1 Remarks: A --- Buzzer on: 0= Stable not required 1= Stable required B –- LED indicator: 0= Stable not required 1= Stable required C : Buzzer beeps when: 0= Buzzer off 1= OK 2= LO or HI Please note that low limit set as 0 will clear all check weigh values, even there is a high limit set. -
Page 8: Speed Setting
UF-5 Speed setting Modes: spEED1 : High speed spEED2 : Standard speed spEED3 : Low speed 1. Press the key to access to enter. 2. Use the key to select number. 3. Press the key to confirm. UF-6 Zero tracking Modes: Zp 0 : OFF 1 : One division tracking at zero... -
Page 9: Ecf-1 Zero And Span Calibration
SWT USER MANUAL v1 Quick Weight Calibrations (ECF1-ECF3) 1. In weight mode, press the key for more than 2 seconds, the display will show ECF-1 . key to select ECF-1 , ECF-2 or ECF-3 . 2. Press the ECF-1 Zero and Span Calibration key to enter, display will show cALZ . - Page 10 Advanced Function Operations To get into locked functions (LF1-LF8), press and hold until 100611 is shown and then release. Use to Enter P0020 Increase the values upward and then recycle the values. Move the cursor to the right and confirm (Enter). Table: Locked Functions for advanced operations Weight calibration Configurations for capacity, decimals and divisions.
- Page 11 SWT USER MANUAL v1 Detailed steps to set up configuration (LF2) Enter the function LF 2 to set the units, range mode, calibration units, decimal position of the separator and division size. 262144 Display internal values. Press for the next screen...
- Page 12 Gravity Measurement, Inc. 665 N Reservoir St. Lancaster, PA 17602 Phone: 518-526-5942 Email: info@gravitymeasurement.com Web: www.gravitymesurement.com GRAVITY MEASUREMENT, INC.
