METRUM Onyx User Manual page 7

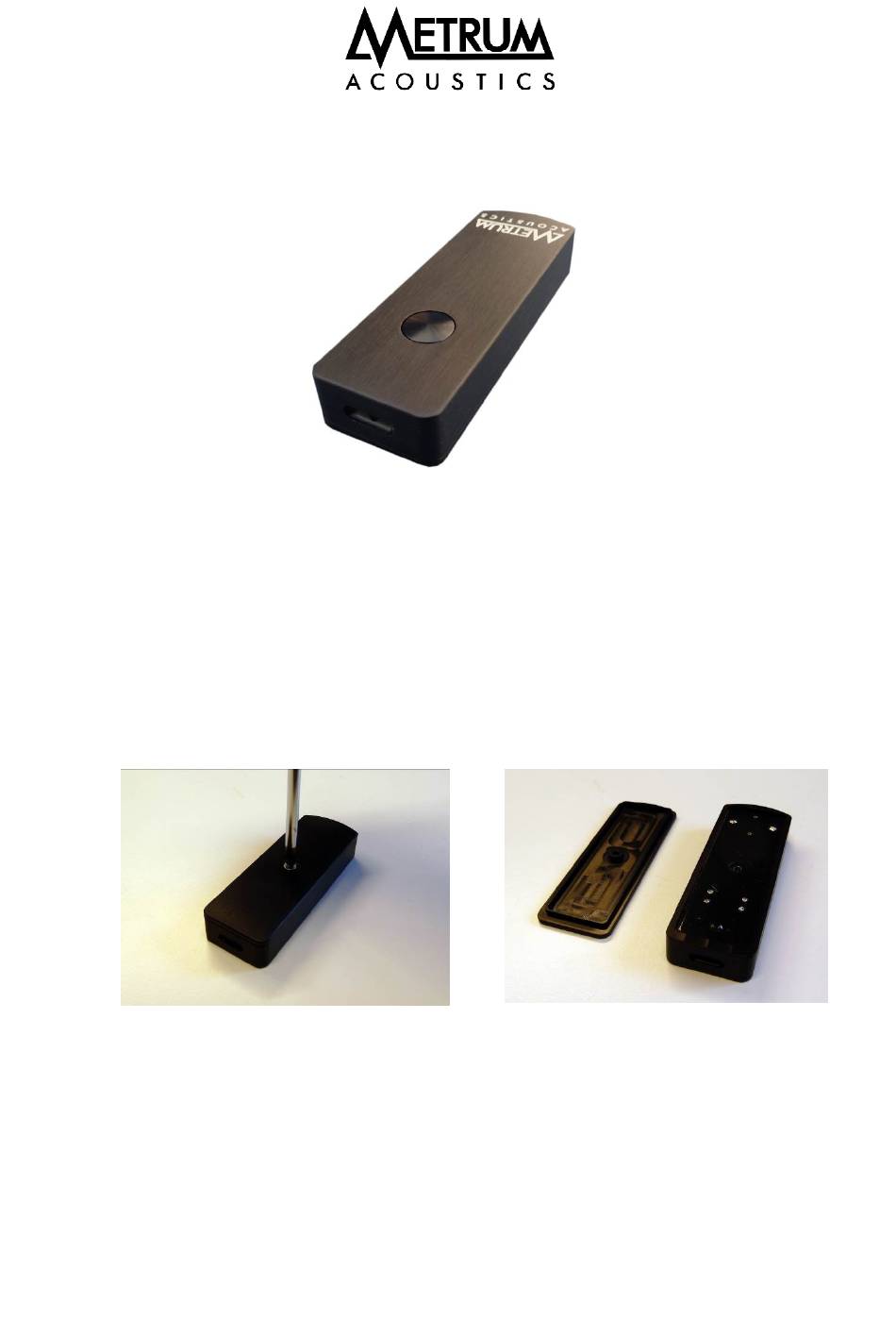

Remote control
The remote control is made to control the available digital inputs. As opposed to the front
panel buttons were you can select one of the digital sources directly , the remote will toggle
through the entire range of available digital sources.
When the Onyx is set into the stand-by mode, it will remember the last input selection and is
available again when the Onyx is switched on.
Replacing the battery
If the button is not activated there is no power consumption at all, which leads to a very long
battery life cycle. The battery used is a CR1632 button type of 3 Volts and can be replaced on
the following way:
Use a middle sized Philips screw driver to remove the screw from the back of the remote.
By removing the back cover the printed circuit board will be visible.
