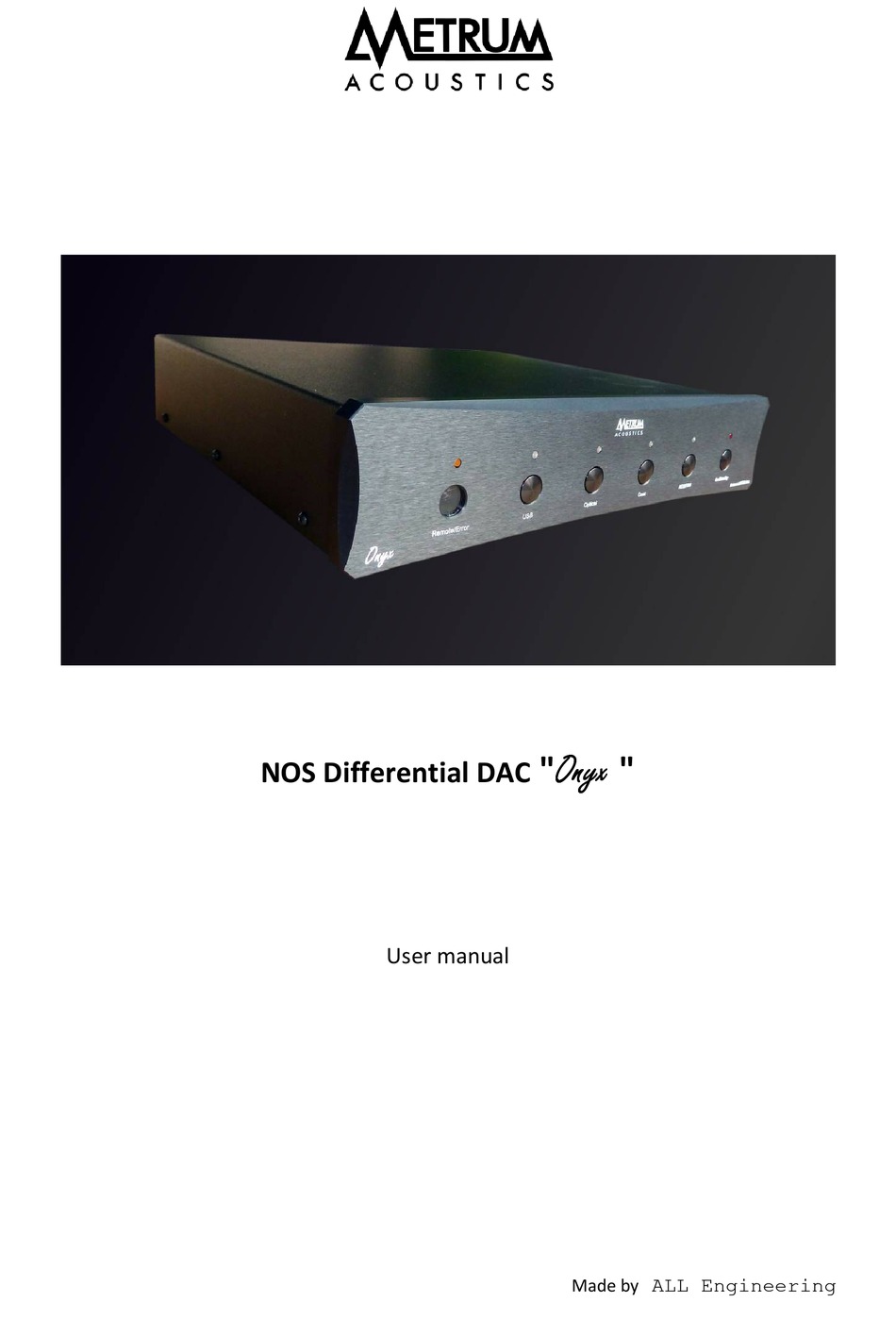

- Page 1 " Onyx Onyx Onyx Onyx " NOS Differential DAC User manual Updated 03-10-2017 Made by ALL Engineering...
- Page 2 In short, the ONYX is a DAC that has taken all the lessons and experiences that her designer has learned over the years, and combined them in an ambitious DAC that can fit in every system.
-
Page 3: Important Safety Instructions
10. The Onyx DAC must be placed on a firm, level surface where it is not exposed to dripping or splashing. - Page 4 What is in the Box The Onyx dac • Power cord (only Euro or USA based power cords) • USB cable • USB stick with user manual and USB drivers • Made by ALL Engineering...
- Page 5 RCA outputs: Standard interlinks can be used to connect the dac to your amplifier. The • "Onyx" is designed conform the "Red book standard" so the maximum output will be 2 Volts RMS or 5.7 Volts peak to peak. Your (pre)amplifier should handle this output level.
-
Page 6: Operation
Remote switches: The Onyx shares the same back plate with our Jade pre-amplifier . In case • of the remote switch connectors they are omitted in case of the Onyx. Operation On/Standby switch : To reduce power the mother board will be switched off in stand-by •... - Page 7 , the remote will toggle through the entire range of available digital sources. When the Onyx is set into the stand-by mode, it will remember the last input selection and is available again when the Onyx is switched on.
- Page 8 By turning the housing upside down the printed circuit board will fall out and the component side will be visible now. As shown above push the battery out of its holder by using the back side of a swab. Take the new battery and push it in the battery holder with the “+”...
- Page 9 Coaxial: 44.1 - 192 kHz sampling, 16 or 24 bits. USB: 44.1- 384 kHz sampling , 16 or 24 bits Dimensions hxwxd: 60 x 290 x 250 mm. Weight: 3100 gram. Subject to change without notice. Metrum Acoustics Ambachtsweg 4K 3953BZ Maarsbergen The Netherlands Tel: +31 (0)343437331 Email: info@metrumacoustics.nl Website: http://www.metrumacoustics.nl...
