M
7
V
I
T
B
r
a
v
o
M 7
7 V
V I
I T
T B
B r
r a
a v
v o
o
M

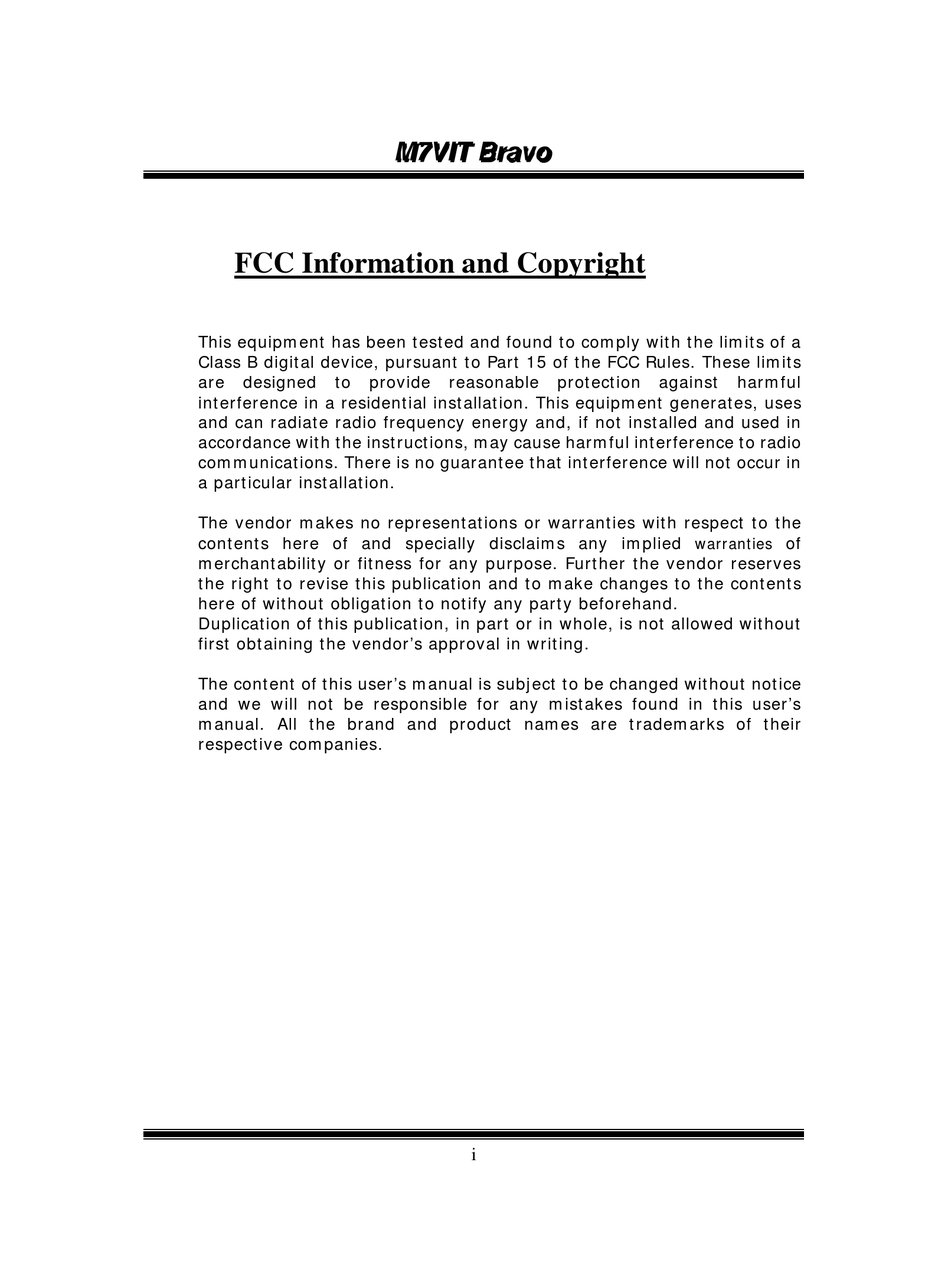

FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are
designed
to
provide
reasonable
protection
against
harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. There is no guarantee that interference will not occur in
a particular installation.
The vendor makes no representations or warranties with respect to the
contents here of and specially disclaims any implied
of
warranties
merchantability or fitness for any purpose. Further the vendor reserves
the right to revise this publication and to make changes to the contents
here of without obligation to notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without
first obtaining the vendor's approval in writing.
The content of this user's manual is subject to be changed without notice
and we will not be responsible for any mistakes found in this user's
manual. All the brand and product names are trademarks of their
respective companies.
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M7VIT Bravo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Biostar M7VIT Bravo

  • Page 1 FCC Information and Copyright This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits designed provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 2: Table Of Contents

    LAYOUT OF M7VIT BRAVO ... 1 COMPONENT INDEX... 2 M7VIT BRAVO SYSTEM STRUCTURE ... 3 ENGLISH... 4 M7VIT Bravo Features...4 Package contents...5 How to set up Jumper...6 CPU Installation...6 DDR DIMM Modules: DDR1, DDR2...7 Installing DDR Module ...7 Jumpers, Headers, Connectors & Slots ...8 WARPSPEEDER...
  • Page 3: Layout Of M7Vit Bravo

    Layout of M7VIT Bravo NOTE: ●represents the first pin.
  • Page 4: Component Index

    Component Index A. Back Panel Connector B. ATX Power Connector:ATX1 C. CD-ROM Audio-In Header:JCDIN1 D. Digital Audio Connector:JSPDIF1 E. Front Audio Header:JAUDIO1 F. Accelerated Graphics Port Slot:AGP1 G. PCI BUS Slots:PCI 1-5 H. Front Panel Connector:JPANEL1 I. Clear CMOS Function:JCMOS1 J.
  • Page 5: M7Vit Bravo System Structure

    M7VIT Bravo System Structure CPU+SocketA KT400A DDR266/333/400 AGP4X/8X VT8235CE 6 USB2.0 AC? 7 ATA33/66/100/133 V IA VT 61 03 BIOS IDE1/IDE2 10Mb/s, 100Mb/s 5 PCI Master ITE I/O ITE IT8705F Floopy/Printer/Keyboard/Mouse...
  • Page 6: English

    English M7VIT Bravo Features A. Hardware Provides Socket A. ® Supports single AMD Athlon XP/ Duron Family processor. Front Side Bus at 200/266/333 MHz. Chipset North Bridge: VIA KT400A. South Bridge: VIA VT8235CE. Main Memory Supports up to 2 DDR devices.
  • Page 7: Bios & Software

    On Board Peripherals a. Rear side 1 x serial port. 1 x parallel port. (SPP/EPP/ECP mode) 1x Audio ports in vertical position. 1 x RJ-45 LAN jack. 1 x PS/2 mouse and 1 x PS/2 keyboard. 4 x USB2.0 ports. (2 x USB2.0: Optional) b.
  • Page 8: How To Set Up Jumper

    How to set up Jumper The illustration shows how to set up a jumper. When the Jumper cap is placed on pins, the jumper is “close”. If no jumper cap is placed on the pins, the jumper is ”open”. The illustration shows a 3-pin jumper whose pin 1 and 2 are “close”...
  • Page 9: Ddr Dimm Modules: Ddr1, Ddr2

    CPU Fan Header: JCFAN1 JCFAN1 System Fan Header: JSFAN1 JSFAN1 DDR DIMM Modules: DDR1, DDR2 DRAM Access Time: 2.5V Unbuffered/ Registered DDR 266 MHz (PC2100)/ DDR 333 MHz (PC2700)/ DDR 400 MHz (PC3200) Type required. DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184 pin) DIMM Socket DDR Module Location...
  • Page 10: Jumpers, Headers, Connectors & Slots

    3D graphics. Serial ATA Connector: JSATA1/ JSATA2 (Optional) The motherboard has a PCI to SATA Controller with 2 channels SATA interface, it satisfies the SATA 1.0 spec and can transfer data with 1.5 Gb/s speed.
  • Page 11: Front Panel Connector: Jpanel1

    Front Panel Connector: JPANEL1 PWR_LED JPANEL1 Assignment Function Speaker Connector Speaker HDD LED (+) Hard Drive HDD LED (-) Ground Reset Button Reset Control IrDA Connector IRTX Power Connectors: ATX1 Assignment Standby Voltage ATX1 ON/OFF (+) (-) HLED Assignment Sleep Control Ground Power LED (+) Power LED (+)
  • Page 12: Clear Cmos Data

    Clear CMOS Jumper: JCMOS1 JCMOS1 Pin 1-2 Close Pin 2-3 Close ※ Clear CMOS Procedures: 1. Remove AC power line. 2. Set the jumper to “Pin 2-3 Close”. 3. Wait for five seconds. 4. Set the jumper to “Pin 1-2 Close”. 5.
  • Page 13: Front Panel Audio Header: Jaudio1

    Front Panel Audio Header: JAUDIO1 Assignment Left stereo Mic In/ Center Right stereo Mic In/ Bass Right Line Out/ Speaker Out Right Reserved Left Line Out/ Speaker Out Left Right Line In/ Rear Speaker Right Left Line In/ Rear Speaker Left Front USB Header: JUSB2/ (JUSB3: Optional) Assignment JUSB2/...
  • Page 14 Back Panel Connectors Printer Port Line In Speaker Out Mic In PS/2 PS/2 COM1 Mouse Keyboard (Optional) 6 Channel Speakers Line In/ Rear Speaker (Left & Right) Speaker Out/ Right & Left Mic In/ Center & Bass...
  • Page 15: Warpspeeder

    WarpSpeeder Introduction [ WarpSpeeder™ ], a new powerful control utility, features three user-friendly functions including Overclock Manager, Overvoltage Manager, and Hardware Monitor. With the Overclock Manager, users can easily adjust the frequency they prefer or they can get the best CPU performance with just one click. The Overvoltage Manager, on the other hand, helps to power up CPU core voltage and Memory voltage.
  • Page 16: Installation

    Installation Execute the setup execution file, and then the following dialog will pop up. Please click “Next” button and follow the default procedure to install. When you see the following dialog in setup procedure, it means setup is completed. If the “Launch the WarpSpeeder Tray Utility” checkbox is checked, the Tray Icon utility and [WarpSpeeder™] utility will be automatically and immediately launched after you click “Finish”...
  • Page 17: Usage

    Usage The following figures are just only for reference, the screen printed in this user manual will change according to your motherboard on hand. [WarpSpeeder™] includes 1 tray icon and 5 panels: 1. Tray Icon: Whenever the Tray Icon utility is launched, it will display a little tray icon on the right side of...
  • Page 18 This utility is responsible for conveniently invoking [WarpSpeeder™] Utility. You can use the mouse by clicking the left button in order to invoke [WarpSpeeder™] directly from the little tray icon or you can right-click the little tray icon to pop up a popup menu as following figure.
  • Page 19 3. Voltage Panel Click the Voltage button in Main Panel, the button will be highlighted and the Voltage Panel will slide out to up as the following figure. In this panel, you can decide to increase CPU core voltage and Memory voltage or not. The default setting is “No”.
  • Page 20 4. Overclock Panel Click the Overclock button in Main Panel, the button will be highlighted and the Overclock Panel will slide out to left as the following figure.
  • Page 21 Overclock Panel contains the these features: a. “–3MHz button”, “-1MHz button”, “+1MHz button”, and “+3MHz button”: provide user the ability to do real-time overclock adjustment. Warning: Manually overclock is potentially dangerous, especially when the overclocking percentage is over 110 %. We strongly recommend you verify every speed you overclock by click the Verify button.
  • Page 22 “Auto-overclock button”: User can click this button and [ WarpSpeeder™ ] will set the best and stable performance and frequency automatically. [ WarpSpeeder™ ] utility will execute a series of testing until system fail. Then system will do fail-safe reboot by using Watchdog function. After reboot, the [ WarpSpeeder™ ] utility will restore to the hardware default setting or load the verified best and stable frequency according to the Recovery Dialog’s setting.
  • Page 23 5. Hardware Monitor Panel Click the Hardware Monitor button in Main Panel, the button will be highlighted and the Hardware Monitor panel will slide out to left as the following figure. In this panel, you can get the real-time status information of your system. The information will be refreshed every 1 second.
  • Page 24 Note: Because the overclock, overvoltage, and hardware monitor features are controlled by several separate chipset, [ WarpSpeeder™ ] divide these features to separate panels. If one chipset is not on board, the correlative button in Main panel will be disabled, but will not interfere other panels’ functions.
  • Page 25: Trouble Shooting

    Trouble Shooting PROBABLE No power to the system at all Power light don’t illuminate, fan inside power supply does not turn on. Indicator light on keyboard does not turn on PROBABLE System inoperative. Keyboard lights are on, power indicator lights are lit, hard drive is spinning.
  • Page 26 12/26/2003...
