Table of Contents

LRN CLR

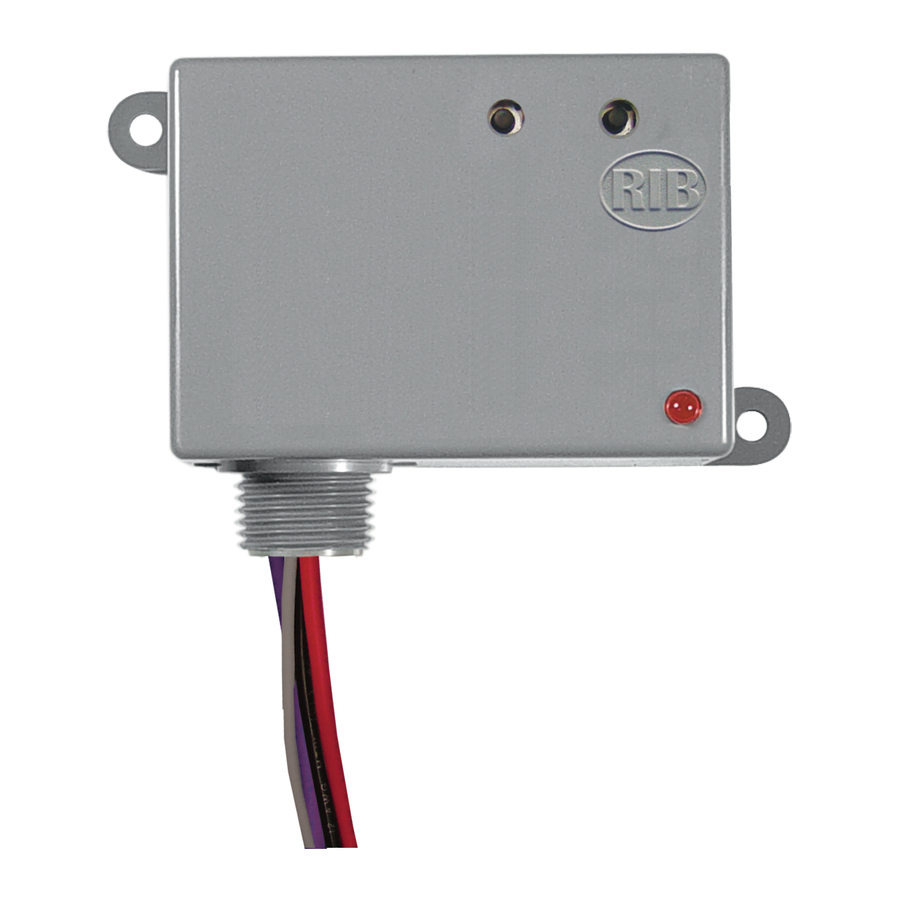

FDLR20GV
Getting Started
• Plan where you will mount each receiver and transmitter.
• Avoid transmitting along a length of wall, sharp angles and large obstructions.
• Avoid mounting inside a metal enclosure.
• Typical range is 100' line of sight.
• Link devices to each other before installing. See linking instructions (per application) on following pages.
• All FDLR products must be powered during Link.
• PHC Gateway Controller can also link with an FDLR product and be bi-directional.
• Relay state at power-up can be set to ON, OFF, or LAST STATE (default).
• Each FDLR product can be Linked to up to 30 transmitters of any combination.
902 MHz Model
Power Input (Vac)
FDLR20GV
120-277Vac
FDLTMAG
None
FDLTS2
None
FDLTKEY
None
FDLTVC
None
FDLTVW
None
Functional Devices, Inc.'s EnOcean
Compatible Device from other Manufacturers
PHC Gateway Controller
EEP A5-38-08
Light Level Sensor
EEP A5-06-02
393278
Functional Devices, Inc.
101 Commerce Drive
Sharpsville, IN 46068
FDLTMAG
FDLTS2
(Switch and
cover plate)
Contact Rating (A)
20
NA
NA
NA
NA
NA
®
Manufacturer ID is 0x055.
0x02 (Dimming Profile)
Toll Free:
(800) 888-5538
Office:
(765) 883-5538
Fax:
(765) 883-7505
FDLTKEY
FDLTVC
Transmission Source
EEP
Status Change/Heartbeat
A5-11-01
Contact Closure
D5-00-01
Button Press
F6-02-02
Insert/Remove Card
F6-04-01
Occupancy Detected
A5-07-01
Occupancy Detected
A5-07-01
Email:
sales@functionaldevices.com
Website:
www.functionaldevices.com
B2489
FDLTVW

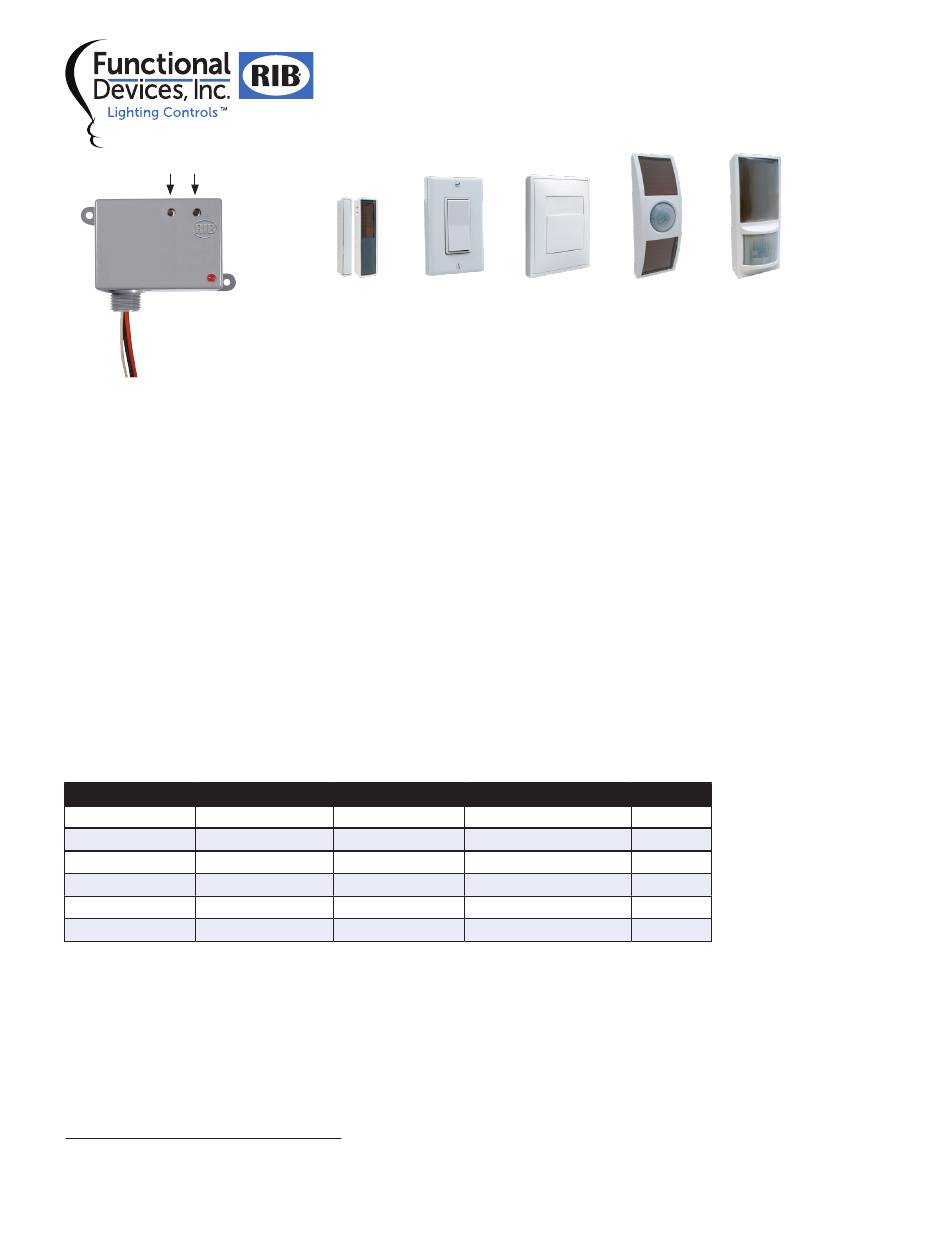

page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FDLR20GV and is the answer not in the manual?

Questions and answers

Related Manuals for Functional Devices FDLR20GV

Summary of Contents for Functional Devices FDLR20GV

  • Page 1 F6-04-01 FDLTVC None Occupancy Detected A5-07-01 FDLTVW None Occupancy Detected A5-07-01 Functional Devices, Inc.’s EnOcean ® Manufacturer ID is 0x055. Compatible Device from other Manufacturers PHC Gateway Controller EEP A5-38-08 0x02 (Dimming Profile) Light Level Sensor EEP A5-06-02 page 1...
  • Page 2 Gateway 0-10V Output • Both devices must be able to receive and transmit. • Gateway can control the relay and 0-10V outputs of the FDLR20GV. • FDLR20GV re-transmits status every 70-140 seconds. • Optional modes: Repeater (see page 4) Bi-directional Link Procedure 1.
  • Page 3 Functional Devices, Inc. Toll Free: (800) 888-5538 Email: sales@functionaldevices.com 101 Commerce Drive Office: (765) 883-5538 Website: www.functionaldevices.com Sharpsville, IN 46068 Fax: (765) 883-7505 FDLTS2 Modes (Continued) FDLTKEY Mode B. Rocker Mode Momentary Mode • Relay activates when Rocker ON is pressed; relay deactivates when •...

  • Page 4: Optional Modes

    Functional Devices, Inc. Toll Free: (800) 888-5538 Email: sales@functionaldevices.com 101 Commerce Drive Office: (765) 883-5538 Website: www.functionaldevices.com Sharpsville, IN 46068 Fax: (765) 883-7505 B. Auto On: FDLR Product and an Occupancy / Vacancy Sensor (FDLTVW or FDLTVC) • Relay activates when occupancy is detected and deactivates 30 minutes after last detection of occupancy.

  • Page 5: Alarm Mode

    Functional Devices, Inc. Toll Free: (800) 888-5538 Email: sales@functionaldevices.com 101 Commerce Drive Office: (765) 883-5538 Website: www.functionaldevices.com Sharpsville, IN 46068 Fax: (765) 883-7505 Alarm Mode • Activating Alarm Mode requires all learned contact switches, FDLTMAG, to transmit a CLOSED telegram before relay will activate.
  • Page 6 Functional Devices, Inc. Toll Free: (800) 888-5538 Email: sales@functionaldevices.com 101 Commerce Drive Office: (765) 883-5538 Website: www.functionaldevices.com Sharpsville, IN 46068 Fax: (765) 883-7505 Clearing ID’s from Memory Global Clear (Reset to default settings) Clears all linked devices, disables optional modes, turns relay OFF, and sets 0-10V output to minimum.
  • Page 7 Functional Devices, Inc. Toll Free: (800) 888-5538 Email: sales@functionaldevices.com 101 Commerce Drive Office: (765) 883-5538 Website: www.functionaldevices.com Sharpsville, IN 46068 Fax: (765) 883-7505 Hotel Room Energy Control FDLR Product with FDLTMAG and FDLTKEY Consult factory. page 7 393278...
