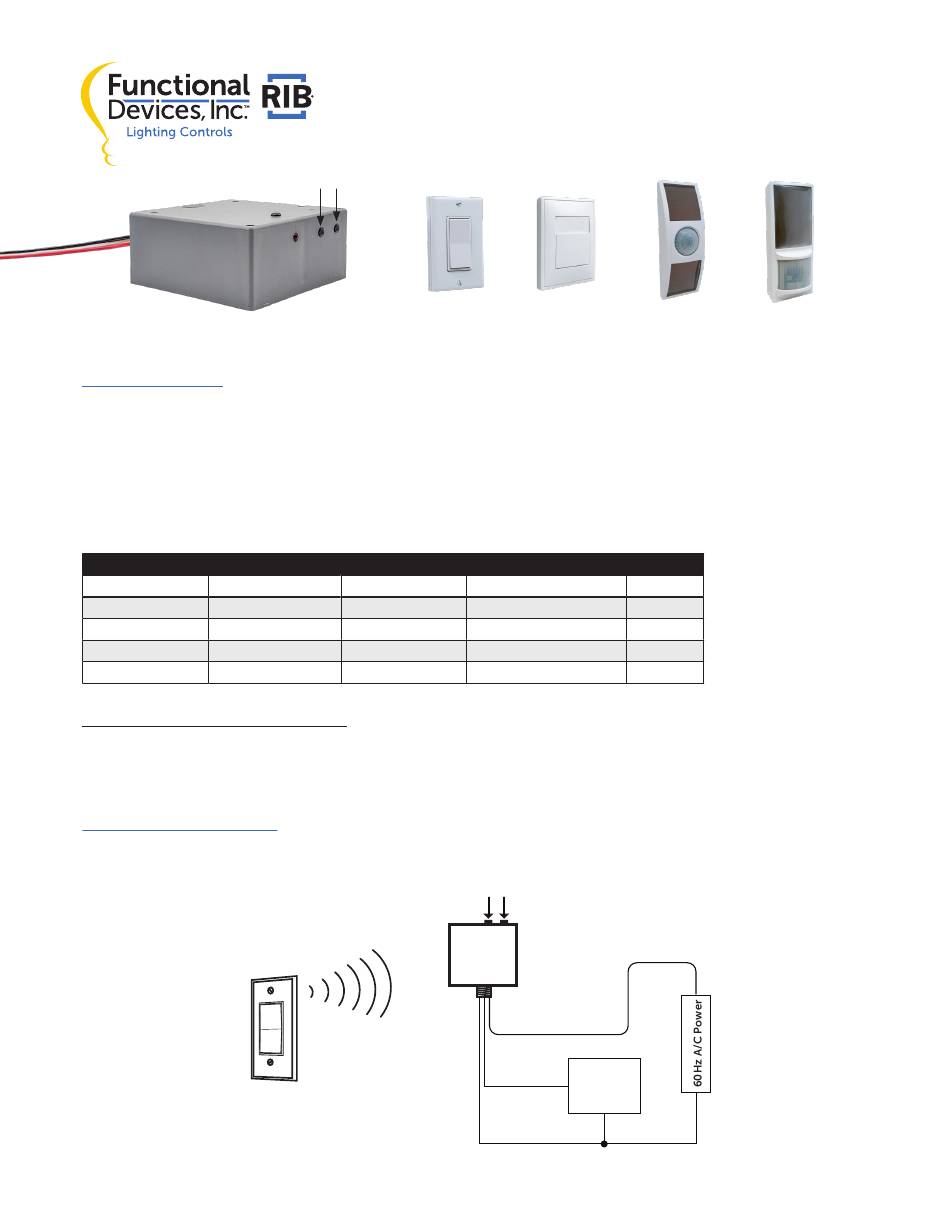

Functional Devices B2714 Quick Start Manual

FDLR05BPD
Getting Started
• Plan where you will mount each receiver and transmitter.
› Avoid transmitting along a length of wall, sharp angles and large obstructions.
› Avoid mounting inside a metal enclosure.
› Typical range is 100' line of sight.
• Link devices to each other before installing. [See linking instructions (per application) on following pages.]
› All FDLR products must be powered during Link.
• A Gateway Controller can link with an FDLR05BPD product and control its output.
• Load state at power-up can be set to ON or OFF.
• Each FDLR product can be Linked to up to 30 transmitters of any combination.
902 MHz Model Power Input (Vac)
FDLR05BPD 120Vac
FDLTS2 None
FDLTKEY None
FDLTVC None
FDLTVW None
Functional Devices, Inc.'s EnOcean
Compatible Device from other Manufacturers
Gateway Controller EEP A5-38-08
Light Level Sensor EEP A5-06-02
Lighting Applications
Simple Lighting Control: FDLR05BPD and FDLTS2 or FDLTKEY

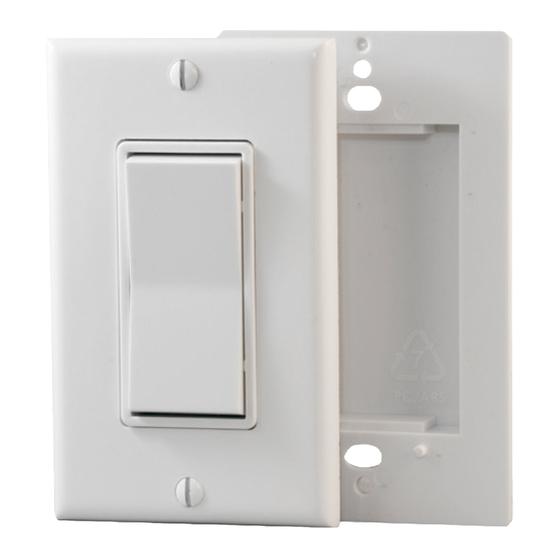

Rocker Switch
(FDLTS2)
393298
Functional Devices, Inc.
101 Commerce Drive
Sharpsville, IN 46068
CLR LRN
FDLTS2
(Switch and
cover plate)
Load Rating (W)
600
NA
NA
NA
NA
® Manufacturer ID is 0x055.
0x02 (Dimming Profile)
or
Keycard Switch
(FDLTKEY)
Toll Free: (800) 888-5538
Office: (765) 883-5538
Fax: (765) 883-7505
FDLTKEY
Transmission Source EEP
Status Change/Heartbeat A5-11-01
Button Press F6-02-02
Insert/Remove Card F6-04-01
Occupancy Detected A5-07-01
Occupancy Detected A5-07-01
CLR LRN
Blk
(FDLR05BPD)
Red
Dimmable
Load
Wht
Email: sales@functionaldevices.com
Website: www.functionaldevices.com
B2714
FDLTVC FDLTVW
