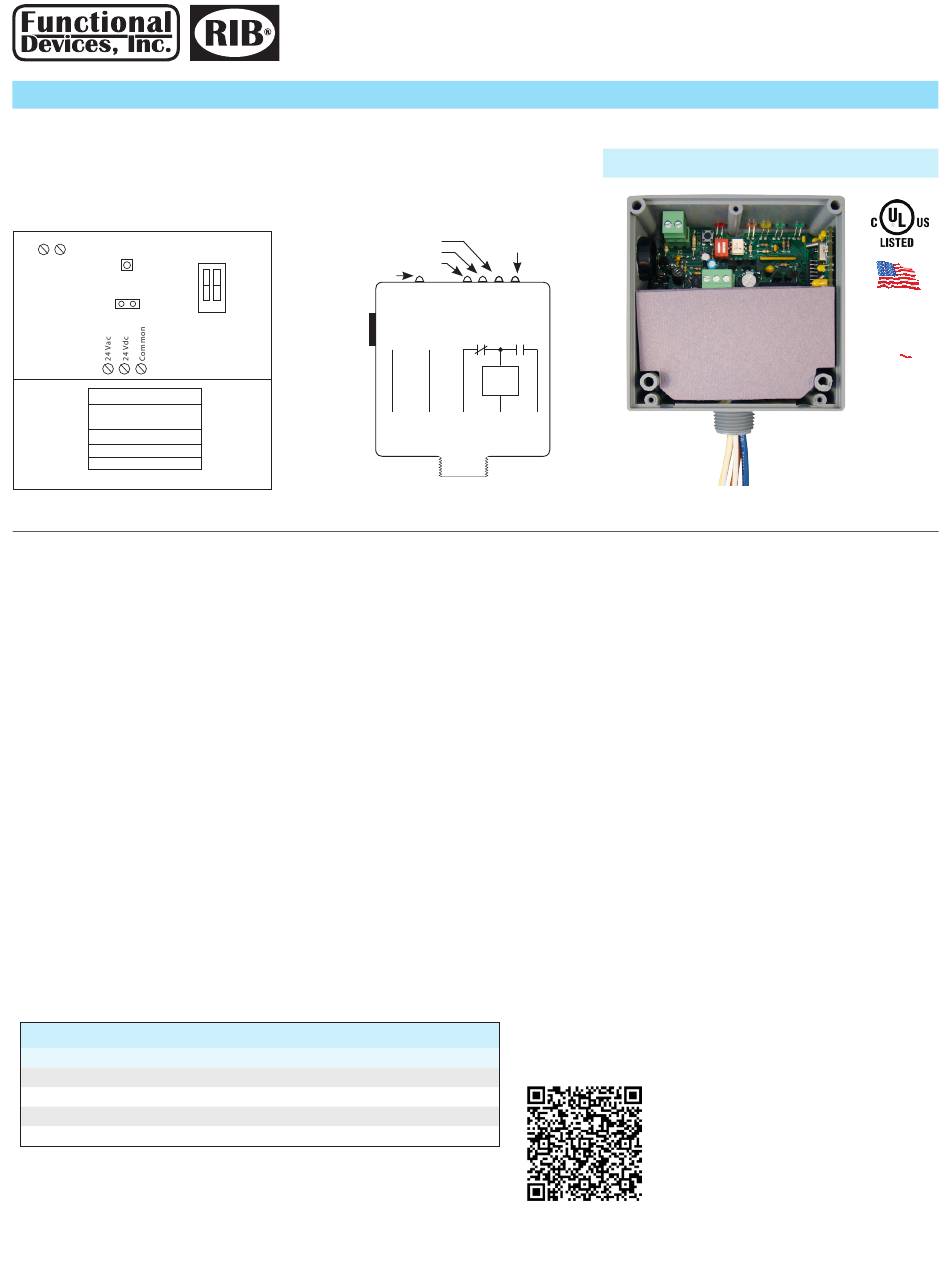

Functional Devices RIBTWXV-WI Series Quick Start Manual

Functional Devices, Inc.
RIBTWXV-WI Series
Wifi IEEE 802.11 Network Enclosed I/O Device: One Discrete Output (20 Amp Relay SPDT +
Override), One Discrete Input (Dry Contact, Class 2); Analog and Digital Current and Relative
Power* Indication; 24 Vac/dc; 120 Vac, 208 Vac, 240 Vac, or 277 Vac Power
RESET to Factory
DIP Switch
Defaults Pushbutton
Class 2
(Activate with
Dry Contact
insulated tool.)
Digital Input
J1 - Not Used
DIP Switch Relay Control
DIP Switch** Relay State
1 2
0 1 Auto
1 X Override ON
0 0 Override OFF
** 0 = Open ; 1 = Closed
Specifications
# Relays & Contact Type:
One (1) SPDT Continuous Duty Coil
Expected Relay Life: 10 million cycles minimum mechanical
Operating Temperature: -30 to 140° F
Operate Time: 18mS
Green LED: Device Status
Green LED:
Wifi Ad-Hoc Status
Yellow LED:
Wifi Infrastructure Status
Pink LED: Digital Input Status
Red LED: Relay Status
Dimensions: 4.00˝ x 4.00˝ x 1.80˝ with .50˝ NPT Nipple
Wires: 16˝, 600V Rated
Approvals: UL Listed, UL916, C-UL
FCC, Wifi Certified ASD Device
Housing Rating: UL Accepted for Use in Plenum, NEMA 1 No
Gold Flash: DIP Switch Control
Relay Override Switch: 0.50 Amp - 20 Amps, in 0.25 Amp increments
Current Sensor Range: IEEE 802.11 b/g/n Compatible
Wifi: 2 Mbps Data Rate
-91 dBm Min. Sensitivity
+102 Bm Max Output Power
Currently Unsecured Connection
(WPA-PSK or WPA-2-PSK Available)
Supports PING and ARP
DSSS Modulation
RIBTWXV-WI Series Selection Guide
Model# 24 Vac/dc
RIBTWXV2401B-WI
•
RIBTWXV24208B-WI •
RIBTWXV24240B-WI
•
RIBTWXV24277B-WI •
• p: 800.888.5538 • f: 765.883.7505
GREEN LED = Wifi Ad-Hoc Status
YELLOW LED = Wifi Infrastructure Status
OPEN
PINK LED = Digital Input Status
RED LED = Relay Status
2 1
CLOSED
120 Vac 208 Vac 240 Vac
•
•
• www.functionaldevices.com
GREEN LED =
Device Status LED
Power
Sensing
Wht/Yel Wht/Blk Blu Yel Org
or N/C COM N/O
Wht/Brn
Contact Ratings:
20 Amp Resistive @ 277 Vac
20 Amp Ballast @ 120/277 Vac (N/O)
10 Amp Ballast @ 120/277 Vac (N/C)
Not rated for Electronic Ballast
10 Amp Tungsten @ 120 Vac (N/O)
2 HP @ 277 Vac
1 HP @ 120 Vac
Power Input Ratings:
125 mA Max @ 24 Vac
88 mA Max @ 24 Vdc
120 mA Max @ 120 Vac (RIBTWXV2401B-WI)
120 mA Max @ 208 Vac (RIBTWXV24208B-WI)
120 mA Max @ 240 Vac (RIBTWXV24240B-WI)
120 mA Max @ 277 Vac (RIBTWXV24277B-WI)
Available TCP/IP Settings:
•
IP Address (Static)
•
Port Number
•
Subnet Mask
•
Gateway
• Ad-Hoc mode
• Infrastructure mode
• Scan for wireless networks
• Setup Instructions available on website.
http://www.functionaldevices.com/pdf/bulletins/B1598_393186.pdf
277 Vac
Or scan QR code with your smart phone.
•
•
• sales@functionaldevices.com
Network Compatible Relay / Current Sensor Combos
Code
Version
3.1
Device Settings:
•
Local Override
•
Reset to Network Defaults Pushbutton
Power Input:
24 Vac = Terminal Strip
24 Vdc = Terminal Strip (24 Vdc + 25% – 6%)
120 Vac = Wht/Blk Wire
208 Vac, 240 Vac, 277 Vac = Wht/Brn Wire
Neutral or Other Phase = Wht/Yel Wire
Device Settings by Network:
•
Power up default relay state
•
Host name and location labels
•
Relay bound to digital input
• Current threshold for go/no-go status
• Load voltage entry for power conversion
Notes:
• This device is not intended for revenue
grade power measurement. However, in
addition to Wifi load control, this device is
useful for building audits or LEED programs
requiring relative readings to inexpensively
pinpoint high power usage equipment or
to identify energy waste due to equipment
maintenance requirements or
malfunction. *
Made in USA
Meets
"Buy American"
of ARRA 2009
Wifi
