The Claremont Galactic Space Viewer

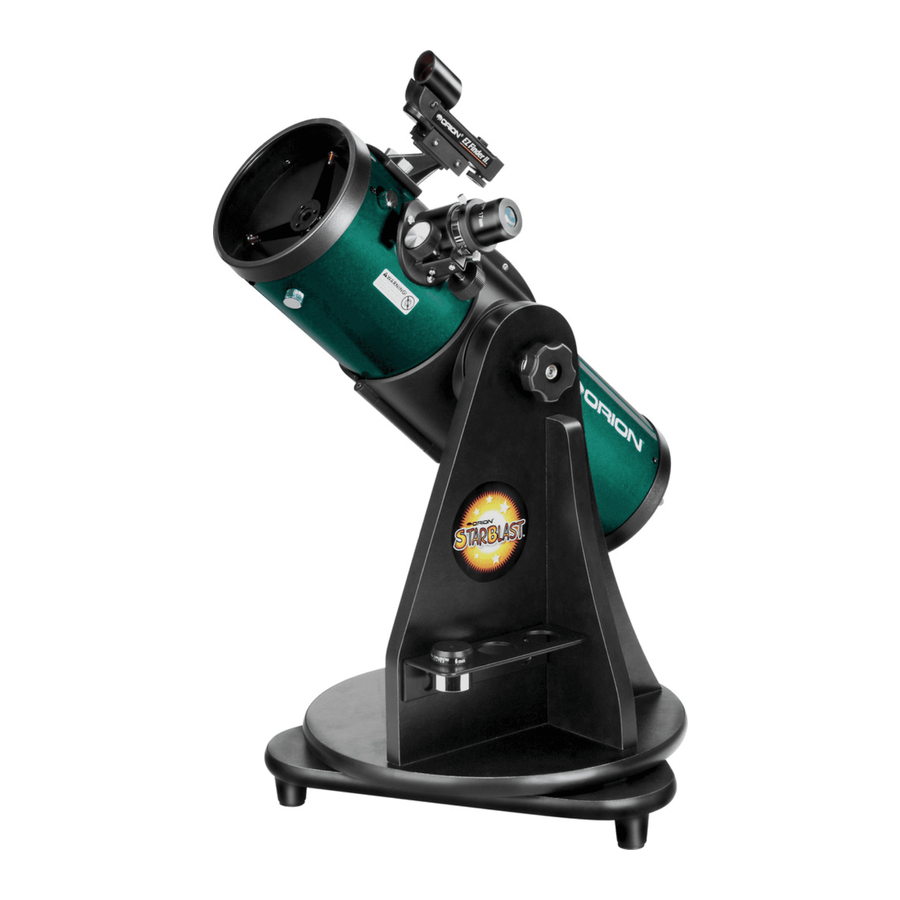

Orion StarBlast 4.5" Reflector Telescope
INSTRUCTION MANUAL
Claremont Public Library
208 North Harvard Avenue
Claremont, CA 91711
(909) 621-4902
This telescope is made available by the Friends of the Claremont Library
(http://www.claremontlibrary.org/)
and fostered by the Pomona Valley Amateur Astronomers (http://pvaa.us/)
For telescope maintenance, please contact Mathew Wedel
mathew.wedel@gmail.com
(preferred) or
info@pvaa.us
1
