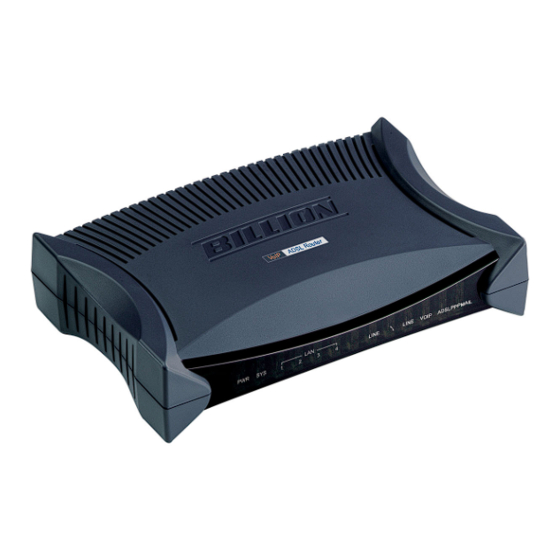

Billion BiPAC 7401VP User Manual

Voip/(802.11g) adsl2+ router
Hide thumbs Also See for BiPAC 7401VP:

Advertisement

Quick Links

Download this manual
BiPAC 7401VP/VGP
VoIP/(802.11g) ADSL2+ Router

User Manual

Version Release 5.07
Last Revision Date: 08-26-2008

Advertisement

loading
Need help?

Need help?

Do you have a question about the BiPAC 7401VP and is the answer not in the manual?

Questions and answers

Related Manuals for Billion BiPAC 7401VP

Summary of Contents for Billion BiPAC 7401VP

  • Page 1: User Manual

    BiPAC 7401VP/VGP VoIP/(802.11g) ADSL2+ Router User Manual Version Release 5.07 Last Revision Date: 08-26-2008...

  • Page 2: Table Of Contents

    CHAPTER 1: INTRODUCTION ... 3 NTRODUCTION TO YOUR OUTER ... 3 EATURES CHAPTER 2: INSTALLING THE ROUTER ... 6 MPORTANT NOTE FOR USING THIS ROUTER ... 6 ACKAGE ONTENTS ... 7 RONT ... 8 ORTS ... 9 ABLING CHAPTER 3: BASIC INSTALLATION ... 10 ...11 ONNECTING YOUR ROUTER ACTORY...
  • Page 3 Time Zone...53 Remote Access...54 Firmware Upgrade ...55 Backup / Restore ...56 Restart Router ...57 User Management ...58 Firewall and Access Control ... 59 General Settings ...60 Packet Filter...61 Intrusion Detection...69 URL Filter...71 IM / P2P Blocking ...73 Firewall Log ...74 VoIP (Voice over Internet Protocol) ...

  • Page 4: Chapter 1: Introduction

    Introduction to your Router Welcome to the VoIP/(802.11g) ADSL2+ Router. The router is an “all-in-one” VoIP ADSL router, combining an ADSL modem, ADSL router, Ethernet network switch and 1 ports for Voice over IP functionalities, providing everything you need to get the machines on your network connected to the Internet over your ADSL broadband connection.
  • Page 5 VoIP/(802.11g) ADSL2+ Router Quick Installation Wizard It supports a WEB GUI page to install this device quickly. With this wizard, end users can enter the information easily which they get from their ISP, then surf the Internet immediately. Universal Plug and Play (UPnP) and UPnP NAT Traversal This protocol is used to enable simple and robust connectivity among stand-alone devices and PCs from many different vendors.
  • Page 6 VoIP/(802.11g) ADSL2+ Router Dynamic Host Configuration Protocol (DHCP) Client and Server In the WAN site, the DHCP client can get an IP address from the Internet Service Provider (ISP) automatically. In the LAN site, the DHCP server can allocate a range of client IP addresses and distribute them including IP address, subnet mask as well as DNS IP address to local computers.

  • Page 7: Chapter 2: Installing The Router

    Important note for using this router Do not use this router in high humidity or high temperatures. Do not use the same power source for this router as other equipment. Do not open or repair the case yourself. If this router is too hot, Warning turn off the power immediately and have it repaired at a qualified service center.

  • Page 8: The Front Leds

    The Front LEDs LAN Port 3 – 6 1X—4X (RJ-45 connector) WLAN (Wireless router only) Phone (RJ-11 connector) LINE VoIP Port (RJ-11 connector) ADSL PPP / MAIL Chapter 2: Installing the router Meaning Lit when power is ON. Lit when the system is ready. Lit when connected to an Ethernet device.

  • Page 9: The Rear Ports

    The Rear Ports The Ethernet Port # 4 can be used as a console port. You need a special console tool which already includes in the package to connect with LAN port 4 and PC’s RS-232 port (9-pin serial port). Port Power Switch Power...

  • Page 10: Cabling

    ADSL Antenna (Wireless router only) Cabling One of the most common causes of problems is bad cabling or ADSL line(s). Make sure that all connected devices are turned on. On the front of the product is a bank of LEDs. Verify that the LAN Link and ADSL line LEDs are lit.

  • Page 11: Chapter 3: Basic Installation

    The router can be configured with your web browser. A web browser is included as a standard application in the following operating systems: Linux, Mac OS, Windows 98/NT/2000/XP/Me, etc. The product provides an easy and user-friendly interface for configuration. Please check your PC’s network components. The TCP/IP protocol stack and Ethernet network adapter must be installed.

  • Page 12: Connecting Your Router

    3. Make sure the PWR and SYS LEDs are lit steadily and that the LAN LED is lit. 4. Connect an RJ11 cable to VoIP port when connecting to an analog phone set. 5. Connect RJ-11 cable to LINE Port when connecting to the telephone wall jack. (802.11g is not supported in BiPAC 7401VP) Switching/ ADSL...
  • Page 13 Configuring PCs in Windows in Window XP Go to Start / Control Panel (in Classic View). In the Control Panel, double-click Network Connections. Double-click Local Area Connection. (See Figure 3.1) In the LAN Area Connection Status window, click Properties. (See Figure 3.2) Select Internet Protocol (TCP/IP) and click Properties.

  • Page 14: Configuring Pcs In Windows 2000

    Configuring PCs in Windows 2000 Go to Start / Settings / Control Panel. In the Control Panel, double-click Network and Dial-up Connections. Double-click Local Area (“LAN”) Connection. (See Figure 3.5) In the LAN Area Connection Status window, click Properties. (See Figure 3.6) Select Internet Protocol (TCP/IP) and click Properties.

  • Page 15: Configuring Pc In Windows 95/98/Me

    Configuring PC in Windows 95/98/ME Go to Start / Settings / Control Panel. In the Control Panel, double-click Network and choose the Configuration tab. Select TCP / IP -> NE2000 Compatible, or the name of any Network Interface Card (NIC) in your PC. (See Figure 3.9) Click Properties.
  • Page 16 Configuring PC in Windows NT4.0 Go to Start / Settings / Control Panel. In the Panel, double-click Network and choose the Protocols tab. Select TCP/IP Protocol and click Properties. (See Figure 3.12) Select the Obtain an IP address from a DHCP server radio button and click OK.

  • Page 17: Factory Default Settings

    Factory Default Settings Before configuring your, you need to know the following default settings. Web Interface (Username and Password) Username: admin Password: admin The default username and password are “admin” and “admin” respectively. If you ever forget the username/password to login to the router, you may press the RESET button up to 6 seconds to restore the factory default settings.

  • Page 18: Information From Your Isp

    Information from your ISP Before configuring this device, you have to check with your ISP (Internet Service Provider) to find out what kind of service is provided such as DHCP (Obtain an IP Address Automatically, Static IP (Fixed IP Address) and PPPoE. Gather the information as illustrated in the following table and keep it for reference.

  • Page 19: Configuring With Your Web Browser

    VoIP/(802.11g) ADSL2+ Router Configuring with your Web Browser Open your web browser, enter the IP address of your router, which by default is 192.168.1.254, and click “Go”, a user name and password window prompt will appear. The default username and password are “admin”...

  • Page 20: Chapter 4: Configuration

    At the configuration homepage, the left navigation pane where bookmarks are provided links you directly to the desired setup page, including: Status ARP Table Wireless Association Routing Table DHCP Table Email Status VoIP Status Event Log Error Log NAT Sessions Diagnostic UPnP Portmap Quick Start...

  • Page 21: Status

    Status ARP Table This section displays the router’s ARP (Address Resolution Protocol) Table, which shows the mapping of Internet (IP) addresses to Ethernet (MAC) addresses. This is useful as a quick way of determining the MAC address of the network interface of your PCs to use with the router’s Firewall – MAC Address Filter function.

  • Page 22: Dhcp Table

    VoIP/(802.11g) ADSL2+ Router Routing Table Valid: It indicates a successful routing status. Destination: The IP address of the destination network. Netmask: The destination netmask address. Gateway/Interface: The IP address of the gateway or existing interface that this route will use. Cost: The number of hops counted as the cost of the route.

  • Page 23: Email Status

    VoIP/(802.11g) ADSL2+ Router Expired Table Please refer the Leased Table. Permanent Table Name: The name you assigned to the Permanent configuration. IP Address: The fixed IP address for the specify client. MAC Address: The MAC Address that you want to assign the fixed IP address Maximum Lease Time: The maximum lease time interval you allow to clients Email Status Details and status for the Email Account you have configured the router to check.

  • Page 24: Event Log

    VoIP/(802.11g) ADSL2+ Router Event Log This page displays the router’s Event Log entries. Major events are logged to this window, such as when the router’s ADSL connection is disconnected, as well as Firewall events when you have enabled Intrusion or Blocking Logging in the Configuration – Firewall section of the interface. Please see the Firewall section of this manual for more details on how to enable Firewall logging.

  • Page 25: Nat Sessions

    VoIP/(802.11g) ADSL2+ Router NAT Sessions This section lists all current NAT sessions between interface of types external (WAN) and internal (LAN). Diagnostic It tests the connection to computer(s) which is connected to LAN ports and also the WAN Internet connection. If PING is shown FAIL and the rest is PASS, you ought to check your www.google.com PC’s DNS settings is set correctly.

  • Page 26: Upnp Portmap

    VoIP/(802.11g) ADSL2+ Router UPnP Portmap The section lists all port-mapping established using UPnP (Universal Plug and Play). Please see the Advanced section of this manual for more details on UPnP and the router’s UPnP configuration options. Chapter 3: Basic Installation...

  • Page 27: Quick Start

    VoIP/(802.11g) ADSL2+ Router Quick Start For detailed instructions on configuring your WAN settings, please see the WAN section of this manual. Usually, the only details you will need for the Quick Start wizard to get you online are your login (often in the form of username@ispname), your password and the encapsulation type.
  • Page 28 VoIP/(802.11g) ADSL2+ Router Select the desired option from the list and click Apply to return to the Quick Start interface to continue configuring your ISP connection. Please note that the contents of this list will vary, depending on what is supported by your ISP.

  • Page 29: Configuration

    Configuration When you click this item, you get following sub-items to configure the ADSL router. LAN, WAN, System, Firewall, VoIP, QoS, Virtual Server, Time Schedule and Advanced These functions are described below in the following sections. LAN (Local Area Network) There are seven items within the LAN section: Filter, Wireless, Wireless Security, Wireless Client Filter, Port Setting Bridge Interface...

  • Page 30: Ethernet

    VoIP/(802.11g) ADSL2+ Router Ethernet Primary IP Address IP Address: The default IP on this router. SubNetmask: The default subnet mask on this router. RIP: RIP v1, RIP v2, and RIP v2 Multicast. Check to enable RIP function. IP Alias This function supports to create multiple virtual IP interfaces on this router. It helps to connect two or more local networks to the ISP or remote node.

  • Page 31: Ethernet Client Filter

    Ethernet Client Filter The Ethernet Client Filter supports up to 16 Ethernet network machines that helps you to manage your network control to accept traffic from specific authorized machines or can restrict unwanted machine(s) to access your LAN. There are no pre-define Ethernet MAC address filter rules; you can add the filter rules to meet your requirements.
  • Page 32 VoIP/(802.11g) ADSL2+ Router Active PC in LAN displays a list of individual Ethernet device’s IP Address & MAC Address which connecting to the router. You can easily by checking the box next to the IP address to be blocked or allowed. Then, Add to insert to the Ethernet Client Filter table.

  • Page 33: Wireless (Wireless Router Only)

    VoIP/(802.11g) ADSL2+ Router Wireless (Wireless Router only) Parameters WLAN Service: Default setting is set to Enable. If you do not have any wireless, both 802.11g and 802.11b, device in your network, select Disable. Mode: The default setting is 802.11b+g (Mixed mode). If you do not know or have both 11g and 11b devices in your network, then keep the default in mixed mode.
  • Page 34 Note: Wireless performance may degrade if select ID channel is already being occupied by other AP(s). TX PowerLevel: It is function that enhances the wireless transmitting signal strength. User may adjust this power level from minimum 0 up to maximum 255. Note: The Power Level maybe different in each access network user premises environment and choose the most suitable level for your network.

  • Page 35: Wireless Security (Wireless Router Only)

    VoIP/(802.11g) ADSL2+ Router Wireless Security (Wireless Router only) You can disable or enable with WPA or WEP for protecting wireless network.The default mode of wireless security is disabled. WPA Pre-Shared Key WPA Algorithms: There are two types of the WPA-PSK, WPA1 and WPA2. The WPA1 adapts the TKIP (Temporal Key Integrity Protocol) encrypted algorithms which incorporates Message Integrity Code (MIC) to provide protection against hackers.
  • Page 36 VoIP/(802.11g) ADSL2+ Router WEP Authentication: There are three options to choose, Open System, Shared Key and Both. The default is set to Open System which does not request a shared key between the AP sender and the AP client, only supplying a correct SSID and an encryption key if there is any. With Share Key authentication, the AP client is granted only if it provided correct challenge response to the AP.

  • Page 37: Wireless Client (Mac Address) Filter (Wireless Router Only)

    Wireless Client (MAC Address) Filter The MAC Address supports up to 16 wireless network machines and helps you to manage your network control to accept traffic from specific authorized machines or to restrict unwanted machine(s) to access your LAN. There are no pre-define MAC Address filter rules; you can add the filter rules to meet your requirements. Wireless Client Filter: Default setting is set to Disable.

  • Page 38: Port Setting

    VoIP/(802.11g) ADSL2+ Router Associate Wireless Client displays a list of individual wireless device’s MAC Address that currently connects to the router. You can easily by checking the box next to the MAC address to be blocked or allowed. Then, Add to insert to the Wireless Client (MAC Address) Filter table.

  • Page 39: Dhcp Server

    VoIP/(802.11g) ADSL2+ Router DHCP Server You can disable or enable the DHCP (Dynamic Host Configuration Protocol) server or enable the router’s DHCP relay functions. The DHCP protocol allows your router to dynamically assign IP addresses to PCs on your network if they are configured to obtain IP addresses automatically. To disable the router’s DHCP Server, check Disabled and click Next, then click Apply.

  • Page 40: Wan (Wide Area Network)

    VoIP/(802.11g) ADSL2+ Router WAN (Wide Area Network) WAN refers to your Wide Area Network connection, i.e. your router’s connection to your ISP and the Internet. There are two items within the WAN section: ISP, DNS ADSL. The factory default is PPPoE. If your ISP uses this access protocol, click Edit to input other parameters as below.
  • Page 41 VoIP/(802.11g) ADSL2+ Router RFC 1483 Routed Connections Description: Your description of this connection. VPI and VCI: Enter the information provided by your ISP. ATM Class: The Quality of Service for ATM layer. NAT: The NAT (Network Address Translation) feature allows multiple users to access the Internet through a single IP account, sharing the single IP address.
  • Page 42 TCP MSS Clamp: This option helps to discover the optimal MTU size automatically. Default is enabled. MAC Address Spoofing: This option is required by some service providers. You must fill in the MAC address that specify by service provider when it is required. Default is disabled. RFC 1483 Bridged Connections Description: User-definable name for the connection.
  • Page 43 VoIP/(802.11g) ADSL2+ Router PPPoA Routed Connections Description: User-definable name for the connection. VPI/VCI: Enter the information provided by your ISP. ATM Class: The Quality of Service for ATM layer. NAT: The NAT (Network Address Translation) feature allows multiple users to access the Internet through a single IP account, sharing a single IP address.
  • Page 44 Connect to Demand: If you want to establish a PPPoA session only when there is a packet requesting access to the Internet (i.e. when a program on your computer attempts to access the Internet). Idle Timeout: Auto-disconnect the broadband firewall gateway when there is no activity on the line for a predetermined period of time.
  • Page 45 VoIP/(802.11g) ADSL2+ Router IPoA Routed Connections Description: User-definable name for the connection. VPI/VCI: Enter the information provided by your ISP. ATM Class: The Quality of Service for ATM layer. NAT: The NAT (Network Address Translation) feature allows multiple users to access the Internet through a single IP account, sharing a single IP address.
  • Page 46 VoIP/(802.11g) ADSL2+ Router PPPoE Connections Description: A user-definable name for this connection. VPI/VCI: Enter the information provided by your ISP. ATM Class: The Quality of Service for ATM layer. NAT: The NAT (Network Address Translation) feature allows multiple users to access the Internet through a single ISP account, sharing a single IP address.
  • Page 47 Connection: Always on: If you want the router to establish a PPPoE session when starting up and to automatically re-establish the PPPoE session when disconnected by the ISP. Connect to Demand: If you want to establish a PPPoE session only when there is a packet requesting access to the Internet (i.e.
  • Page 48 VoIP/(802.11g) ADSL2+ Router PPPoE with Pass-through Connections PPPoE with pass-through adapts the following method: PPPoE Routed mode + 1483 Bridge Mode. With pure PPPoE connection, the router can get one WAN address to the router. With the PPPoE and PPPoE pass-through, concurrently, it allows user to have a WAN address assigned to the router but also able to get another WAN IP from ISP using PPPoE dialer (e.g WinPoETor Windows XP PPPoE Dialer) at the same time.
  • Page 49 DHCP client function or click Specify an IP address to disable the DHCP client function, and specify the IP address manually. The setting of this item is specified by your ISP. Authentication Protocol: Default is Chap(Auto). Your ISP will advise you whether to use Chap or Pap. Connection: Always on: If you want the router to establish a PPPoE session when starting up and to automatically re-establish the PPPoE session when disconnected by the ISP.

  • Page 50: Dns

    VoIP/(802.11g) ADSL2+ Router A Domain Name System (DNS) contains a mapping table for domain name and IP addresses. On the Internet, every host has a unique and user-friendly name (domain name) such as www.helloworld.com and an IP address. An IP address is a 32-bit number in the form of xxx.xxx.xxx.xxx, for example 192.168.1.254.

  • Page 51: Adsl

    VoIP/(802.11g) ADSL2+ Router ADSL Connect Mode: This mode will automatically detect your ADSL line code, ADSL2+, ADSL2, G.dmt, G.lite, T1.413, AnnexM2 and AnnexM2+. But in some area, multimode cannot detect the ADSL line code well. If it is the case, please adjust the ADSL line code to G.dmt or T1.413 first. If it still fails, please try the other values such as ALCTL, ADI, etc.
  • Page 52 Downstream: Display current downstream rate of your ADSL line. Advanced Options ADSL Parameters help to interpret your ADSL line statistics. SNR Margin: It is known as Signal to Noise Ration Margin. It is the relative of DSL strength to Noise ratio.
  • Page 53 BIS+/BIS/GDMT: ADSL connection will be limited to ADSL2+, ADSL2 and ADS1 (G.DMT/G.Lite) only. DISABLE: This disable function will disconnect your ADSL synch. Select it with cautious. S=1/2 Mode: It is ADSL1 protocols which can increase the downstream speed up to 12Mpb. Please check further with your ISP about this option is being enabled or not.

  • Page 54: System

    VoIP/(802.11g) ADSL2+ Router System There are six items within the System section: Time Zone, Remote Access, Firmware Upgrade, Backup/Restore, Restart User Management. Time Zone The router does not have a real time clock on board; instead, it uses the Simple Network Time Protocol (SNTP) to get the current time from an SNTP server outside your network.

  • Page 55: Remote Access

    VoIP/(802.11g) ADSL2+ Router Remote Access To temporarily permit remote administration of the router (i.e. from outside your LAN), select a time period the router will permit remote access for and click Enable. You may change other configuration options for the web administration interface using Device Management options in the Advanced section of the GUI.

  • Page 56: Firmware Upgrade

    VoIP/(802.11g) ADSL2+ Router Firmware Upgrade Your router’s “firmware” is the software that allows it to operate and provides all its functionality. Think of your router as a dedicated computer, and the firmware as the software it runs. Over time this software may be improved and modified, and your router allows you to upgrade the software it runs to take advantage of these changes.

  • Page 57: Backup / Restore

    VoIP/(802.11g) ADSL2+ Router Backup / Restore These functions allow you to save and backup your router’s current settings to a file on your PC, or to restore a previously saved backup. This is useful if you wish to experiment with different settings, knowing that you have a backup handy in the case of any mistakes.

  • Page 58: Restart Router

    VoIP/(802.11g) ADSL2+ Router Restart Router Click Restart with option Current Settings to reboot your router (and restore your last saved configuration). If you wish to restart the router using the factory default settings (for example, after a firmware upgrade or if you have saved an incorrect configuration), select Factory Default Settings to reset to factory default settings.

  • Page 59: User Management

    VoIP/(802.11g) ADSL2+ Router User Management In order to prevent unauthorized access to your router’s configuration interface, it requires all users to login with a password. You can set up multiple user accounts, each with their own password. You are able to Edit existing users and Create new users who are able to access the device’s configuration interface.

  • Page 60: Firewall And Access Control

    Firewall and Access Control Your router includes a full SPI (Stateful Packet Inspection) firewall for controlling Internet access from your LAN, as well as helping to prevent attacks from hackers. In addition to this, when using NAT (Network Address Translation. Please see the WAN configuration section for more details on NAT) the router acts as a “natural”...

  • Page 61: General Settings

    You can find six items under the Firewall section: URL Filter, IM/P2P Blocking General Settings You can choose not to enable Firewall and still able to access to URL Filter and IM/P2P Blocking or enable the Firewall using preset filter rules and modify the port filter rules as required. The Packet Filter is used to filter packets based-on Applications (Port) or IP addresses.

  • Page 62: Packet Filter

    VoIP/(802.11g) ADSL2+ Router Packet Filter This function is only available when the Firewall is enabled and one of these four security levels is chosen (All blocked, High, Medium and Low). The predefined port filter rules in the Packet Filter must modify accordingly to the level of Firewall, which is selected.
  • Page 63 Example: Predefined Port Filters Rules The predefined port filter rules for High, Medium and Low security levels are listed. See Table 1. Note: Firewall – All Blocked/User-defined, you must define and create the port filter rules yourself. No predefined rule is being pre-configured. Port Number Application...
  • Page 64 MSN (7001) UDP(17) 7001 7001 YES VEDIO TCP(6) 9000 9000 NO (9000) Inbound: Internet to LAN; Outbound: LAN to Internet. YES: Allowed; NO: Blocked; N/A: Not Applicable Chapter 4: Configuration VoIP/(802.11g) ADSL2+ Router...
  • Page 65 VoIP/(802.11g) ADSL2+ Router Packet Filter – Add TCP/UDP Filter Rule Name: Users-define description to identify this entry or click to select existing predefined rules. The maximum name length is 32 characters. Time Schedule: It is self-defined time period. You may specify a time schedule for your prioritization policy.
  • Page 66 VoIP/(802.11g) ADSL2+ Router Packet Filter – Add Raw IP Filter Rule Name: Users-define description to identify this entry or click to select existing predefined rules. Time Schedule: It is self-defined time period. You may specify a time schedule for your prioritization policy.
  • Page 67 VoIP/(802.11g) ADSL2+ Router Example: Configuring your firewall to allow for a publicly accessible web server on your LAN The predefined port filter rule for HTTP (TCP port 80) is the same no matter whether the firewall is set to a high, medium or low security level. To setup a web server located on the local network when the firewall is enabled, you have to configure the Port Filters setting for HTTP.
  • Page 68 Configuring Packet Filter: 1. Click Port Filters. You will then be presented with the predefined port filter rules screen (in this case for the low security level), shown below: Note: You may click Edit the predefined rule instead of Delete it. This is an example to show to how you add a filter on your own.
  • Page 69 The new port filter rule for HTTP is shown below: Configure your Virtual Server (“port forwarding”) settings so that incoming HTTP requests on port 80 will be forwarded to the PC running your web server: Note: For how to configure the HTTP in Virtual Server, go to Add Virtual Server in Virtual Server section for more details.

  • Page 70: Intrusion Detection

    Intrusion Detection The router’s Intrusion Detection System (IDS) is used to detect hacker attacks and intrusion attempts from the Internet. If the IDS function of the firewall is enabled, inbound packets are filtered and blocked depending on whether they are detected as possible hacker attacks, intrusion attempts or other connections that the router determines to be suspicious.
  • Page 71 Table 2: Hacker attack types recognized by the IDS Intrusion Name Detect Parameter Ascend Kill data Ascend Kill Port 135, 137~139, WinNuke Flag: URG ICMP type 8 Smurf Des IP is broadcast SrcIP = DstIP Land attack UDP Echo Port and Echo/CharGen Scan CharGen Port UDP Dst Port =...

  • Page 72: Url Filter

    URL Filter URL (Uniform Resource Locator – e.g. an address in the form of http://www.example.com) filter rules allow you to prevent users on your network from accessing particular websites by their URL. There are no pre-defined URL filter rules; you can add filter rules to meet your requirements.
  • Page 73 If not, check if it is listed in the forbidden list. If yes, then the connection attempt will be dropped. If the packet does not match either of the above two items, it is sent to the remote web server. Please be note that the completed URL, “www”...

  • Page 74: Im / P2P Blocking

    Internet. Both Instant Message and Peer-to-peer applications make communication faster and easier but your network can become increasingly insecure at the same time. Billion’s IM and P2P blocking helps users to restrict LAN PCs to access to the commonly used IM, Yahoo and MSN, and P2P, BitTorrent and eDonkey, applications over the Internet.

  • Page 75: Firewall Log

    VoIP/(802.11g) ADSL2+ Router Firewall Log Firewall Log display log information of any unexpected action with your firewall settings. Check the Enable box to activate the logs. Log information can be seen in the Status – Event Log after enabling. Chapter 4: Configuration...

  • Page 76: Voip (Voice Over Internet Protocol)

    VoIP (Voice over Internet Protocol) VoIP enables telephone calls through existing Internet connection instead of going through the PSTN (Public Switched Telephone Network). telephone charges, but also toll-quality voice calls over the Internet. After completing VoIP configuration, remember to apply the changes, SAVE CONFIG and restart to activate your VoIP.

  • Page 77: Wizard

    VoIP/(802.11g) ADSL2+ Router Wizard This section provides easy setup for your VoIP service. Voice QoS DSCP Marking: Differentiated Services Code Point (DSCP), it is the first 6 bits in the ToS byte. DSCP Marking allows users to assign specific application traffic to be executed in priority by the next Router based on the DSCP value.

  • Page 78: General Settings

    VoIP/(802.11g) ADSL2+ Router General Settings This section reflects and contains basic settings for the VoIP module from selected provider in the Wizard section. Fail to provide correct information will halt making calls out to the Internet. SIP Device Parameters SIP: To use SIP as VoIP call signaling protocol. Default is set to Disable. Silence Suppression (VAD): Voice Activation Detection prevents transmitting the nature silence to consume the bandwidth.
  • Page 79 Setting for Phone Port 1 Registrar Address(or Hostname): Indicate the SIP registrar IP address. Registrar Port: Specify the port of the SIP registrar on which it will listen for register requests from VoIP device. Expire: Expire time for the registration message sending. User Domain/Realm: Set different domain name for the SIP proxy server.
  • Page 80 VoIP/(802.11g) ADSL2+ Router Click the Edit to add or remove the responses code. To be sure the code is separated by a comma(,). For more information about SIP responses codes, please check to link to http://voip- info.org/wiki/view/sip+response+codes where you can get to know the meaning of each error code. Advanced –...

  • Page 81: Phone Ports

    VoIP/(802.11g) ADSL2+ Router Phone Ports This section displays status and allows you to edit the account information of your Phones. Click Edit to update your phone information. Login Account Configuration Phone Number: This parameter holds the registration ID of the user within the VoIP SIP registrar. Authentication Username: Same as Phone Number.
  • Page 82 VoIP/(802.11g) ADSL2+ Router Codec Preference Codec is known as Coder-Decoder used for data signal conversion. Set the priority of voice compression; Priority 1 owns the top priority. G.729: It is used to encoder and decoder voice information into a single packet which reduces the bandwidth consumption.

  • Page 83: Pstn Dial Plan

    PSTN Dial Plan This section enables you to configure “VoIP with PSTN switching” on your system. You can define a range of dial plans to make regular call from VoIP switching to PSTN line. Prefix numbers is essential key to make a distinguishing between VoIP and Regular phone call. If actual numbers dialed matches with prefix number defined in this dial plan, the dialed number will be routed to the PSTN to make a regular call.
  • Page 84 Phone port will automatically rely to PSTN line when: - Power Down - Internet Service Fail, i.e., lost of WAN IP Address - SIP option is disabled. See VoIP General Setting section. - Calls match with rule(s) defined in the PSTN Digit Plan. - SIP service is not accessible.
  • Page 85 VoIP/(802.11g) ADSL2+ Router 3) Dial at Timeout If you only dial 01223 7070 and no more numbers, after the timeout activates, 012237070 will be dialed to make a regular call via FXO port. Even though 7070 (only 4 digits) does not match with number of digits 6 defined in the filed, 7070 is still a valid phone number since it has not exceeded 6 digits.

  • Page 86: Voip Dial Plan

    VoIP/(802.11g) ADSL2+ Router VoIP Dial Plan This section helps you to make a telephony number dialed as making a regular call via VoIP. You no longer need to memorize a long dial string of number for making a VoIP call. Parameters A listed of special dial feature comes handy when you have a miss call or need to transfer a call to a third party.
  • Page 87 VoIP/(802.11g) ADSL2+ Router Dial Plan Rules List Click Add to create and define VoIP dial-plan rule(s). Prefix Processing: Prepend xxx unconditionally: xxx number is appended unconditionally to the front of the dialing number when making a call. Prefix can also be included with any number and/or character such as +, *, Note: For special service with +, *, #, you may need to check with your VoIP or Local Telephone Service Provider for information.

  • Page 88: Ring & Tone

    Dial-Plan Examples: xxxx. 123x. [x…x]x. For example: [124]x. [x-x]x. For example: [1-3]x. x[x-x]x. For example: 9[4-6]8x. Special Dial Plan Examples: *xx*x. **xx*x. #xx. ##xx*x. Ring & Tone This section allows advanced user to change the existing or newly defined parameters for the various ring tones (dial tone, busy tone, answer tone and etc.) Country Specific Ring &...
  • Page 89 VoIP/(802.11g) ADSL2+ Router Ring Parameters Ring Cadence (in ms): Ring cadence is defined by three fields, Frequency: On Time1, Off Time1, On Time2, Off Time2 and On Time3, Off Time3. Frequency is specified in Hertz. Time is given in milliseconds. Tone Parameters You may need to check with your local telephone service provider for such information.

  • Page 90: Special Dial Codes

    Special Dial Codes The following table lists the special dial codes that are built-in to the system: Option Flash-hook (Wireless Router with LINE port only) *74<x><number># *90<phone-number> Appendix A: Product Support and Contact Information Description Switch to PSTN line Note: A quick press of the hook. On some phones a button is provided which provides Flash-hook functionality.

  • Page 91: Qos (Quality Of Service)

    QoS (Quality of Service) QoS function helps you to control your network traffic for each application from LAN (Ethernet and/or Wireless) to WAN (Internet). It facilitates you to control the different quality and speed of through put for each application when the system is running with full loading of upstream. Here are the items within the QoS section: (bandwidth management).

  • Page 92: Dscp Mapping Table

    Destination Port: The destination port of packets to be monitored. Source IP Address Range: The source IP address or range of packets to be monitored. Destination IP address Range: The destination IP address or range of packets to be monitored. DSCP Marking: Differentiated Services Code Point (DSCP), it is the first 6 bits in the ToS byte.

  • Page 93: Outbound Ip Throttling (Lan To Wan)

    VoIP/(802.11g) ADSL2+ Router Outbound IP Throttling (LAN to WAN) IP Throttling allows you to limit the speed of IP traffic. The value entered will limit the speed of the application that you set to the specified value’s multiple of 32kbps. You can click Clear to delete the existing Application.

  • Page 94: Inbound Ip Throttling (Wan To Lan)

    VoIP/(802.11g) ADSL2+ Router Inbound IP Throttling (WAN to LAN) IP Throttling allows you to limit the speed of IP traffic. The value entered will limit the speed of the application that you set to the specified value’s multiple of 32kbps. You can click Clear to delete the existing Application.
  • Page 95 Example: QoS for your Network Connection Diagram VoIP Normal PCs Restricted Information and Settings Upstream: 928 kbps Downstream: 8 Mbps VoIP User : 192.168.1.1 Normal Users : 192.168.1.2~192.168.1.5 Restricted User: 192.168.1.100 kbps VoIP/VPN HIGH Appendix A: Product Support and Contact Information Throughput Others Restricted...
  • Page 96 VoIP/(802.11g) ADSL2+ Router Mission-critical application Mostly the VPN connection is mission-critical application for doing data exchange between head and branch office. The mission-critical application must be sent out smoothly without any dropping. Set priority as high level for preventing any other applications to saturate the bandwidth. Voice application Voice is latency-sensitive application.
  • Page 97 VoIP/(802.11g) ADSL2+ Router Sometime your customers or friends may upload their files to your FTP server and that will saturate your downstream bandwidth. The settings below help you to limit bandwidth for the restricted application. Appendix A: Product Support and Contact Information...

  • Page 98: Virtual Server (Known As Port Forwarding)

    VoIP/(802.11g) ADSL2+ Router Virtual Server (known as Port Forwarding) In TCP/IP and UDP networks a port is a 16-bit number used to identify which application program (usually a server) incoming connections should be delivered to. Some ports have numbers that are pre- assigned to them by the IANA (the Internet Assigned Numbers Authority), and these are referred to as “well-known ports”.

  • Page 99: Add Virtual Server

    VoIP/(802.11g) ADSL2+ Router Add Virtual Server Because NAT can act as a “natural” Internet firewall, your router protects your network from being accessed by outside users when using NAT, as all incoming connection attempts will point to your router unless you specifically create Virtual Server entries to forward those ports to a PC on your network. When your router needs to allow outside users to access internal servers, e.g.

  • Page 100: Edit Dmz Host

    application. List all existing PCs connecting to the network. You may assign a PC with IP address and MAC from this list. Example: If you like to remote accessing your Router through the Web/HTTP at all time, you would need to enable port number 80 (Web/HTTP) and map to Router’s IP Address.

  • Page 101: Edit Dmz Host

    Edit DMZ Host The DMZ Host is a local computer exposed to the Internet. When setting a particular internal IP address as the DMZ Host, all incoming packets will be checked by the Firewall and NAT algorithms then passed to the DMZ host, when a packet received does not use a port number used by any other Virtual Server entries.

  • Page 102: Edit One-To-One Nat (Network Address Translation)

    VoIP/(802.11g) ADSL2+ Router Edit One-to-One NAT (Network Address Translation) One-to-One NAT maps a specific private/local IP address to a global/public IP address. If you have multiple public/WAN IP addresses from you ISP, you are eligible for One-to-One NAT to utilize these IP addresses. NAT Type: Select desired NAT type.
  • Page 103 VoIP/(802.11g) ADSL2+ Router Time Schedule: A self-defined time period to enable your virtual server. You may specify a time schedule or Always on for the usage of this Virtual Server Entry. For setup and detail, refer to Time Schedule section Application: Users-defined description to identify this entry or click to select existing predefined rules.
  • Page 104 TCP & UDP TCP & UDP 1503 1720 4000 7070 Appendix A: Product Support and Contact Information http://www.iana.org/assignments/port-numbers http://www.billion.com Description FTP Data FTP Control SSH Remote Login Protocol Telnet SMTP (Simple Mail Transfer Protocol) DNS (Domain Name Server) TFTP (Trivial File Transfer Protocol)

  • Page 105: Time Schedule

    VoIP/(802.11g) ADSL2+ Router Time Schedule The Time Schedule supports up to 16 time slots which helps you to manage your Internet connection. In each time profile, you may schedule specific day(s) i.e. Monday through Sunday to restrict or allowing the usage of the Internet by users or applications. This Time Schedule correlates closely with router’s time, since router does not have a real time clock on board;...

  • Page 106: Configuration Of Time Schedule

    VoIP/(802.11g) ADSL2+ Router Configuration of Time Schedule Edit a Time Slot 1. Choose any Time Slot (ID 1 to ID 16) to edit, click Edit. Click Edit Note: Watch it carefully, the days you have selected will present in capital letter. Lower case letter shows the day(s) is not selected, and no rule will apply on this day(s).

  • Page 107: Advanced

    VoIP/(802.11g) ADSL2+ Router Advanced Configuration options within the Advanced section are for users who wish to take advantage of the more advanced features of the router. Users who do not understand the features should not attempt to reconfigure their router, unless advised to do so by support staff. There are four items within the Advanced section: Static Route, Dynamic DNS, Check Email, Device Management, IGMP...

  • Page 108: Dynamic Dns

    VoIP/(802.11g) ADSL2+ Router Dynamic DNS The Dynamic DNS function allows you to alias a dynamic IP address to a static hostname, allowing users whose ISP does not assign them a static IP address to use a domain name. This is especially useful for hosting servers via your ADSL connection, so that anyone wishing to connect to you may use your domain name, rather than having to use your dynamic IP address, which changes from time to time.

  • Page 109: Check Email

    VoIP/(802.11g) ADSL2+ Router Check Email This function allows you to have the router check your POP3 mailbox for new Email messages. The Mail LED on your router will light when it detects new messages waiting for download. You may also view the status of this function using the Status –...

  • Page 110: Device Management

    VoIP/(802.11g) ADSL2+ Router Device Management The Device Management advanced configuration settings allow you to control your router’s security options and device monitoring features. Embedded Web Server ( 2 Management IP Accounts) HTTP Port: This is the port number the router’s embedded web server (for web-based configuration) will use.
  • Page 111 User A changes HTTP port number to 100, specifies their own IP address of 192.168.1.55, For Example: and sets the logout time to be 100 seconds. The router will only allow User A access from the IP address 192.168.1.55 to logon to the Web GUI by typing: After 100 seconds, the device will automatically logout User A.
  • Page 112 SNMP Version: SNMPv2c and SNMPv3 SNMPv2c is the combination of the enhanced protocol features of SNMPv2 without the SNMPv2 security. The "c" comes from the fact that SNMPv2c uses the SNMPv1 community string paradigm for "security", but is widely accepted as the SNMPv2 standard. SNMPv3 is a strong authentication mechanism, authorization with fine granularity for remote monitoring.
  • Page 113 From RFC 1472 (PPP/Security MIB): PPP Security Group) From RFC 1473 (PPP/IP MIB): PPP IP Group From RFC 1474 (PPP/Bridge MIB): PPP Bridge Group From RFC1573 (IfMIB): ifMIBObjects Group From RFC1695 (atmMIB): atmMIBObjects From RFC 1907 (SNMPv2): only snmpSetSerialNo OID Chapter 4: Configuration VoIP/(802.11g) ADSL2+ Router...

  • Page 114: Igmp

    IGMP IGMP, known as Internet Group Management Protocol, is used to management hosts from multicast group. IGMP Forwarding: Accepting multicast packet. Default is set to Enable. IGMP Snooping: Allowing switched Ethernet to check and make correct forwarding decisions. Default is set to Disable. VLAN Bridge This section allows you to create VLAN group and specify the member.
  • Page 115 Note: You should setup each VLAN group with caution. Each Bridge Interface is arranged in this order. Bridge Interface Ethernet Ethernet1 Ethernet2 Ethernet3 Step 2: Create WAN Interface Go to Configuration wanlink is the factory default WAN interface which in service for data/internet access. If your ISP uses this access protocol, click Edit to input other parameters if needed.
  • Page 116 Spaces next to VPI and VCI, type 0 and 33 in respectively. Select appropriate ATM Class, Encapsulation Method, Acceptable Frame Type, Filter Type and PVID for Untagged Frames. VPI and VCI: Enter the information provided by your ISP. ATM Class: The Quality of Service for ATM layer. Encapsulation method: Select the encapsulation format, this is provided by your ISP.
  • Page 117 VoIP/(802.11g) ADSL2+ Router Step 3: Setup VLAN Service Go to Configuration Advanced VLAN Bridge DefaultVlan lists all member ports. It is necessary to group specific member ports for each VLAN. From the example, two VLAN groups are requested: Data and Video. To create another VLAN group for Video by clicking Create VLAN.
  • Page 118 VoIP/(802.11g) ADSL2+ Router Mapping the VLAN Bridge with Bridge Interface created in Step1, you will see the conformable relationship in these two screenshots. Step 4: IGMP Snooping Enable Go Configuration Advanced IGMP. IGMP Snooping must be enabled in order to allow video stream forwarding correctly. Chapter 4: Configuration...

  • Page 119: Save Configuration To Flash

    VoIP/(802.11g) ADSL2+ Router Save Configuration to Flash After changing the router’s configuration settings, you must save all of the configuration parameters to FLASH to avoid them being lost after turning off or resetting your router. Click Save to write your new configuration to FLASH.

  • Page 120: Chapter 5: Troubleshooting

    If the router is not functioning properly, first check this chapter for simple troubleshooting before contacting your service provider or Billion support. Problems starting up the router Problem Corrective Action Check the connection between the adapter and the router. If the error None of the LEDs are persists, you may have a hardware problem.

  • Page 121: Appendix A: Product Support And Contact Information

    Contact Billion AUSTRALIA http://www.billion.com.au/ ©2006 Billion Electric Co., Ltd. PC Range P/L. All Rights Reserved. WORLDWIDE http://www.billion.com/ Mac OS is a registered Trademark of Apple Computer, Inc. Windows 98, Windows NT, Windows 2000, Windows Me and Windows XP are registered Trademarks of Microsoft Corporation...
