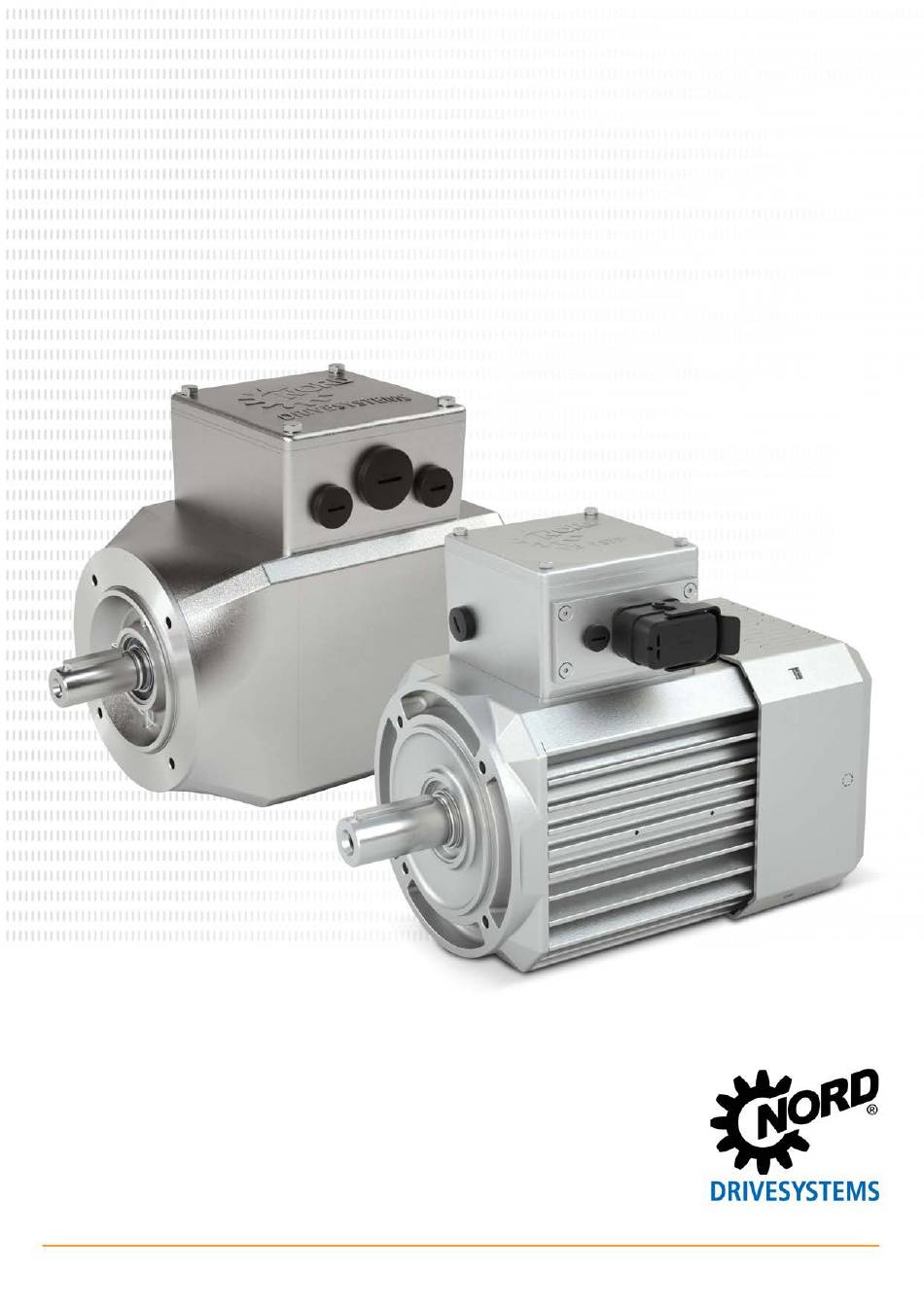

- Page 1 B 5000 – en Synchronous motors (PMSM) Manual with installation instructions...
- Page 2 Synchronous motors (PMSM) – Manual with installation instructions Read this manual This manual contains the installation manual and other information for safe motor use. Read this manual carefully prior to performing any work on or operating the motor. Always observe the instructions in this manual.
-
Page 3: Table 1: Version List B 5000
Documentation Documentation Title: B 5000 Order number: 6055002 Series: Three-phase synchronous motors SK 56… to SK 132… Version list Title, Order number Remarks Date B 5000, 6055002 / 2621 June 2021 Table 1: Version list B 5000 B 5000 en-2621... - Page 4 Synchronous motors (PMSM) – Manual with installation instructions Copyright notice As an integral component of the device described here, this document must be provided to all users in a suitable form. Any editing or amendment or other utilisation of the document is prohibited.
- Page 5 Publisher B 5000 en-2621...
-
Page 6: Table Of Contents
Synchronous motors (PMSM) – Manual with installation instructions Table of Contents Safety information ............................. 10 Intended use ............................ 10 Do not make any modifications......................10 Only use in perfect condition ......................10 Performing inspection and maintenance work ................. 10 Personnel qualification ........................ - Page 7 Table of Contents Check the motor ..........................30 Check the brake (option: BRE) ......................30 Checklist ............................31 Service and maintenance ......................... 32 Service and maintenance intervals ....................32 Bearing replacement periods ......................32 Service and maintenance work ......................33 5.3.1 Check for running noises ....................
- Page 8 Synchronous motors (PMSM) – Manual with installation instructions List of illustrations Figure 1: Explanation of type designation using an SK 80T1/4 as example ............15 Figure 2: Name plate ............................. 17 Figure 3: Permissible impulse voltages depending on the voltage rise time ............20 Figure 4: Power connections ..........................
- Page 9 List of tables List of tables Table 1: Version list B 5000 ............................. 3 Table 2: Drive type and type designations ......................15 Table 3: Options for IE5 motors (SK ..N…, SK ..F…) .................... 15 Table 4: Options for IE4 motors (SK ..T…) ......................16 Table 5: Permissible axial forces F and radial forces F ..................
-
Page 10: Safety Information
Synchronous motors (PMSM) – Manual with installation instructions 1 Safety information 1.1 Intended use The motor is used to generate a rotational movement. It is intended for use as a drive system in commercially used plant and machinery. The motor is exclusively intended for operation with frequency inverters. -
Page 11: Personnel Qualification
1 Safety information 1.5 Personnel qualification All transport, storage, installation, commissioning and maintenance work must be carried out by qualified specialist personnel. Qualified specialist personnel are persons who have the training and experience to recognise and avoid any possible risks. 1.6 Safety for particular activities 1.6.1 Check for transport damage Transport damage may cause malfunctions of the drive, which may cause personal injury. -
Page 12: Hazards
Synchronous motors (PMSM) – Manual with installation instructions 1.7 Hazards 1.7.1 Hazards due to electric shock An electric shock when touching live components may lead to severe injuries or death. • Before switching on the voltage supply, ensure that all associated covers are closed and all associated protective devices are installed and functional. -
Page 13: Hazards Due To Unexpected Movement Of Driven Machinery
1 Safety information 1.7.3 Hazards due to unexpected movement of driven machinery The motor shaft may start moving under certain conditions, e.g. when the supply voltage is switched on or a holding brake is released. This way, the machinery driven by the drive can start to move unexpectedly. -
Page 14: Explanation Of Markings
Synchronous motors (PMSM) – Manual with installation instructions 1.8 Explanation of markings DANGER Indicates an immediate danger, which may result in death or very serious injury if it is not avoided. WARNING Indicates a dangerous situation, which may result in death or very serious injury if it is not avoided. -
Page 15: Description Of The Drive
2 Description of the drive 2 Description of the drive 2.1 Drive type and type designations 2.1.1 Type designations Drive type and type designations Three-phase synchronous motors SK 56... to SK 132... Table 2: Drive type and type designations Options Number of poles: /4, /6, /8, /10 Package length: 1 …... -
Page 16: Table 4: Options For Ie4 Motors (Sk
Synchronous motors (PMSM) – Manual with installation instructions Abbreviation Description Absolute encoder BRE + Brake/brake torque + suboption Rust-protected version Dust- and rust-protected version Lockable manual release Manual brake release Microswitch One-piece terminal box External earthing terminal External fan Humidity protection insulation... -
Page 17: Name Plate
2 Description of the drive 2.2 Name plate Figure 2: Name plate Approvals Speed Matrix barcode Efficiency in % NORD type designation IE class Year of manufacture System voltage Number of phases VPWM: Modulation procedure of frequency inverter Order number/motor number CT: Constant torque Serial number Service factor... -
Page 18: Description
Synchronous motors (PMSM) – Manual with installation instructions 2.3 Description 2.3.1 Rotary encoders (option: IG, MG) Rotary encoder with zero track (option: IG) Depending on the application and customer requirements, a variety of rotary encoders are used. If possible, these encoders are adjusted by NORD. If this is not possible, an offset is determined and stated on a sticker inside the terminal box. -
Page 19: Requirements For The Use Of The Drive
2 Description of the drive 2.4 Requirements for the use of the drive 2.4.1 Ambient conditions The motor must be protected against intensive sunlight, e.g. by the use of a protective cover. The insulation is tropicalised. Installation altitude: maximum 1000 m Ambient temperature: -20°C to +40°C For standard motors (without options), an extended ambient temperature range from -20°C to +60°C is permissible. -
Page 20: Frequency Inverters And Encoders
Synchronous motors (PMSM) – Manual with installation instructions 2.4.4 Frequency inverters and encoders The motors must only be operated with suitable frequency inverters. For energy-efficient operation, the frequency inverter must detect the position of the rotor. For this, different options with and without an encoder are possible, see also TI60_0010. -
Page 21: Motor To Frequency Inverter Assignment
2 Description of the drive 2.4.5 Motor to frequency inverter assignment The following assignments of the motors to the suitable frequency inverters apply to nominal operation. Deviating operating conditions require planning and, if necessary, an adjustment of the inverter assignment. Motor data -370-340 71N1/8... -
Page 22: Interference Emission And Resistance To Interference
Synchronous motors (PMSM) – Manual with installation instructions 2.4.6 Interference emission and resistance to interference NORD motors comply with the EU Directive 2014/30/EU. Assembly or installation work must not cause impermissible interference emissions. Resistance to interference must still be given. -
Page 23: Transport, Storage, Assembly
3 Transport, storage, assembly 3 Transport, storage, assembly 3.1 Transporting the drive WARNING Hazard due to falling loads • The thread of the eye bolt must be fully screwed in. • Do not pull on the eye bolt at an angle. •... -
Page 24: Storage
Synchronous motors (PMSM) – Manual with installation instructions 3.2 Storage Under favourable conditions, the drive can be stored for several years. • If necessary, treat the unprotected, finished surfaces (e.g. flange surface, shaft end) with corrosion protection agents. • Store the drive in a dry, dust-free space. -
Page 25: Installation
3 Transport, storage, assembly 3.4 Installation Either tighten the eye bolts used for transport or remove them completely. Protect the motor, rotating shafts and unused shaft ends against contact. Secure unused shaft keys against being thrown out or remove them. The top section of the terminal box can be rotated by 4 x 90 degrees. -
Page 26: Subsequent Painting
Synchronous motors (PMSM) – Manual with installation instructions On IEC B14 motors, all four fastening screws must be screwed into the flanged bearing plate even if they are not required. The maximum insertion depth of 2 x d must not be exceeded. The fastening screw threads must be inserted with a sealant, e.g. -
Page 27: Electrical Connection
3 Transport, storage, assembly 3.7 Electrical connection WARNING Electric shock Touching live components causes an electric shock. This may result in severe injuries or death. • Installation of the drive may only be carried out by qualified personnel (qualified electricians). •... -
Page 28: Auxiliary Terminals
Synchronous motors (PMSM) – Manual with installation instructions 3.7.2 Auxiliary terminals Please refer to the following table for the designations of the auxiliary terminals. Auxiliary terminal designation Additional equipment Labelling of auxiliary terminals Comment New: EN 60034-8 Thermistor TP1 – TP2 Switch-off 1TP1 –... -
Page 29: Sealing The Terminal Box
3 Transport, storage, assembly 4. Tighten the nuts of the terminal board bolts according to the following table. Tightening torques for terminal board connections Thread diameter Tightening torque (Nm) Table 10: Tightening torques for terminal board connections 5. Tighten the cable gland's lock nuts with a torque according to the following table. Tightening torques for lock nut Cable gland M20x1.5... -
Page 30: Commissioning
Synchronous motors (PMSM) – Manual with installation instructions 4 Commissioning 4.1 Check encoder Check the alignment of the rotary encoder. If the rotary encoder is not aligned, or has come out of adjustment due to an impact or removal of the motor, the zero track of the encoder must again be adjusted to the rotor position. -
Page 31: Checklist
4 Commissioning 4.5 Checklist Checklist Subject of check Date Information of check: see Section Is the vent screw activated or the pressure vent screwed in? Does the required orientation comply with the actual installation position? Are rotating parts covered with a contact guard? Is the rotary encoder aligned? 2.3.1, 4.1 Is the insulation resistance sufficiently high? -
Page 32: Service And Maintenance
Synchronous motors (PMSM) – Manual with installation instructions 5 Service and maintenance 5.1 Service and maintenance intervals The service and maintenance intervals highly depend on the ambient and operating conditions. They must therefore be individually adapted for the driven machine during project planning. -
Page 33: Service And Maintenance Work
5 Service and maintenance 5.3 Service and maintenance work 5.3.1 Check for running noises If the motor produces unusual running noises or vibrations, this could indicate damage to the motor. In this case, the motor must be repaired immediately. Please contact the NORD Service department. 5.3.2 Visual inspection Check the drive thoroughly considering valid standards and regulations. -
Page 34: Disposal
Synchronous motors (PMSM) – Manual with installation instructions 6 Disposal The motor contains aluminium, iron, electronic components, plastic, copper and magnets. Dispose the materials properly and observe the applicable regulations. B 5000 en-2621... -
Page 35: Appendix
7 Appendix 7 Appendix 7.1 Troubleshooting NOTICE Damage to the drive • Shut down the drive immediately in case of malfunction. Motor fault Fault Possible cause Remedy Unusual running noises, Defective bearing or warped motor Consult NORD Service department vibrations shaft To high loads Consult NORD Service department... -
Page 36: Spare Parts
Synchronous motors (PMSM) – Manual with installation instructions 7.2 Spare parts Please note our spare parts catalogue PL 5000 under www.nord.com. We will be pleased to send you the spare parts catalogue on request. 7.3 Repair information For enquiries to our technical and mechanical service department, please have the exact drive type and, if applicable, the order number to hand. - Page 37 7 Appendix B 5000 en-2621...
- Page 38 Synchronous motors (PMSM) – Manual with installation instructions Key word index Check for running noises ......33 Marking ............14 Address............36 Ambient conditions ........19 Auxiliary terminals ......... 28 Name plate ............ 17 Axial forces ............ 19 nsd tupH ............24 Brake .............
- Page 39 Key word index B 5000 en-2621...
