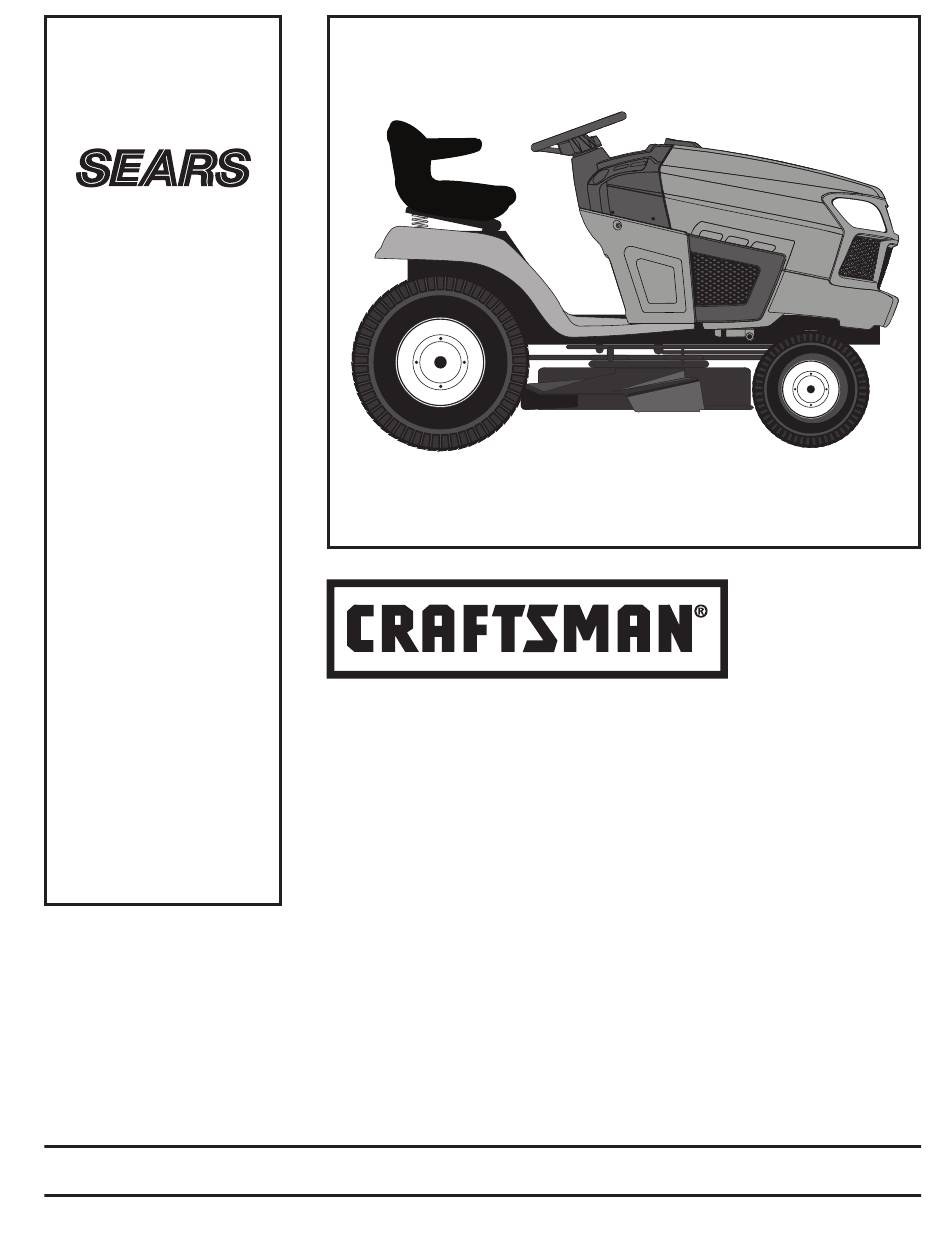

REPAIR
PARTS
MANUAL
MODEL NO.
944.604350
IMPORTANT:
Read and fol low
all Safety Rules
and In struc tions
Be fore Op er at ing
This Equip ment
* The power rating as declared by the engine manufacturer is the average gross power output at the specified RPM of a typical production engine for the engine model mea-
sured using SAE Standards for engine gross power. Please refer to the engine manufacturer for details.
587756024 Rev. 14
23.0 HP
ELECTRIC START
54" MOWER
AUTOMATIC TRANSMISSION
LAWN TRACTOR
Sears Canada, Inc., Toronto, Ontario M5B 2B8
*
10.06.17 JSE
Printed in the U.S.A.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sears 944.604350
Summary of Contents for Sears 944.604350
- Page 1 * The power rating as declared by the engine manufacturer is the average gross power output at the specified RPM of a typical production engine for the engine model mea- sured using SAE Standards for engine gross power. Please refer to the engine manufacturer for details. Sears Canada, Inc., Toronto, Ontario M5B 2B8 10.06.17 JSE 587756024 Rev.
- Page 2 The model number for your tractor can be found on the fender under the seat. When ordering parts, always give the following information: • Product - “Tractor” • MODEL NUMBER - “944.604350” • Part Number • Part Description TABLE OF CONTENTS SCHEMATIC ........................
- Page 3 TRACTOR - - MODEL NUMBER 944.604350 SCHEMATIC SCH12 BATTERY SOLENOID STARTER FUSE AMMETER BLACK (OPTIONAL) ELECTRIC CLUTCH WHITE PTO SWITCH BLACK WHITE (DISENGAGED) WHITE BLACK GRAY CLUTCH/BRAKE (PEDAL UP) REVERSE SWITCH (NOT IN REVERSE) BLACK BLACK BLACK BLACK SEAT SWITCH...
- Page 4 TRACTOR - - MODEL NUMBER 944.604350 ELECTRICAL T11S 12V Outlet (If Equipped) Charge Indicator (If Equipped) Service Minder(If Equipped)
- Page 5 TRACTOR - - MODEL NUMBER 944.604350 ELECTRICAL PART DESCRIPTION 163465 Battery 74760412 Bolt Hex Hd. 1/4-20 unc x 3/4 587205101 Box Battery 176138 Switch Interlock Push-In 400252 Harness Socket Light w/4152J 4152J Bulb Light 585555601 Cable Battery 585555501 Cable Starter...
- Page 6 TRACTOR - - MODEL NUMBER 944.604350 CHASSIS chassis-tex_TALON II_13...
- Page 7 TRACTOR - - MODEL NUMBER 944.604350 CHASSIS PART DESCRIPTION 580485806 Dash 580354407 Hood 580485601 Lens LH 580485302 Grille 580484501 Lens RH 580910801 Plate engine 19111116 Washer 11/32 x 11/16 x 16 Ga. 17060512 Screw 5/16-18 x 3/4 414878X428 Fender 73680500...
- Page 8 TRACTOR - - MODEL NUMBER 944.604350 DRIVE drive-tex_K57R_pedal_11...
- Page 9 TRACTOR - - MODEL NUMBER 944.604350 DRIVE PART PART DESCRIPTION DESCRIPTION – – – – Transaxle, TUFFTORQ K57R 72110622 Bolt 3/8-16 x 2-3/4 Gr. 5 (437814) (See Transaxle 194321 Spacer Retainer Breakdown.) 19133210 Washer 123583X 582217001 Link Clutch Ground Drive, Long 19131316 Washer 13/32 x 13/16 x 16 Ga.
- Page 10 TRACTOR - - MODEL NUMBER 944.604350 ENGINE SPARK ARRESTER KIT engine-tex_bs-2cyl_118_r1...
- Page 11 TRACTOR - - MODEL NUMBER 944.604350 ENGINE PART DESCRIPTION – – – – Engine B&S Model No. 44S777-0013-G1 (586640401) (See engine breakdown.) 149723 Muffler 584908001 Keeper Belt Engine 587241601 Clutch Electric 405097 Pulley Engine 532438025 Tank Fuel 430214 Cap Asm. Fuel...
- Page 12 TRACTOR - - MODEL NUMBER 944.604350 STEERING ASSEMBLY steering-tex_TTR_75...
- Page 13 TRACTOR - - MODEL NUMBER 944.604350 STEERING ASSEMBLY PART DESCRIPTION 414851X428 Wheel, Steering 436870 Axle Asm., Front 436873 Spindle Asm., LH 436874 Spindle Asm., RH 6266H Bearing, Race Thrust Harden 121748X Washer 25/32 x 1-5/8 x 16 Ga. 12000029 Ring, Clip #T5304-75...
- Page 14 TRACTOR - - MODEL NUMBER 944.604350 MOWER DECK 54_mulch_plate_1 mower_deck 54-tex_40...
- Page 15 TRACTOR - - MODEL NUMBER 944.604350 MOWER DECK PART PART DESCRIPTION DESCRIPTION 195632X613 Deck Weldment Mower 187298 Cover Mulch 196066 Cover Mandrel LH 71081010 Screw Pan 197181 Cover Mandrel RH 19061216 Washer #10 187256 Blade Mulching 10071000 Washer Lock #10...
- Page 16 TRACTOR - - MODEL NUMBER 944.604350 MOWER LIFT lift-tex_55 PART PART DESCRIPTION DESCRIPTION 422027 Shaft Asm., Lift 403407 Link Lift Susp. Mower Rear 426896 Lever Asm., Lift RH 17000612 Screw 3/8-16 x .75 R.Z 445060X428 Grip, Lever 195264 Link Lift Susp. Front Mower...
- Page 17 TRACTOR - - MODEL NUMBER 944.604350 SEAT ASSEMBLY seat-tex_6.5SL_16 PART PART DESCRIPTION DESCRIPTION 586507702 Seat 197661 Handle Slide Seat 180166 Bracket Pivot Fender 198200 Spring Latch Seat 73800600 Nut, Lock w/Ins. 3/8-16 unc 74760612 Bolt 3/8-16 x 3/4 589483501 Spring, Seat Cprsn.
- Page 18 TRACTOR - - MODEL NUMBER 944.604350 DECALS KEY PART KEY PART NO. NO. DESCRIPTION NO. NO. DESCRIPTION 585767601 Decal, Hood 581894601 Decal, Steering Wheel 586393801 Decal, Sideskirt RH 586393802 Decal, Sideskirt LH 441122 Decal, Fender 584904601 Decal, Deck/Deflect Warning 581579001...
- Page 19 TRACTOR - - MODEL NUMBER 944.604350 BRIGGS & STRATTON ENGINE - - MODEL NUMBER 44S777, TYPE NUMBER 0013-G1 48 SHORT BLOCK 1036 EMISSIONS L ABEL 1058 OPERATOR’S MANUAL 1329 REPLACEMENT ENGINE 1330 REPAIR MANUAL 121 CARBURETOR OVERHAUL KIT 358 ENGINE GASKET SET...
- Page 20 TRACTOR - - MODEL NUMBER 944.604350 BRIGGS & STRATTON ENGINE - - MODEL NUMBER 44S777, TYPE NUMBER 0013-G1 1022 1029 1029A 1100 1023 1023A 1022 1022 1026 1026A 1022 1029 1029A 1100 305A 305B 307A 1040 306A 186B 186A 186B...
- Page 21 TRACTOR - - MODEL NUMBER 944.604350 BRIGGS & STRATTON ENGINE - - MODEL NUMBER 44S777, TYPE NUMBER 0013-G1 1169 1128 1051 1146 1124A 1126 1124 1090 1127 1059 1070 1119 1005 1012...
- Page 22 TRACTOR - - MODEL NUMBER 944.604350 BRIGGS & STRATTON ENGINE - - MODEL NUMBER 44S777, TYPE NUMBER 0013-G1 PART PART DESCRIPTION DESCRIPTION 591695 Cylinder Assembly 795985 Connector-Hose (Intake Mani 797673 Bushing/Seal Kit (Magneto fold) Side) 186A 799158 Connector-Hose (EVAP) 391086s...
- Page 23 TRACTOR - - MODEL NUMBER 944.604350 BRIGGS & STRATTON ENGINE - - MODEL NUMBER 44S777, TYPE NUMBER 0013-G1 PART PART DESCRIPTION DESCRIPTION 691029 Nut (Governor Control Lever) 1023A 499600 Cover-Rocker (Cylinder #2) 696541 Drive-Starter 1024 796220 Pump-Oil 692024 Clutch-Drive 1026 690981...
- Page 24 TRACTOR - - MODEL NUMBER 944.604350 TUFFTORQ TRANSAXLE - - MODEL NUMBER K57R ACTUAL PARTS MAY NOT APPEAR AS SHOWN 55 59...
- Page 25 TRACTOR - - MODEL NUMBER 944.604350 TUFFTORQ TRANSAXLE - - MODEL NUMBER K57R PART DESCRIPTION 532 41 43-95 Vent Valve 15 532 41 43-96 Magnet 532 41 43-98 Bypass Lever 532 41 43-99 Sealing Cap 30 532 41 44-01 O-Ring 1a P10a...
- Page 26 THIS PARAGRAPH SHALL NOT APPLY, BUT THE REMAINING PROVISIONS OF THIS DOCUMENT SHALL REMAIN VALID. SEARS retains the exclusive right to repair or replace the product or offer a full refund of the purchase price at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.
- Page 27 SERVICE NOTES...
