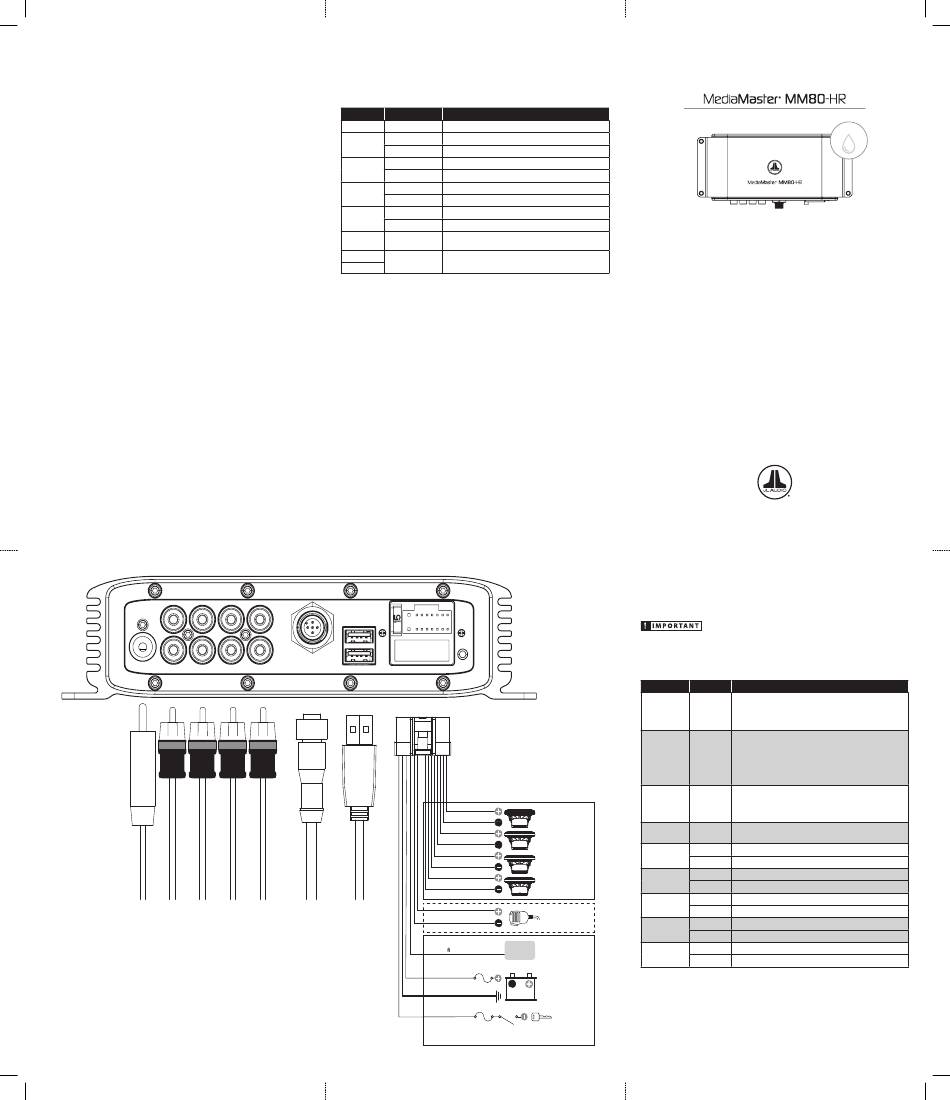

JL Audio MediaMaster MM80-HR Owner's Manual

What's Included
(1) MM80-HR
(1) Wire harness
(4) Stainless steel mounting screws
(1) NMEA 2000® drop cable (6.3 ft / 1.92 m)
(1) NMEA 2000® T-connector
(1) User manual

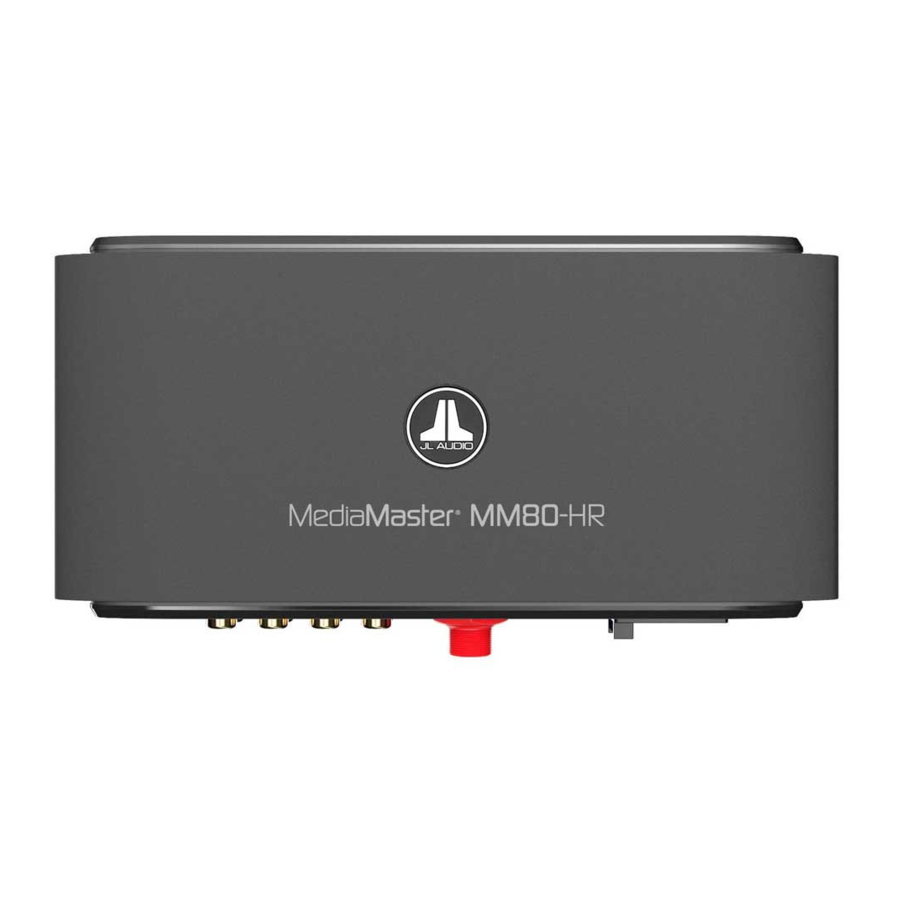

Product Description
The MM80-HR is a hideaway marine source unit designed for use with NMEA
2000® networks. Audio system control functionality is provided using compatible
multi-function displays (MFD) and can vary by MFD. Refer to your MFD
manufacturer for device compatibility information.
Installation Applications
This product is designed for operation with 12 volt, negative-ground electrical
systems. Using this product in systems with positive ground and/or voltages
other than 12V may result in damage to the product and will void the warranty.
This product is not certified or approved for use in aircraft.
Safety Considerations
• Install this product in a dry, well-ventilated location that does not interfere with
other vessel safety or electronic devices.
• While this product is designed to be water-resistant, it should never be
submerged under water or exposed to heavy spray/splashing.
• Do not mount this product in the engine compartment or in any areas of
extreme heat.
• Securely mount this product so that it does not come loose in the
event of a collision/sudden jolt or as a result of repeated vibrations during
normal operation.
• Check before drilling to make sure that you will not be drilling into an exterior
panel/hull, fuel tank, gas/brake line, wiring harness, or other vital system.
• Do not run system wiring outside or underneath the vessel. This is an extremely
dangerous practice, which can result in severe damage/injury.
• Protect all system wires from sharp edges (metal, fiberglass, etc.) by
carefully routing them, tying them down and using grommets and loom
where appropriate.
• Secure all wiring as needed, using cable ties or wire clamps to protect them
from moving parts and sharp edges.
Control Functions
Audio system control functionality of your MM80-HR is provided using
compatible multi-function displays (MFD) and can vary by MFD. Refer to your
MFD manufacturer for device compatibility information.
(L)
(R)
FM ANT
AUX IN 1 AUX IN 2 Zone 1 OUT Zone 3 OUT
Motorola® Style RCA Pair
Antenna AUX IN 2
RCA Pair
AUX IN 1 Zone 1 OUT
Panel Connections
Remaining connection points are designed to interface with audio equipment,
media devices and vessel networks. Depending on your specific equipment,
you may or may not use all of the connections. Carefully plan the layout of your
system prior to routing wires and making connections. Refer to the table below
for additional info.
Label Description
FM ANT Antenna
White RCA
AUX IN 1
Red RCA
White RCA
AUX IN 2
Red RCA
White RCA
Zone 1 OUT
Red RCA
White RCA
Zone 3 OUT
Red RCA
Red, 5-pin NMEA 2K
NMEA 2K
Micro-C Connector
USB (1)
USB Type-A
USB (2)
USB
(1)
(2)
NMEA 2K
RCA Pair NMEA 2000® USB Type A
Zone 3 OUT Network (2)
RCA Pair
Connection
Connect to Motorola® style antenna
Left Channel Signal Input / Auxiliary 1
Right Channel Signal Input / Auxiliary 1
Left Channel Signal Input / Auxiliary 2
Right Channel Signal Input / Auxiliary 2
Left Channel Signal Output / Zone 1
Right Channel Signal Output / Zone 1
Left Channel Signal Output / Zone 3
Right Channel Signal Output / Zone 3
Connect to NMEA 2000® network (LEN 1)
Connect to USB storage device or media player
PWR
Left
Left
Zone 1
Right
Speaker
Outputs
Left
Zone 2
Right
High-Level Input/
Mic Connection
Ampli er On Amp
Fuse
(not included)
Power +12V DC
+12V Power
Connections
Ground
Battery
Ignition +12V DC
Fuse
(not included)
OWNER'S MANUAL
Hideaway Marine Source Unit
Thank you for purchasing a JL Audio MediaMaster®
Source Unit for your sound system.
Your product has been designed and manufactured to exacting
standards in order to ensure years of musical enjoyment. For maximum
performance, we highly recommend that you have your MM80-HR
installed by an authorized JL Audio dealer. Your authorized dealer has
the training, expertise and installation equipment to ensure optimum
performance from this product. Due to the complexity of modern marine
electrical systems, we do not recommend self-installation unless you have
extensive experience in marine electrical systems. Should you decide to
install the amplifier yourself, please take the time to read this manual
thoroughly to familiarize yourself with its installation
requirements and setup procedures.
If you have any questions regarding the instructions in this manual or any
aspect of the product's operation, please contact your authorized
JL Audio dealer for assistance. If you need further assistance, please
contact the JL Audio Technical Support Department at
technical@jlaudio.com or call (954) 443–1100 during business hours.
Wiring Harness Connections
All connections are made along the lower end panel of the MM80-HR. The
14-pin plug with wire leads is used to make power and speaker related
connections. Carefully plan the layout of your system prior to routing wires and
making connections. Refer to the table below when making connections.
Disconnect the NEGATIVE battery post connection and secure
the disconnected cable to prevent accidental reconnection.
This is an essential safety precaution during installation!
Label Wire Color Connection
Connect to the positive (+12V) battery post. Always
install an appropriate fuse within 18 inches (45 cm) of
POWER
Red
+12V DC a +12V connection. If this is the only device using the
connection point, use a 15 amp fuse.
Connect to a switched positive (+12V) source. This can be
an ignition controlled, accessory circuit or a vessel battery
equipped with a main disconnect switch. Always install
IGNITION
Yellow
+12V DC an appropriate fuse within 18 inches (45 cm) of a +12V
connection. If this is the only device using the connection
point, use a 5 amp fuse.
Connect to a clean, solid metal grounding point or to the
NEGATIVE battery post. Ideally, the +12V DC and Ground
GROUND Black
connections of the source unit and amplifiers should be
made at the same location to minimize noise.
This wire provides a positive (+12V) turn-on voltage to
AMPLIFIER ON Blue/White
activate aftermarket amplifiers.
(+) Positive Front Left Speaker Output
White
ZONE 1
LEFT SPEAKER
(–) Negative Front Left Speaker Output
White/Black
Grey (+) Positive Front Right Speaker Output
ZONE 1
RIGHT SPEAKER
(–) Negative Front Right Speaker Output
Grey/Black
(+) Positive Rear Left Speaker Output
Green
ZONE 2
LEFT SPEAKER
Green/Black (–) Negative Rear Left Speaker Output
(+) Positive Rear Right Speaker Output
Purple
ZONE 2
RIGHT SPEAKER
(–) Negative Rear Right Speaker Output
Purple/Black
Brown (+) Positive High Level / MIC Input
HIGH LEVEL
INPUT
(–) Negative High Level / MIC Input
Brown/White
IPX2
WATER
RESISTANT
