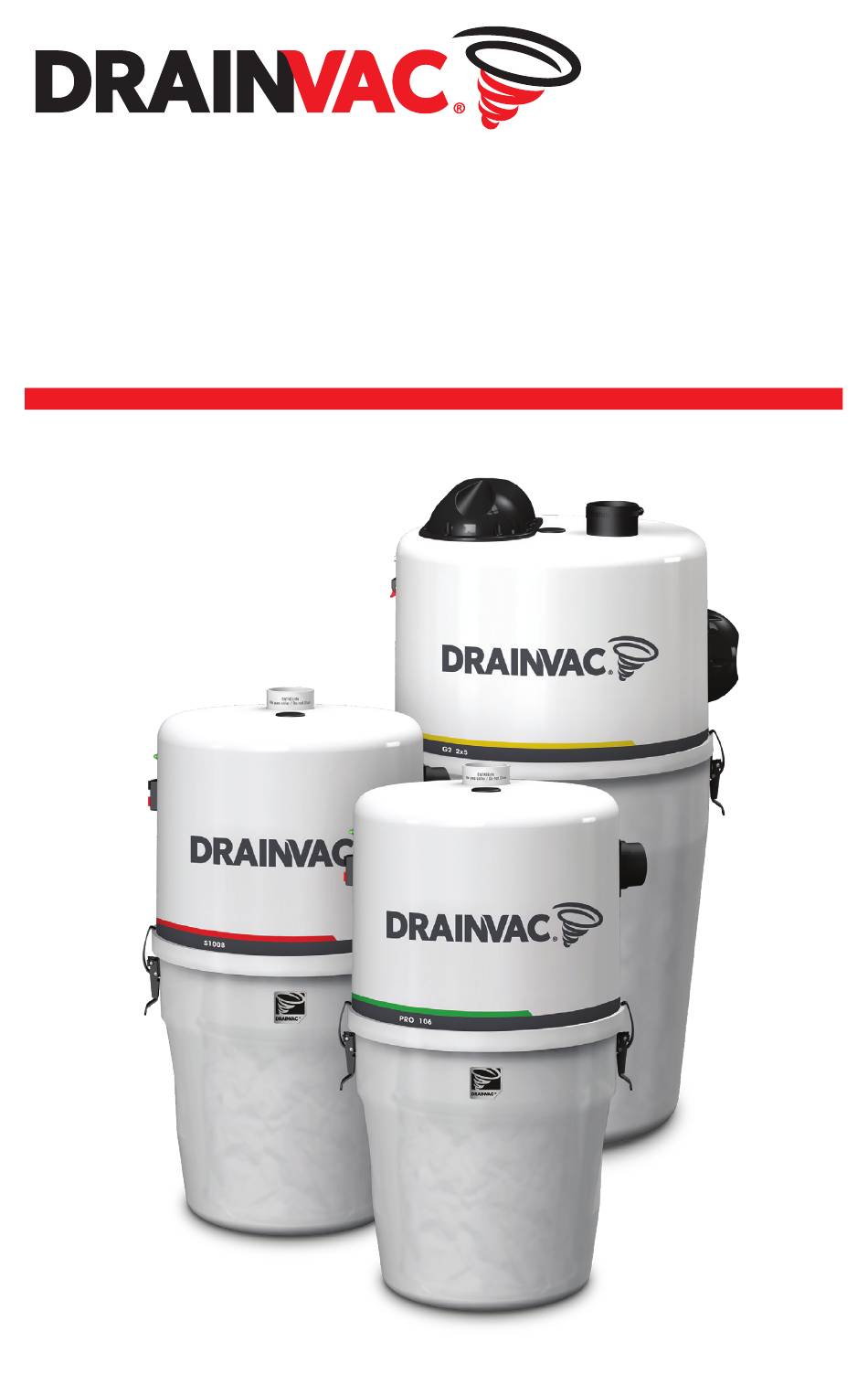

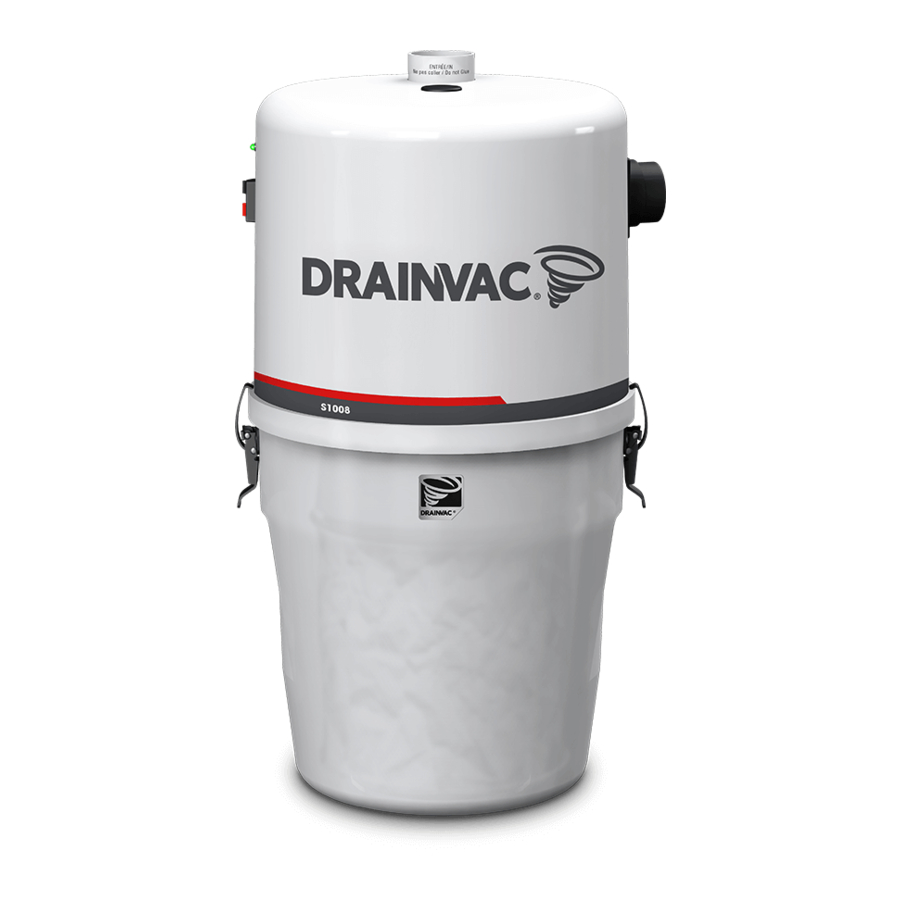

- Page 1 Cleaning Systems OWNER’S MANUAL COMPACT SERIES MAN.COMP.BI PRINTED IN CANADA (02-21)
- Page 2 Drainvac disclaims any responsibility should you infringe upon these guidelines. • Do not leave the unit running without any supervising. Disconnect the unit if it is not used and before maintenance.
-
Page 3: Table Of Contents
INTRODUCTION We wish to thank you for your trust and congratulate you for having chosen a Drainvac TYPES OF UNITS ............6-8 UNIT DESCRIPTION . - Page 4 TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS You have purchased one of the following models. Identify the one to related to it. The model number appears on the technical label stuck on the left side of the unit. PRO SERIES S1000 SERIES NORTH AMERICA (108V - 120V) NORTH AMERICA (108V - 120V) MODELS AIR WATTS...
-
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS UNIT DESCRIPTION 24V plug Power cord Plastic cage* Activac 3 Exhaust muffler Dust bag* Filter* GENERATION 2 SERIES Bucket* NORTH AMERICA (108V - 120V) MODELS AIR WATTS DECIBELS AMPS GAL. / L SIZE in / cm G2-007i-M G2-008 15 dia. -
Page 6: Dust Bags And Filters
OF A DUAL-MOTOR UNIT G2-007i-M, G2E-007i-M, G2-2X3-M, G2-2X5-M, G2E-2X5-M Every model of the compact series is designed to operate with a dust bag and a cage *Do not insert your hand in the metal cage while the unit is running. -
Page 7: Unit Installation
UNIT INSTALLATION UNIT INSTALLATION - FIRST THINGS FIRST - - FIRST THINGS FIRST - REQUIRED TOOLS WHERE TO INSTALL THE UNIT We recommend installing the system on the lowest level of the building to avoid having to work against gravity. Dust and solids will fall easier than being pulled upwards, this is why the basement is generally the most ideal location. -
Page 8: Mounting The Unit On The Wall
UNIT INSTALLATION UNIT INSTALLATION 1) MOUNTING THE UNIT ON THE WALL • Lift the head to slide its support onto the wall bracket. • Undo the fastener securing the wall bracket and base at the back of the unit with cutting pliers. Cut the fastener •... -
Page 9: Filter / Dust Bag
UNIT INSTALLATION UNIT INSTALLATION 5) AUDIOPROTEK MUFFLER - All units are supplied with an SMS filter and a dust bag (the filter is already preinstalled to the unit). TWO-MOTOR SERIES ONLY 3) FILTER Units including a two-motor system (such as G2-2X3-M, G2-2X5-M, G2E-2X5-M) are Using the clamps, disconnect the tank from the main unit. -
Page 10: Piping Installation
ACTIVAC 3 AND MUFFLER INSTALLATION PIPING INSTALLATION An Activac 3 filter and an exhaust muffler are included with the S1000 and G2 series. If The following pages illustrate piping diagrams, typical installations and the parts you have purchased the Pro series, they are sold separately. that we recommend for an optimum performance of your central vacuum system. -
Page 11: Diagram Of An Installation
PIPING INSTALLATION PIPING INSTALLATION DIAGRAM OF A RESIDENTIAL INSTALLATION DIFFERENT INSTALLATION POSSIBILITIES Main pipeline Exhaust pipeline On the top floor (at the end of a pipeline) On an intermediary floor On the first floor (connected above a pipeline under the floor) In the basement (connected under a pipeline under the floor) -
Page 12: Examples Of Proper And Improper Installations
PIPING INSTALLATION PIPING INSTALLATION EXAMPLES OF PROPER EXAMPLES OF PROPER AND IMPROPER INSTALLATIONS AND IMPROPER INSTALLATIONS Thick wall Thin wall For wall plates only Smooth joint without Joint with inside stoppers inside stoppers... -
Page 13: Electrical Power Supply
PIPING INSTALLATION ELECTRICAL POWER SUPPLY EXAMPLES OF PROPER An electrical cord is equipped to all central vacuum systems. An adequate electrical power outlet must be installed near the unit. We strongly recommend installing an AND IMPROPER INSTALLATIONS electrical circuit which will be used only for the unit. CONNECTION PROCEDURE •... -
Page 14: Diagram Of An Appropriate Connection
ELECTRICAL POWER SUPPLY ELECTRICAL POWER SUPPLY DIAGRAM OF AN APPROPRIATE CONNECTION GROUNDING INSTRUCTIONS These units must be grounded. If it should malfunction or breakdown, grounding All units used in North America has a circuit of 15 amp./120V, whereas the International provides a path of least resistance for electric current to reduce the risk of electric has a circuit of 10 amp./230V except for some exceptions : shock. -
Page 15: Maintenance Procedures
To find a retailer near you, please visit our website. 4. Place the new dust bag. 5. Reattach the tank to the main unit. Every model of the compact series is designed to operate with a dust bag and a cage filter. Improper use will void the warranty. -
Page 16: Technical Problems
• If the unit shuts down, the problem could be that two 24-volt wires are touching themselves somewhere or that the wall inlet is defective. • If the unit doesn’t shut down, the printed circuit is defective. Unplug the power cord. Drainvac International 150 Brunet Street, Mont-St-Hilaire, QC J3H 0M6, Canada...
