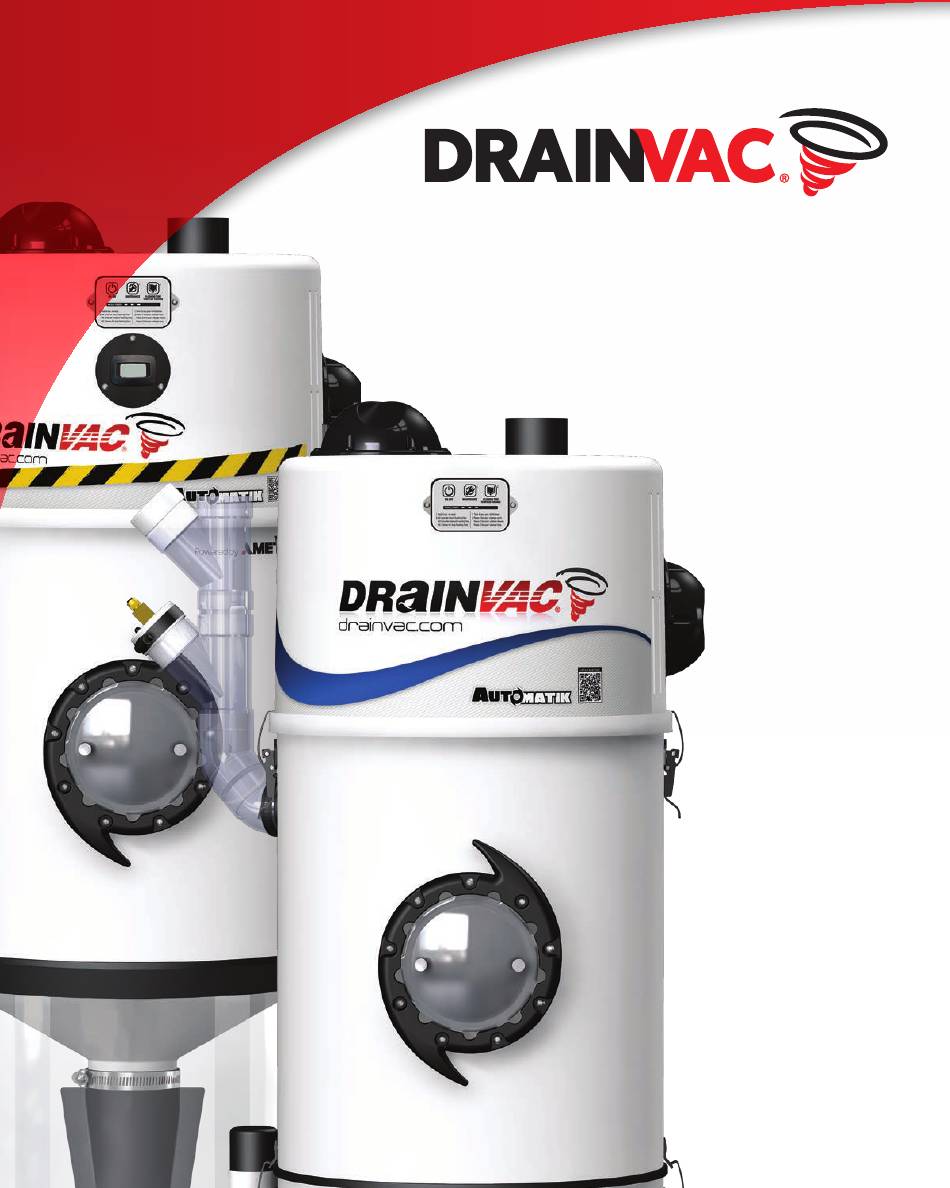

- Page 1 Central Vacuums OWNER’S MANUAL AUTOMATIK SERIES...
- Page 2 • Hoses with electrical connections must not be used if damaged. By overlooking safety rules, you might risk putting your health in danger and to those who surround you! Drainvac International disclaims any responsibility should you infringe upon these guidelines. SAVE THESE INSTRUCTIONS...
-
Page 3: Table Of Contents
HOW THE SYSTEM WORKS We wish to thank you for your trust and congratulate you for having chosen a Drainvac product. It is a sound investment that will satisfy your vacuuming needs for years to come. The concept of Drainvac’s Automatik OPERATION SEQUENCE . -
Page 4: How The System Works
HOW THE SYSTEM WORKS HOW THE SYSTEM WORKS Drainvac Automatik central systems are designed to vacuum both solids and liquids. The canister never The sensitivity of the electrodes can be modified by the printed circuit board. needs to be emptied manually since the wastewater is automatically evacuated through the building’s See Annex for more information. -
Page 5: Startup / General Information / Liquid Pick-Ups
HOW TO USE THE SYSTEM HOW TO USE THE SYSTEM STARTUP BEFORE STORING AWAY As you connect the hose to the wall inlet or manually turn on the unit, the Automatik system starts up in a Cleaning wet surfaces dirties the inside of the hose. progressive manner. - Page 6 TYPE OF UNITS BOOSTER HEAD OPTION TECHNICAL SPECIFICATIONS Booster heads are also available on certain models to add extra power to your unit. NORTH AMERICA (108V - 120V) MODELS AIRWATTS CFM dB MOTOR AMPS CAPACITY FLOW RATE / MIN. DIMENSIONS (in/cm) DV1A150 0.3 gal.
-
Page 7: Decanter Configuration
DECANTER CONFIGURATION SPLIT HEAD OPTION DECANTER BENEFITS SPLIT HEAD BENEFITS • Facilitates maintenance. • Allows to position the motor in a different room for less noise. • To remove oversized materials or an accumulation of hair, paper, etc. • In case of insufficient space in height, the head may be positioned at the funnel height. •... -
Page 8: Unit Description
UNIT DESCRIPTION UNIT DESCRIPTION Va cu um pi pe pp ly C ol d w at er su Audioprotek Va cu um pi pe pp ly C ol d w at er su muffler Audioprotek muffler e n t O u td o o r v Dust entry e n t O u td o o r v... -
Page 9: Dv2A310, Df2A310
UNIT DESCRIPTION UNIT DESCRIPTION Va cu um pi pe O ut do or ve nt Va cu um pi pe pp ly C ol d w at er su Audioprotek Audioprotek muffler pp ly C ol d w at er su muffler Audioprotek muffler... -
Page 10: Dv2A31-27, Df2A31, Dv2A313, Df2A313
UNIT DESCRIPTION UNIT DESCRIPTION Audioprotek muffler Ou tdo or ve nt 24V plug 2 motor booster head Va cu um pi pe O ut do or ve nt Audioprotek Audioprotek muffler muffler Power cord* su p p ly C o ld w a te r Audioprotek muffler O ut do or ve nt su p p ly... -
Page 11: Dv2A32-27 / Df2A32 Series Configuration
UNIT DESCRIPTION UNIT DESCRIPTION Audioprotek muffler O u td o o r ve n Audioprotek muffler O u td o o r ve n 24V plug Audioprotek muffler 24V plug Audioprotek muffler 2 motor booster head Power cord 2 motor booster head Va cu um pi pe Power cord O ut do or ve nt... -
Page 12: Dvdc40 / Dfdc40 Series Configuration
UNIT DESCRIPTION UNIT DESCRIPTION Audioprotek muffler One motor booster head 24V plug Audioprotek muffler O ut do or ve nt Power cord 24V plug Power cord O u td o o r ve n Audioprotek muffler V ac uu m pi pe One motor booster head V a cu u m p ip su p p ly... -
Page 13: How The Membrane Works
2.25” (57 mm) Hit 3 times for long flushing time. Pesez 3 fois pour vidange long. the unit should be taken to a Drainvac retailer to be examined. Maintenance should only be reset by a qualified Drainvac technician. FLUSHING TIME •... -
Page 14: First Things First
INSTALLING THE UNIT INSTALLING THE UNIT FIRST THINGS FIRST - STEP SEQUENCE - WHERE WILL YOU INSTALL THE UNIT? MINIMUM DIMENSIONS AND SPACING We recommend installing the system on the lowest level of the building to avoid having to work against It is important to install the unit in a location where it will be easily accessible for maintenance and to gravity. -
Page 15: Step Sequence
INSTALLING THE UNIT INSTALLING THE UNIT STEP SEQUENCE - STEP SEQUENCE - 1) MOUNTING THE UNIT ON THE WALL If your Automatik system has a separated funnel, we suggest mounting it before the main body. • Lift the unit and slide its support onto the wall bracket. The illustrations will be shown with a standard unit but the step sequence remains the same. - Page 16 INSTALLING THE UNIT INSTALLING THE UNIT STEP SEQUENCE - STEP SEQUENCE - 2) CONNECT THE DUST AND WATER INLETS POSITIONING THE WATER INJECTORS ON THE DUST INLET • Connect the building’s cold water supply to the unit’s water inlet. Some units are equipped with two water injectors. In this case, it is important that they be positioned facing each other so that the water covers a greater surface.
- Page 17 INSTALLING THE UNIT INSTALLING THE UNIT STEP SEQUENCE - STEP SEQUENCE - 4) CONNECT THE AIR OUTLET STEEL MUFFLER Air Outlet • Connect the air outlet to the unit, securing it with a • Some units are equipped with a steel clamp (do not glue).
-
Page 18: General Information
INSTALLING THE UNIT INSTALLING THE UNIT STEP SEQUENCE - STEP SEQUENCE - PLACE THE SKIRT The following pages illustrate piping diagrams, typical installations and the parts that we recommend for the optimum performance of your central vacuum system. • The anti-splatter skirt caries 2 pieces; one GENERAL INFORMATION which generally stays put onto the main body and a second that serves as a door. -
Page 19: Different Installation Possibilities (Residential And Commercial Installation)
INSTALLING THE PIPING SYSTEM INSTALLING THE PIPING SYSTEM DIAGRAM OF A RESIDENTIAL INSTALLATION DIAGRAM OF A COMMERCIAL INSTALLATION Installation example in series Through the ceiling Always have a slight inclination of the piping towards the unit. Under the floor Always have a slight inclination of the piping towards the unit. DIFFERENT INSTALLATION POSSIBILITIES On the top floor On an intermediary floor... -
Page 20: From Dry To Wet
INSTALLING THE PIPING SYSTEM INSTALLING THE PIPING SYSTEM FROM DRY TO WET EXAMPLES OF PROPER AND IMPROPER INSTALLATIONS If you wish to replace your conventional (dry) vacuum to an Automatik system, please follow the instructions below. • The Automatik system must be installed near the sanitary sewer. If your previous unit was placed at one end of the building, but the sewer is at the other end, the unit must be reinstalled at a closer range of the main drain and the pipeline must change its direction as well (Figure E). - Page 21 INSTALLING THE PIPING SYSTEM INSTALLING THE PIPING SYSTEM EXAMPLES OF PROPER AND IMPROPER INSTALLATIONS EXAMPLES OF PROPER AND IMPROPER INSTALLATIONS...
-
Page 22: Electrical Power Supply
ELECTRICAL POWER SUPPLY ELECTRICAL POWER SUPPLY All of the central vacuum system models in this manual are equipped with an electrical cord. An adequately DIAGRAMS OF AN APPROPRIATE CONNECTION powered electrical outlet must be installed near the unit. A dedicated electrical circuit must be used for If you experience voltage surge problems on your electrical circuit in spite of adequate connections, a high the unit and one for each booster head. -
Page 23: Grounding Instructions
ELECTRICAL POWER SUPPLY ELECTRICAL POWER SUPPLY GROUNDING INSTRUCTIONS Electrical Panel These units must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. -
Page 24: Maintenance Procedures
MAINTENANCE PROCEDURES MAINTENANCE PROCEDURES DECANTER OPTION VISUAL INSPECTION • For residential applications: check and empty the decanter monthly Your Automatik system is very user-friendly and we recommend a visual inspection through the porthole or after cleaning big amounts of fur, hair or any big objects. once a year or when needed. -
Page 25: Technical Problems / Support
• If the unit doesn’t shut down, the printed circuit is defective. Unplug the power cord. SUPPORT If you wish to speak with a customer service representative, please contact your supplier/dealer. To find a retailer near you, please visit our website: www.drainvac.com/ca/en/retailers/find-a-retailer/ Drainvac International 150 Brunet Street, Mont-St-Hilaire, QC, Canada, J3H 0M6... - Page 27 Central Vacuums...
