Summary of Contents for IB RUBINETTI AQUABEAT SMALL

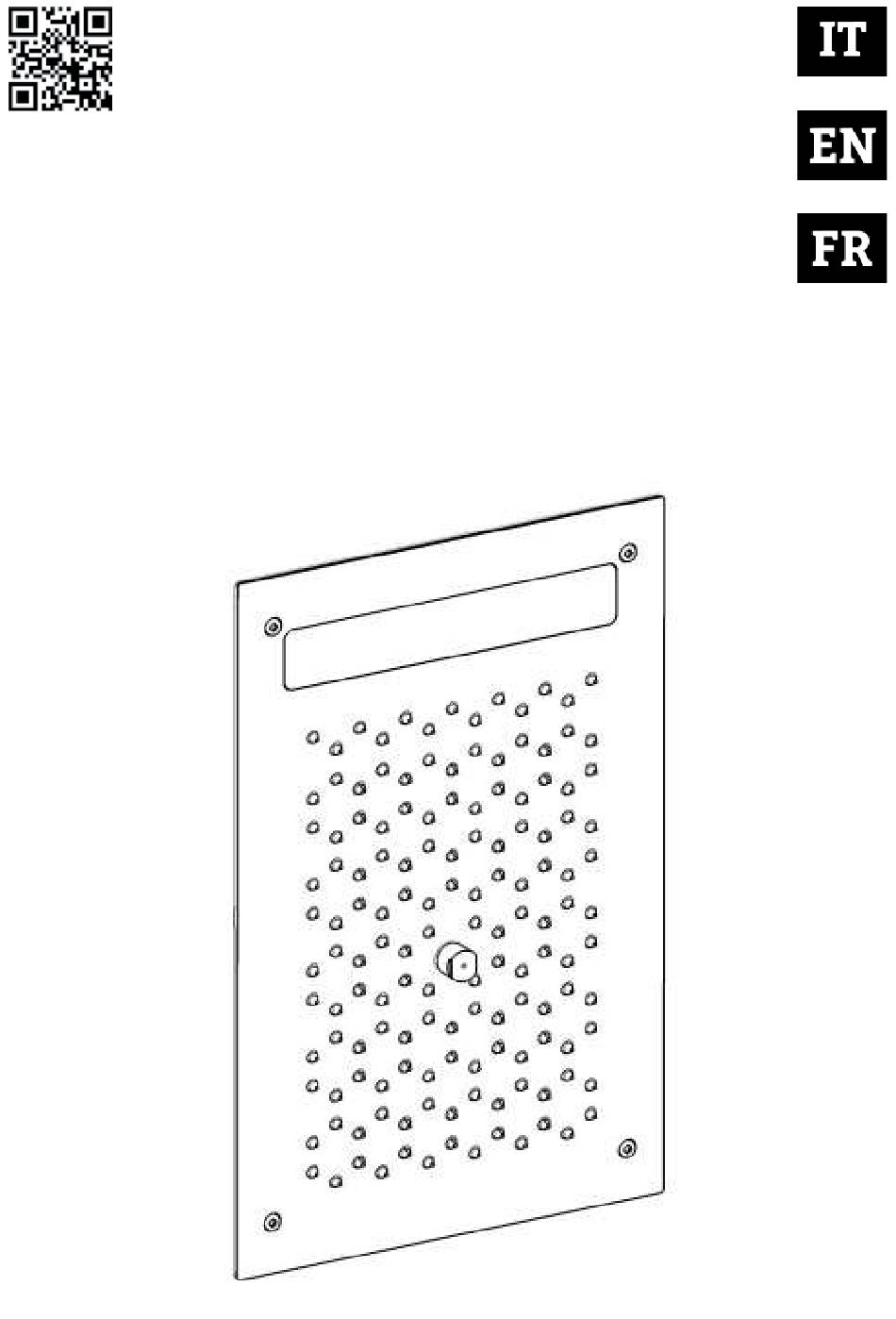

- Page 1 ISTRUZIONI DI MONTAGGIO FITTING INSTRUCTIONS NOTICE DE MONTAGE AQUABEAT SMALL...
- Page 3 Esempio di configurazione Configuration sample only Exemple de configuration...
-
Page 4: Dati Tecnici
DATI TECNICI Pressione dinamica min:__________________________________________________________________0.5 bar Pressione MAX di esercizio:_________________________________________________________________5 bar Pressione di esercizio raccomandata:_____________________________________________________1-5 bar Si raccomanda di utilizzare un riduttore di pressione, se all’interno dell’impianto si hanno pressioni statiche superiori a 5 bar. Temperatura MAX acqua calda:_____________________________________________________________80°C Funzione due spruzzi: ___________________________________________________pioggia e nebulizzazione Cromoterapia:__________________________________________________________________________led (RGB) Raccordo G1/2”... -
Page 5: Technical Data
TECHNICAL DATA Minimum dynamic pressure:______________________________________________________________0.5 bar Maximum operational pressure:_____________________________________________________________5 bar Recommended operational pressure:______________________________________________________1-5 bar It’s recommended to use a pressure reducer in case of static pressure superior than 5 bar inside the waterpipe. Maximum hot water temperature:___________________________________________________________80°C Two spray function:_____________________________________________________________________rain, mist Chromotherapy:________________________________________________________________________led (RGB) Connection G1/2”... -
Page 6: Caracteristiques Techniques
CARACTERISTIQUES TECHNIQUES Pression dynamique minimale:__________________________________________________________________0.5 bar Pression de service maximale:_____________________________________________________________________5 bar Pression d’exercice recommandée:______________________________________________________________1-5 bar Il est recommandé d’utiliser un réducteur de pression en cas, dans le système hydraulique, il y a des pressions statiques supérieures à 5 bar. Temperature maximum d’eau chaude:_____________________________________________________________80°C Double fonction:____________________________________________________________________pluie et nébulisation Chromothérapie:______________________________________________________________________________led (RGB) Raccord a visser G1/2”... - Page 7 INSTALLAZIONE A SOFFITTO Fig. 2 CEILING INSTALLATION INSTALLATION AU PLAFOND Fig. 1 Fig. 3 Fig. 4...
- Page 8 Fig. 5 Fig. 6 Fig. 7...
-
Page 9: Installazione A Muro
INSTALLAZIONE A MURO Fig. 1: Realizzare un alloggiamento nel muro per installare il carter di montaggio. Dimensione alloggiamento: 285mm x 185 mm - 11.22 in x 7.28 in. Profondità alloggiamento 100 mm - 3.93 in Fig. 2: Predisporre 4 fori, Ø10, nell’alloggiamento con un interasse di 160 mm - 6.29 in, utilizzando la dima in dotazione. -
Page 10: Installation Au Mur
INSTALLATION AU MUR Fig. 1: créer l’emplacement de l’encastrement dans le mur à installer le châssis de montage. Taille emplacement: 285 mm x 185 mm - 11.22 in x 7.28 in. Profondeur emplacement: 100 mm - 3,93 in. Fig. 2: Réaliser 4 trous, Ø 10, dans l’emplacement avec un empattement de 100 mm - 6.29 in en utili- sant la gabarit fournie. - Page 11 Fig. 1 Fig. 2 Fig. 3 Fig. 4...
- Page 12 Fig. 5 Fig. 6 Fig. 8...
- Page 15 Collegamento centralina Control unit connection Connexion de l’unité de contrôle IB rubinetti consiglia di non scollegare i cavi se non strattamente necessario. In caso ricollegarli esat- tamente come prima. In caso di errore i led non funzioneranno.
- Page 16 Rev.: 30/09/2020...
