Mora Armatur
Box 480
SE-792 27 MORA
SWEDEN
www.moraarmatur.com
A
C
90%
100%
3

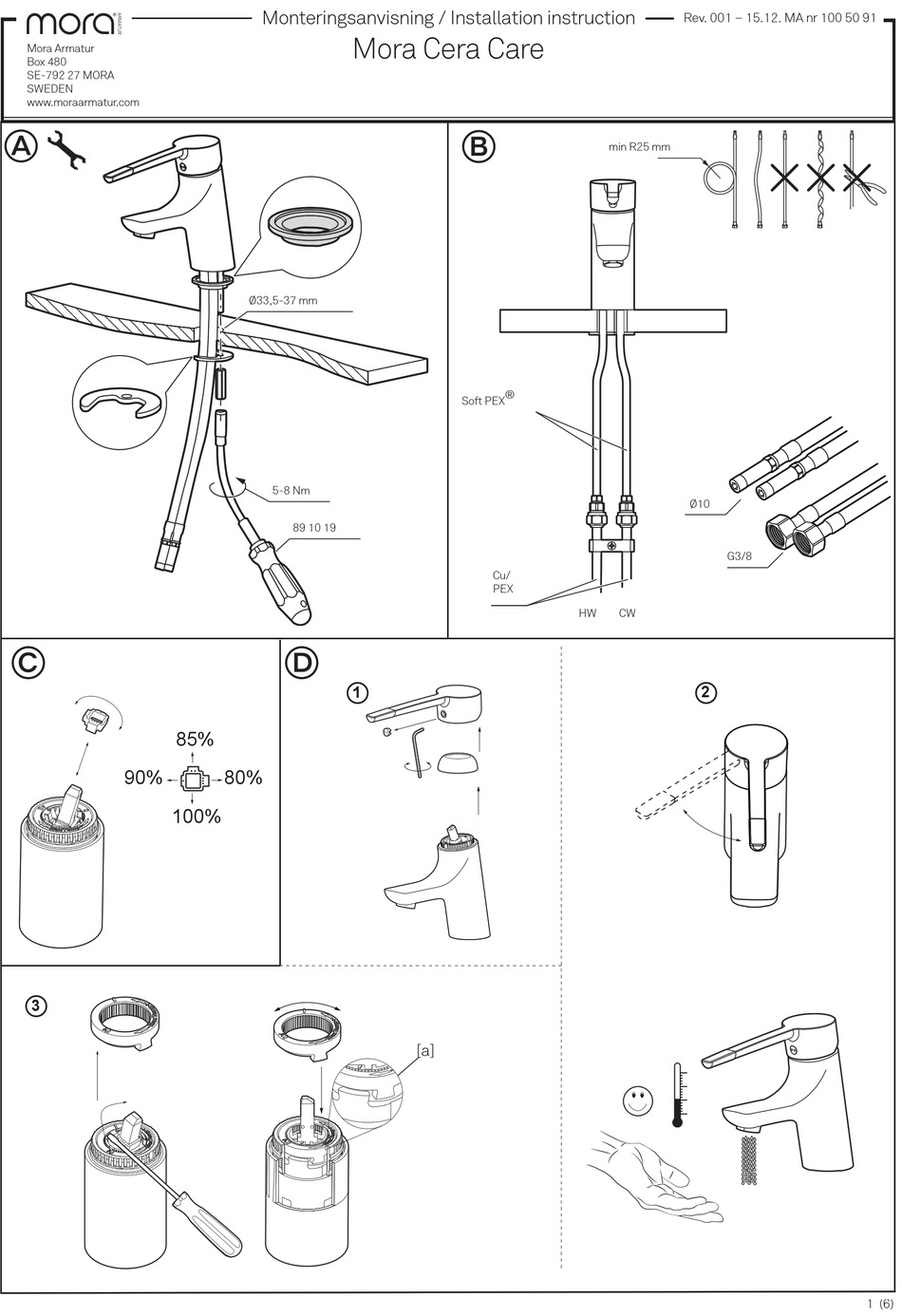

Monteringsanvisning / Installation instruction
Ø33,5-37 mm
5-8 Nm
89 10 19
D
85%
80%
Mora Cera Care
B
®
Soft PEX
Cu/
PEX
1
[a]
Rev. 001 – 15.12. MA nr 100 50 91
min R25 mm
Ø10
G3/8
HW
CW
2
1 (6)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mora armatur Cera Care
Summary of Contents for Mora armatur Cera Care
- Page 1 Monteringsanvisning / Installation instruction Rev. 001 – 15.12. MA nr 100 50 91 Mora Cera Care Mora Armatur Box 480 SE-792 27 MORA SWEDEN www.moraarmatur.com min R25 mm Ø33,5-37 mm ® Soft PEX 5-8 Nm Ø10 89 10 19 G3/8...
- Page 2 Monteringsanvisning / Installation instruction Rev. 001 – 15.12. MA nr 100 50 91 Mora Cera Care Mora Armatur Box 480 SE-792 27 MORA SWEDEN www.moraarmatur.com 10-12 Nm 2 (6)
- Page 3 Monteringsanvisning / Installation instruction Rev. 001 – 15.12. MA nr 100 50 91 Mora Cera Care 40 93 90.AE 40 93 92.AE 40 93 91.AE 89 10 96.AE 40 93 93.AE 40 94 03.AE 40 93 87.AE 40 96 01.AE 0°C...
- Page 4 Bytt keramikkinnsatsen. Steng først av innkommende vann. Utfør i rekkefølge F1-4. Byttet krever Mora Armatur spesialverktøy (MA nr. 891096.AE). Bytt hele keramikkinnsatsen. Ved A Montering av blandebatteri behov rengjør setet der keramikkinnsatsens tre pakninger tetter. OBS! Unngå å lage riper i Monter blandebatteriet som vist på...
- Page 5 Replace the ceramic cartridge. First turn off the incoming water supply. Perform steps connected. F1-4. Perform this step using an Mora Armatur servicing tool (MA nr. 891096.AE). Replace the whole ceramic cartridge. If necessary, clean the site where the three gaskets A Connection of mixer in the ceramic cartridge act as a seal against the mixer body.
- Page 6 Laat de mengkraan open staan. De mengkraan kan eventueel gedemonte- E Slechte stroom. erd worden en in een verwarmde ruimte bewaard worden. Vuil in de perlator: Draai de perlator los met speciaal gereedschap van Mora Armatur (Art. nr. 891096.AE) en maak de inzet schoon. Monteren/instellen Wij bevelen aan dat u een erkend installatiebedrijf raadpleegt.
