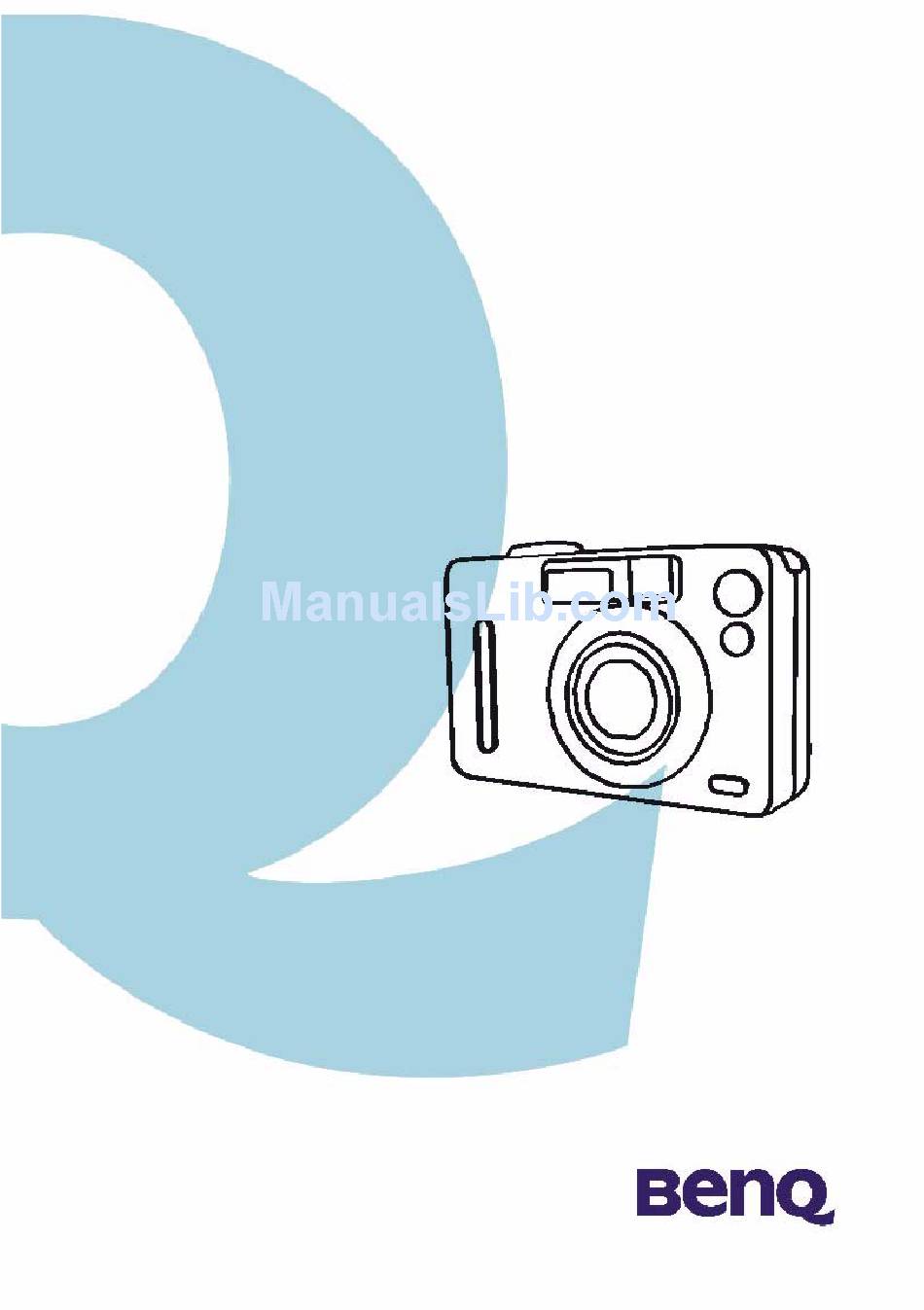

- Page 1 DC 5330 User’s Manual...
-
Page 2: Taking Care Of Your Camera
Disclaimer BenQ makes no warranty of any kind with regard to this material, including, but not lim- ited to, the implied warranties of merchantability and fitness for a particular purpose. BenQ assumes no responsibility for any error that may appear in this document. BenQ makes no commitment to update nor to keep current the information contained in this document. -
Page 3: Table Of Contents
BenQ DC 5330 Table of Contents 1. Touring your DC 5330 ... 1 1.1. Checking package contents ...1 1.2. Parts of the DC 5330 and their names ...1 1.2.1. Front View ...1 1.2.2. Rear View ...2 1.2.3. Top View ...2 1.2.4. - Page 4 BenQ DC 5330 Table of Contents 5. Troubleshooting (Error Message Table) ..20 6. Specifications ...21 7. Service information ...23...
-
Page 5: Touring Your Dc 5330
1.1. Checking package contents The package should include the following items: DC 5330 digital camera DC 5330 software CD-ROM Battery 1.2. Parts of the DC 5330 and their names 1.2.1. Front View Shutter Button Mode Dial Handstrap Hook Hand Stop... -
Page 6: Rear View
BenQ DC 5330 User’s Manual 1.2.2. Rear View Power/Flash LED Viewfinder TFT LCD Monitor 1.2.3. Top View 1.2.4. Bottom View Battery & SD Card Compartment 1.2.5. Mode Dial and Focus Range Mode Dial Use only the specified battery or AC power adapter specified (5V 2A) for use with this camera. -
Page 7: Preparing Your Dc 5330 For Using
BenQ DC 5330 User’s Manual 2. P REPARING YOUR 2.1. How to Switch On or Switch Off The Camera 1. Locate the power button on top of the camera. 2. Press the power button down to turn the camera ON or OFF. -
Page 8: Basic Settings
5. Camera will draw power from DC-in when used with the AC-Adapter. 2.3. Basic Settings: Upon turning the camera ON, a "BenQ logo" will appear on the LCD display. Turn the mode dial to the DSC Setup Mode. Please proceed with the following settings: Language Preference Setting There are a total of nine languages to choose from to interact with this camera. -
Page 9: Using The Dc 5330
BenQ DC 5330 User’s Manual 3. U DC 5330 SING THE This section describes the five modes included in this camera. An in-depth coverage of these modes will be further described. Here are the five main functions of this camera:... -
Page 10: Working Mode
BenQ DC 5330 User’s Manual Working Mode 3.1.Video Mode Video Mode allows you to use the camera as a movie recorder, and set the self-timer for recording purpose. Video Mode Zoom Bar * The icons can be removed from the display by pressing the menu button once. -
Page 11: Capture Mode
BenQ DC 5330 User’s Manual 3.2. Capture Mode Capture mode will allow you to shoot single and continuous images, set your flash and self-timer. Depending on the environment and setting, the camera’s settings will work accordingly. To exit the setting menu, simply press the menu button. - Page 12 BenQ DC 5330 User’s Manual Zooming In/Out This camera has 4 x digital zoom. The zoom bar located on the left side of the LCD display, informs users of the zoom status while the zoom in or out button is pressed.
-
Page 13: Flash Setting
BenQ DC 5330 User’s Manual 3.2.2. FLASH Setting To set the Flash, press the Five-Way Switch to the Left to select the desired Flash setting. You will have the four types of Flash settings: Flash Off, Auto Red-eye reduction, Flash Force On, and Night. Once you’ve set your Flash setting, proceed with your picture taking. -
Page 14: Capture Mode Setup
BenQ DC 5330 User’s Manual 3.2.5. Capture Mode Setup 1. Turn the mode dial to Capture Mode. 2. To enter/exit Capture Mode Setup, press the menu button. 3. Once you are in the Capture Mode Setup, you will be able to adjust the following settings. - Page 15 BenQ DC 5330 User’s Manual White Balance Sharpness EV Adjust Scene Users can select the following white balance: Auto Shade Tungsten Fluorescent Users can select the following sharpness: Normal High Users can select the following EV adjust: from EV+2.0~ toEV -2.0, in EV 0.5 step increase...
-
Page 16: Playback Mode
BenQ DC 5330 User’s Manual The Memory Capacity will be changed according to the resolution and image quality you set, please refer to below table for the relative numbers, which will be changed a little in different photo backgrounds. Resolution (based on 16 MB memory) 2720 x 2040 (5.5M) -
Page 17: Displaying Thumbnails
BenQ DC 5330 User’s Manual 1. The icon information can be removed by pressing the menu button once. 2. Thumbnail can be viewed after the display button twice. 3. To turn off the LCD, press the display button three times. -
Page 18: Macro Mode
BenQ DC 5330 User’s Manual Digital Print Order Format or DPOF Voice Memo 3.4. Macro Mode Macro mode is best used for taking close-up images with franges from 15-50 cm. White Balance Flash Macro Mode Remaining Number... -
Page 19: Dsc Setup Mode
BenQ DC 5330 User’s Manual 3.5. Dsc Setup Mode Under this mode, you will be able to set your desired settings. There are a total of eight different settings. Auto Power Off Date and Time Slide Show Order 1. - Page 20 BenQ DC 5330 User’s Manual Slide Show Sound Effect Languages TV-Out Restoring Users can select the: Under this setting, users can set the number of sec- Interval onds they want the slide Repeat show to proceed per slide, Direction repeat the show or not,...
-
Page 21: Pc Dependent Features
PC. 4.1. Installing digital camera software • If your operation system is Windows 98, please setup the DC 5330 driver first, if the operation system is Windows ME/2000/XP, then it's not necessary for you to setup driver in advance. -
Page 22: The Software Of This Installation Cd
Adobe Acrobat Reader, it's a "must have" utility to read files in the popular cross-platform file format "PDF". BenQ Q-link, for your smart photo downloads, printout , edit function and share via email with others,for photos folders management and could also slide show photos on screen. -
Page 23: Downloading The Image(S)
BenQ DC 5330 User’s Manual 4.3. Downloading the Image(s) Under Windows Operating System (Windows 98/98SE/2000/ME/XP) Downloading Image(s) From Removable Disk 1. Turn on the PC. 2. Switch on the camera. 3. Connect the camera to the PC with USB cable under any working mode. -
Page 24: Troubleshooting
BenQ DC 5330 User’s Manual 5. T ROUBLESHOOTING Symptoms The power won’t turn on. The power turns off during use. The battery power is draining quickly. The camera does not take pic- tures when the shutter button is pressed . -
Page 25: Specifications
BenQ DC 5330 User’s Manual The camera cannot download images to the PC. 6. S PECIFICATIONS Image Sensor Lens Digital Zoom Viewfinder LCD Monitor Focusing Focusing Range Shutter Shutter Speed Exposure ISO Equivalent White Balance Flash • Cable is not connected properly. -
Page 26: System Requirments
BenQ DC 5330 User’s Manual Flash Range Self-timer Movie Clips Storage File Format Image size Image Play Interface Power Source Dimensions (WxHxD) Weight FOR WINDOWS 0.5 ~ 2.5m 10 seconds with LED indicator Size : 320x240 with sound Recording time : Manual (unlimited length) Internal memory: 16MB flash memory;... -
Page 27: Technical Support
ERVICE INFORMATION Technical support If you encountered problems using DC 5330 and the camera driver program, please send an E- mail (containing detailed descriptions of the problem you came upon, the hardware and software environment of your system) to the following addresses: Europe: service@BenQ-eu.com... - Page 28 BenQ DC 5330 User’s Manual <Memo>...
